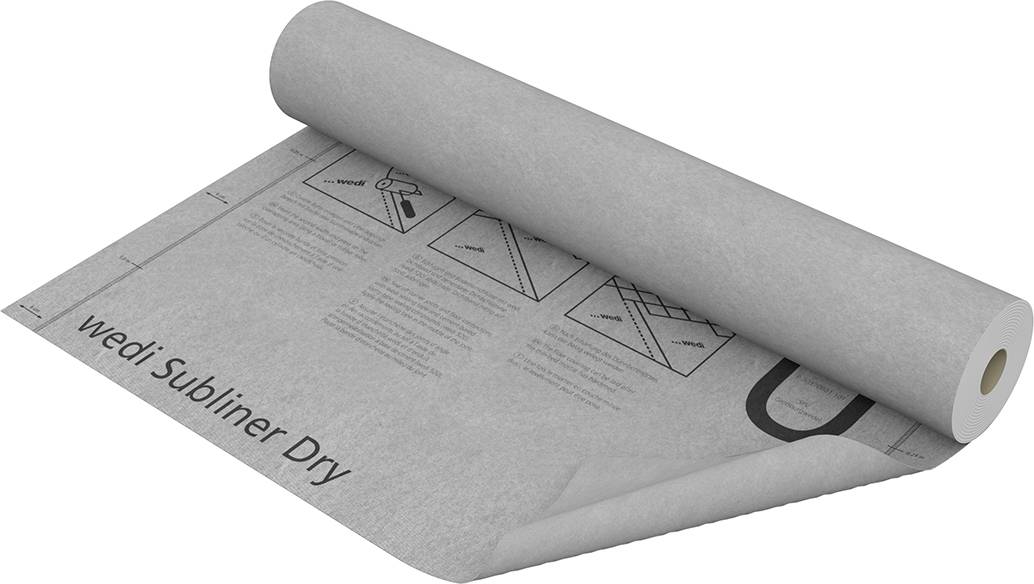

wedi Subliner Dry tanking membrane - Fabric Tanking Membrane
Verified by manufacturer 6 months ago
095110332
095110332
BBA Agrément Certificate
Certificate type
Waterproof sealing mat membrane for indoor walls and floors.
Application
- For moderately humid rooms of humidity class 0, A01, A02 acc. to ZDB data sheet such as domestic and hotel bathrooms.
- Approved for heavy duty wet areas in stress classes A1, A2 and C such as shower facilities, areas around swimming pools, commercial kitchens and laundries.
Description
Thin-layer, crack-bridging sealing web manufactured from highly tear-resistant polyethylene film, which offers optimum connection to tile laying materials thanks to its dual-sided special fleece lamination. For quick sealing measures for fixed-date building sites in combination with ceramic tiles and slabs as well as with natural cast tiles for indoor wall and floor areas.
Features and benefits:
- Alkaline resistant.
- Can be used with hot water underfloor heating.
- Easy processing.
- Flexible and crack bridging.
- High adhesive effect in combination with wedi laying materials.
- High tear resistance.
- Non-ageing and non-decomposable.
- Waterproof and water vapour retarding.
General information
Color | Grey |
Finish | Unfinished |
Material | Fleece Polyethylene |
Shape | Rectangle |
Length | 5000 mm 30000 mm |
Width | 1000 mm |
Height | 1 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | M40/10 Natural stone covering M40/110 Tiling M40/115 Natural stone covering M40/12 Mosaic M40/120 Mosaic M40/5 Tiling |
SKU Code | 095110332, 095110305 |
Product range |
Specification data - Plastics sheets
Classification data | |
Material | Dual-sided fleece-laminated polyethylene film. |
Performance characteristics | |
Fire performance | To DIN 4102-1, B2. |
Physical properties | |
Colour | Grey sheathed. |
Weight (minimum) | 298 g/m². |
Dimensions | |
Thickness (minimum) | 0.51 mm. |
Width (minimum) | 1 m. |
Roll length (minimum) | 30 m. |
Accessories | None. wedi Tools Sealing Tape. Guidance for specification option: Sealing tape consisting of a TPE-coated polypropylene fleece for the secure sealing of corner, connecting joints and intersections. |
Temperature limiter | -30°C to +90°C. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Product certifications
Literature
Literature type
2022 wedi World of Systems brochure
wedi at a glance 2022
wedi 520 Flexible Sealant TDS
wedi 610 Adhesive Sealant TDS
wedi sealing and decoupling brochure
