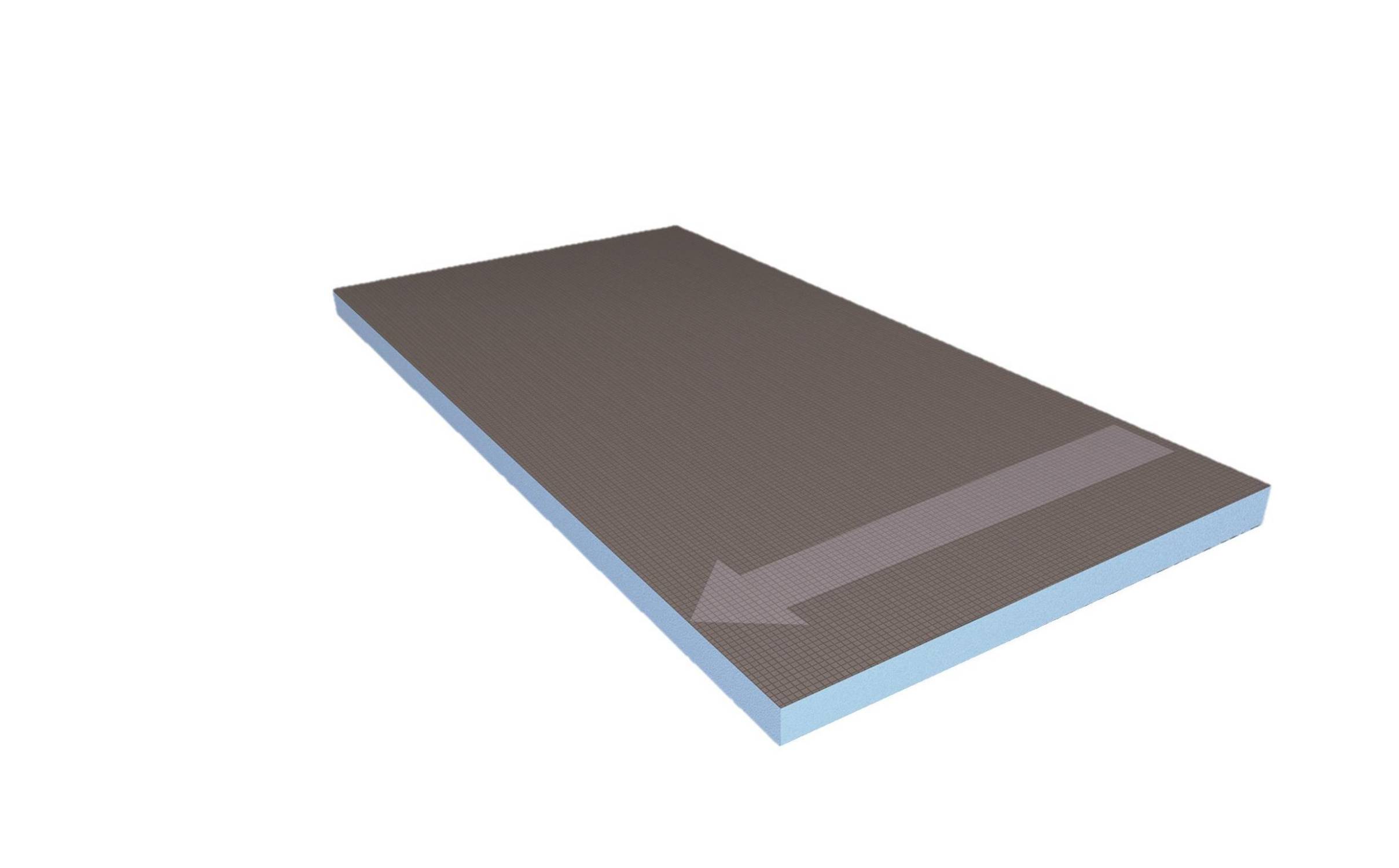

wedi Sloping Boards - wedge shaped XPS building board

Name: wedi Sloping Boards - wedge shaped XPS building board
Brand: Wedi Systems (UK) Ltd
SKU: 5vAu7tagg7XBFPHTEix34m

Verified by manufacturer 2 months ago

1250 x 600 x 4 mm.

Wedi Systems (UK) Ltd

Third party certifications:

BBA Agrément Certificate
Certificate type

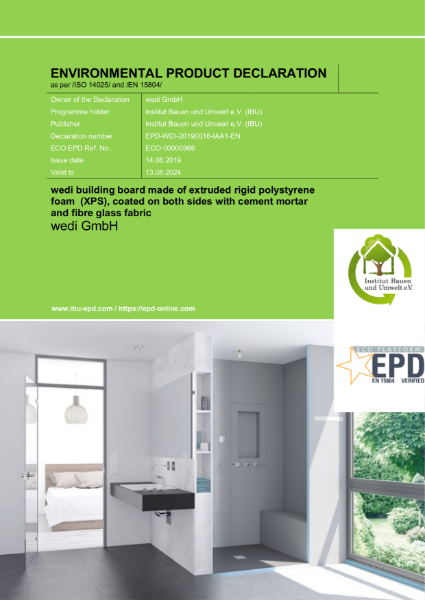

EPD
Certificate type

Building boards for walls, ceilings and floors, available in three sizes. Typically utilised for extending off-the-shelf shower tray products.

Jump to:

BOS

+44 (0)161 864 2336 Website

Application

The building boards have a wide variety of applications, including:

Carrier element for laying tiles, slabs and natural stone floor coverings using the thin-bed method.

Adhesive surface for applying plaster, tile adhesive and other materials.

For moisture protection and effective heat insulation.

Composite sealing with tile and slab coverings of load class A and B (directly loaded walls and floors in rooms in which tap or cleaning water is used very frequently or for long periods, walls and floors of indoor and outdoor pools that are filled with water with the properties of drinking water).

The building boards are approved for interior use in rooms at a normal temperature. Consult the manufacturer for application methods relating to special applications (swimming pools, cold stores, external areas, etc). They are approved for use on floors in rooms with an ordinary residential load. Wheeled loads with high concentrated loads are not permitted.

Description

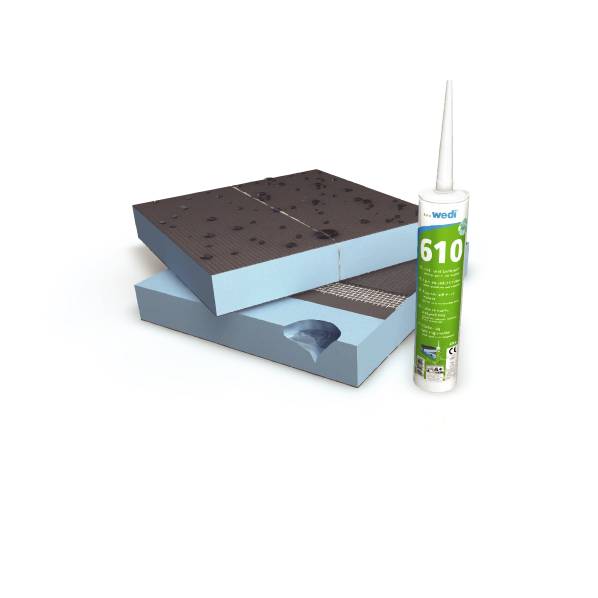

Waterproof and heat-insulating building boards for walls, ceilings and floors, available in three sizes. They consist of a blue core manufactured from extruded polystyrene rigid foam. The rigid form is reinforced with glass fibre (with alkali-resistant finish) on both sides and coated with a polymer-modified cement.

Features and benefits:

Waterproof.
Heat-insulating.
Versatile.
Lightweight.
Dimensionally stable and quick to process.
The boards can be fitted onto almost any surface.
CO²-foamed, extruded polystyrene rigid foam with closed cell structure and flame-retardant additive is hydrochlorofluorocarbon (HCFC) and chlorofluorocarbon (CFC) free.
CE marked.
A+ rating in relation to Emissions Dans L'air Interieur.

General information

Color	Blue Grey
Finish	Cement Unfinished
Material	High density extruded polystyrene (XPS)
Shape	Rectangle
Length	1200 mm Bespoke
Width	600 mm Bespoke
Height	46 mm 52 mm 60 mm Bespoke
Warranty description	Ten year

Uniclass	Pr_25_71_63_29 Extruded polystyrene (XPS) boardsPrimary
CAWS	N13/375 Shower units N13/40 Shower units

Product range	Shower Systems / Sloping Boards Tile Backer Boards / Sloping Boards

Specification data - Extruded polystyrene (XPS) boards

Fire performance	To EN 13501, Class E.
Compressive strength (minimum) at 10% compression	To EN 826, 0.25 N/mm².
Thermal conductivity (maximum)	To EN 13164, 0.036 W/mK.
Thickness	4 mm.
Face size (length x width)	1250 x 600 mm.

ThermalTransmittance	3.60 W/m²K.
Thermal resistance	0.108 m²K/W.
Sound insulation	To DIN EN ISO 140-3, 23 dB.
TensileStrength	0.28 N/mm².
Co-efficient of linear thermal expansion	0.02 mm/mK.
ShearModulus	To EN 12090, 7 N/mm².
Density	To EN 1602, 32 kg/m³.
Water vapour diffusion resistance	To EN 12086, 100 µ.
Temperature limiter	-50°C to +75°C.
Global warming potential (GWP)	1.

Sustainability data

Contains Red List materials	No
Country of material origin	Germany
Country of product manufacture	Germany
Recyclability	XPS core fully recyclable
Recycled content As defined in clause 7.8 of BS EN ISO 14021	25 %
