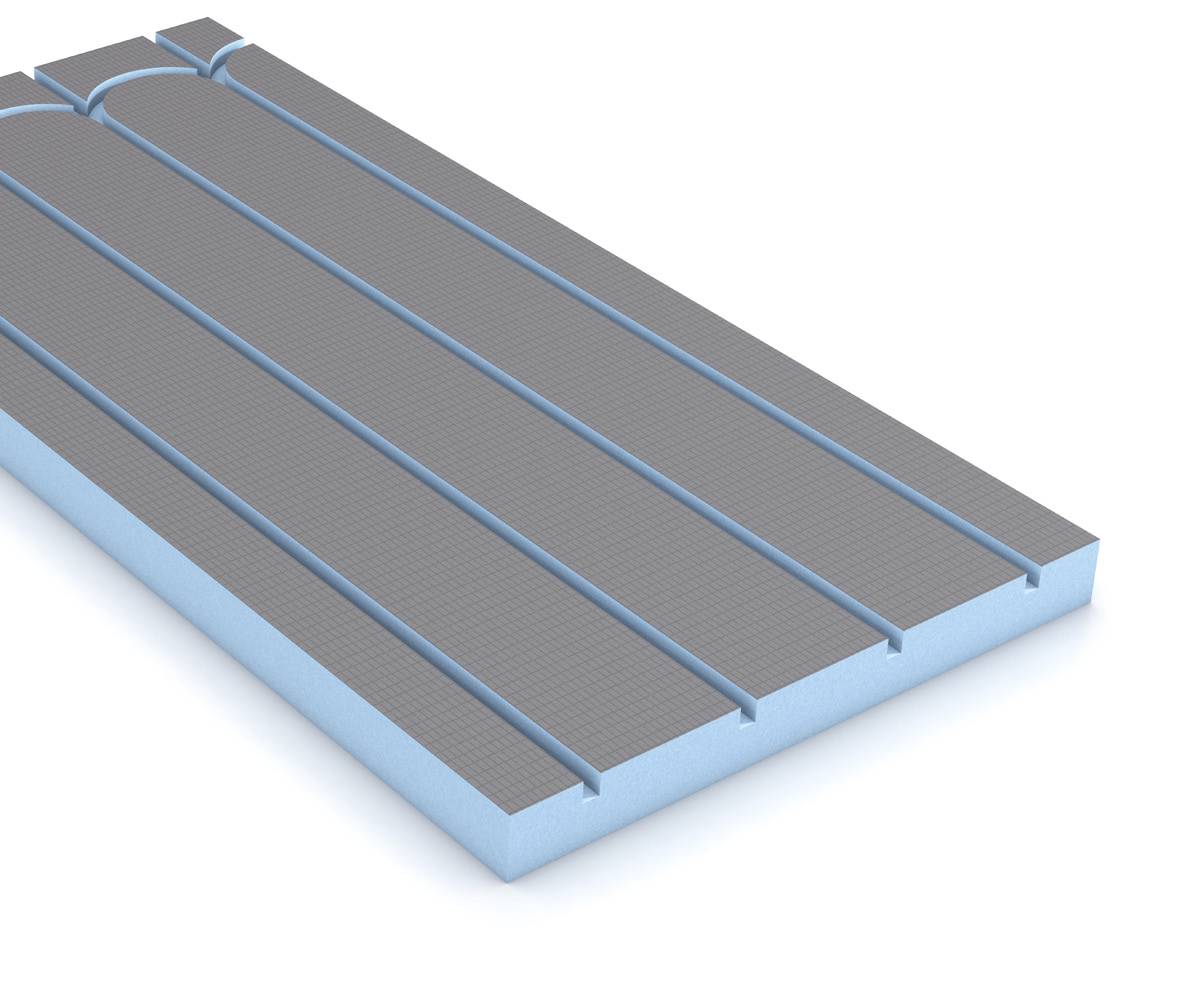

wedi Building Board PreLine - XPS board with channels for UFH pipes
Verified by manufacturer 2 months ago
BBA Agrément Certificate
Certificate type
EPD
Certificate type
XPS Base element for hot water heating system pipes, providing excellent thermal insulation and waterproofing at the same time. Pre-Routed for quick and easy installation.
Application

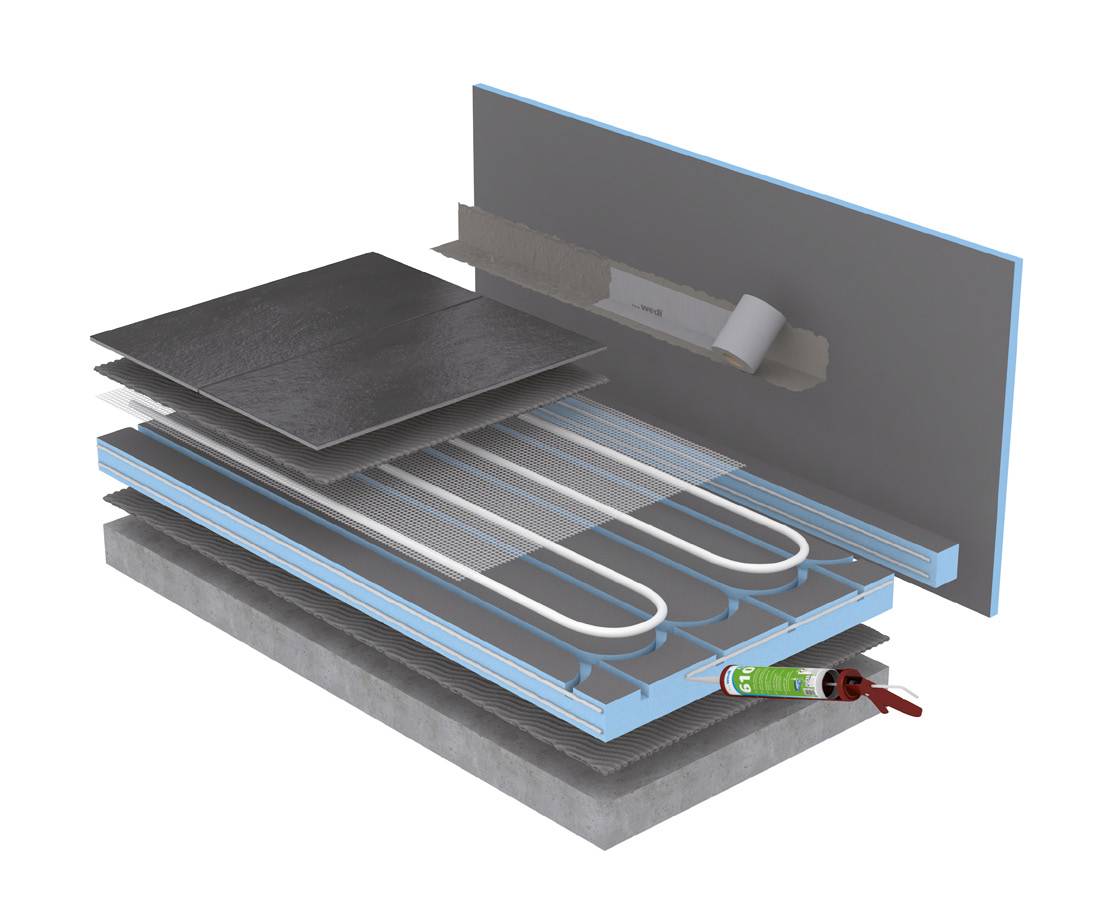

Building board providing floor insulation and a waterproof base for underfloor heating hot water pipes.
Description
Base element for hot water heating system pipes, providing excellent thermal insulation and waterproofing at the same time.
Features and benefits:
- Composite board manufactured from extruded polystyrene (XPS) rigid foam.
- Can be tiled, thus saving the laborious application of screed and reduces the overall construction height of the floor structure.
- Quick and palpable warming effect.
- Excellent thermal insulation properties.
- Quick, easy and clean installation (dust-free).
- Pipe laying pattern provided.
- Light weight in comparison with screed solutions.
- Suitable for retrofitting, renovation and refurbishment.
- 100% waterproof system.
- Low installation height.
General information
Color | Grey Guidance for specification option: Facing only; core is blue. Blue |
Finish | Cement Unfinished |
Material | High density extruded polystyrene (XPS) |
Shape | Rectangle |
Length | 1240 mm |
Width | 600 mm |
Height | 30 mm 40 mm 50 mm 60 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | M40/27 Intermediate substrate M40/470 Intermediate substrate |
Product range |
Specification data - Extruded polystyrene (XPS) boards
Standard | To BS EN 13164. |
Fire performance | To EN 13501-1, E. |
Compressive strength (minimum) at 10% compression | To EN 826, 0.28 N/mm². |
Thermal conductivity (maximum) | To EN 13164, 0.036 W/m·K. |
Thickness | 30 mm.40 mm.50 mm.60 mm.Manufacturer guidanceMilling grooves are 16 mm wide, 20 mm deep. |
Face size (length x width) | 1240 x 600 mm. |
Edges | Square. |
Integral accessories | wedi 610 adhesive sealant, wedi Tools joint reinforcement tape. |
Accessories | None. wedi 620 tile adhesive. Manufacturer guidanceConsult manufacturer for details of compatible products. |
Colour and finish | Grey surface with a blue rigid foam core (visible in milling grooves). |
Density | To DIN EN 1602, 32 kg/m². Guidance for specification option: Bulk density of raw foam building board. Manufacturer guidanceConsult manufacturer's literature for full details of raw foam building board. |
Water vapour diffusion resistance | To BE EN 12086: 100 µ. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Recyclability | XPS core fully recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 25 % |
