wedi Sanoasa Corner Seat
Verified by manufacturer 2 months ago
073784402
073784402

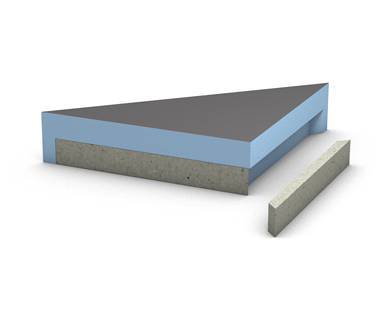

Compact tileable floating corner seat element.
Application
For private and commercial use indoors with a direct load from tap and cleaning water.
Description
Tileable loungers available in various shapes.
Features and benefits:
- Watertight.
- Stable.
- Lightweight.
- Quick and easy fitting.
- Easy to retrofit.
- CO²-foamed, extruded polystyrene rigid foam with closed cell structure and flame-retardant additive.
- The polystyrene rigid foam is hydrochlorofluorocarbon (HCFC) and chlorofluorocarbon (CFC) free.
General information
Color | Blue Guidance for specification option: Core Grey Guidance for specification option: Coating |
Finish | Cement |
Material | High density extruded polystyrene (XPS) |
Shape | Rectangle |
Length | 600 mm 800 mm |
Width | 300 mm 400 mm |
Height | 100 mm Guidance for specification option: Material thickness Manufacturer guidanceMaterial thickness |
Warranty description | Ten year |
Uniclass | |
CAWS | N13/40 Shower units N13/448 Seats |
Product range |
Specification data - Shower seats
Form | Wall mounted corner seat. |
Integral accessories | None.wedi 320 tile adhesive.wedi 610 – adhesive sealant.wedi tools sealing tape.wedi tools joint reinforcement tape. |
Dimensions | 800 x 400 x 100 mm. |
Weight | 1.25 kg. |
Fire performance | To EN 13501, Class E. |
Compressive strength (minimum) at 10% compression | To EN 826, 0.25 N/mm². |
Modules of elasticity | To EN 826, 10–18 N/mm². |
ThermalConductivity | To EN 13164, 0.036 W/mK. |
TensileStrength | To EN 1607, 0.45 N/mm². |
ShearModulus | To EN 12090, 7 N/mm². |
Compacted bulk density | To EN 1602, 32 kg/m³. |
Water vapour diffusion resistance | Too EN 12086, 100 µ. |
Water absorption | To EN 12087, ≤1.5% by volume. |
Co-efficient of linear thermal expansion | 0.07 mm/mK. |
Temperature limiter | -50 to +75°C. |
Global warming potential (GWP) | 1. |
Sustainability data
Country of product manufacture | Germany |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 25 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
