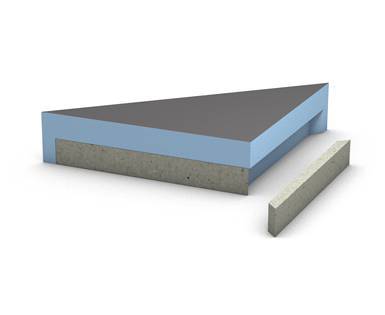

Compact tileable floating corner seat element.
For private and commercial use indoors with a direct load from tap and cleaning water.
Tileable loungers available in various shapes.
Features and benefits:
Color | Blue Guidance for specification option: Core Grey Guidance for specification option: Coating |
Finish | Cement |
Material | High density extruded polystyrene (XPS) |
Shape | Rectangle |
Length | 600 mm 800 mm |
Width | 300 mm 400 mm |
Height | 100 mm Guidance for specification option: Material thickness Manufacturer guidanceMaterial thickness |
Warranty description | Ten year |
Uniclass | |
CAWS | N13/40 Shower units N13/448 Seats |
Product range |
Form | Wall mounted corner seat. |
Integral accessories | None.wedi 320 tile adhesive.wedi 610 – adhesive sealant.wedi tools sealing tape.wedi tools joint reinforcement tape. |
Dimensions | 600 x 300 x 100 mm. |
Weight | 1.1 kg. |
Fire performance | To EN 13501, Class E. |
Compressive strength (minimum) at 10% compression | To EN 826, 0.25 N/mm². |
Modules of elasticity | To EN 826, 10–18 N/mm². |
ThermalConductivity | To EN 13164, 0.036 W/mK. |
TensileStrength | To EN 1607, 0.45 N/mm². |
ShearModulus | To EN 12090, 7 N/mm². |
Compacted bulk density | To EN 1602, 32 kg/m³. |
Water vapour diffusion resistance | Too EN 12086, 100 µ. |
Water absorption | To EN 12087, ≤1.5% by volume. |
Co-efficient of linear thermal expansion | 0.07 mm/mK. |
Temperature limiter | -50 to +75°C. |
Global warming potential (GWP) | 1. |
Country of product manufacture | Germany |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 25 % |
