Wedi Fundo Channel Covers
Verified by manufacturer 2 months ago
Metallic Gold
Metallic Gold
BBA Agrément Certificate
Certificate type
EPD
Certificate type
European Technical Approval (ETA)
Certificate type

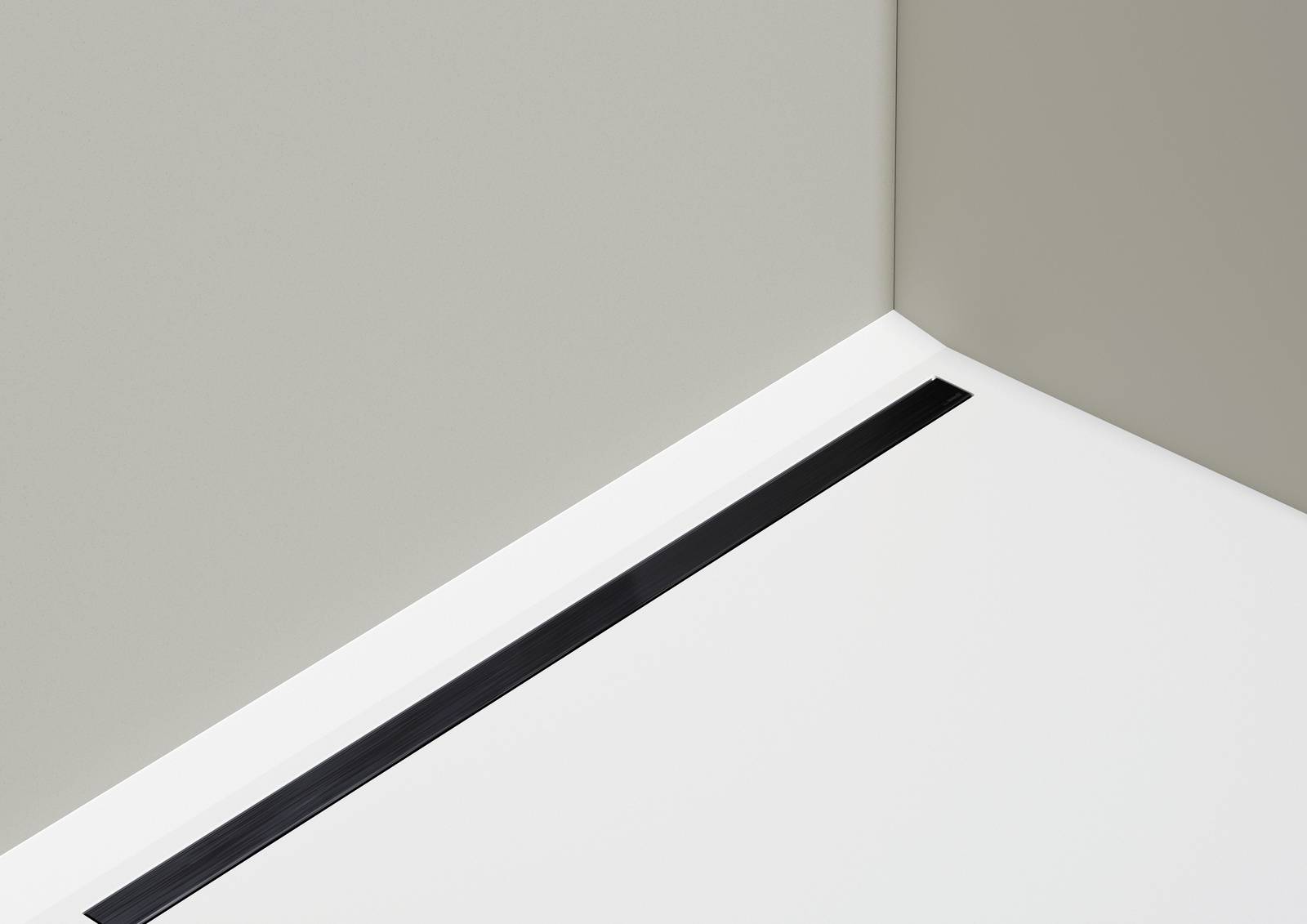

Channel covers, channel frame and drain grid for use with wedi Fundo Channel drains and wedi Fundo linear shower tray elements.
Application
Suitable for drainage channel covering for showers and wet rooms in residential and commercial applications.
Description
The wedi Fundo channel covers, channel frame and drain grid are designed for use with the wedi Fundo RioLigno/ Riolito neo/ Riolito/ Riofino/ Plano Linea shower tray systems. Various sizes and colours are available to be installed over the drainage channel of wedi Fundo elements.
They are made of a high quality stainless steel material which is highly scratch resistant and chemical resistant.
The coloured covers are coated with a physical vapour deposition (PVD) finish to provide a hard wearing and long lasting colour that will stand the test of time.
Various channel cover sizes and colours are available, including:
- Metallic Black.
- Metallic Gold.
- Metallic Rose Gold.
- Brushed Stainless Steel.
- Tileable.
Features and benefits:
- Range of colours and finishes.
- Range of sizes.
- Modern aesthetic.
General information
Color | Black Gold Other |
Finish | Brushed PVD Unfinished Metallic |
Material | Metal Stainless steel |
Shape | Rectangle Square |
Length | 300 mm 700 mm 800 mm 900 mm 1100 mm |
Width | 45 mm |
Height | 13 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | N13/43 Shower trays N13/377 Wet room showers N13/40 Shower units N13/375 Shower units |
Specification data - Shower tray wastes
Form | Channel cover. |
Materials | |
Body | Stainless steel. |
Finish and colour | PVD, metallic gold. |
Size | 300 x 45 x 13 mm.Guidance for specification option: Product code: 676800121. 700 x 45 x 13 mm.Guidance for specification option: Product code: 676800122. 800 x 45 x 13 mm.Guidance for specification option: Product code: 676800123. 900 x 45 x 13 mm.Guidance for specification option: Product code: 676800124. 1100 x 45 x 13 mm.Guidance for specification option: Product code: 676800125. |
Accessories | 300 mm channel frame, metallic gold. Guidance for specification option: Product code: 676800139. 700 mm channel frame, metallic gold. Guidance for specification option: Product code: 676800140. 800 mm channel frame, metallic gold. Guidance for specification option: Product code: 676800141. 900 mm channel frame, metallic gold. Guidance for specification option: Product code: 676800142. 1100 mm channel frame, metallic gold. Guidance for specification option: Product code: 676800143. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Metal Stainless steel |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 10.5 kg CO₂ eq/m² |
Recyclability | 100 |
Expected Life | Lifetime |
