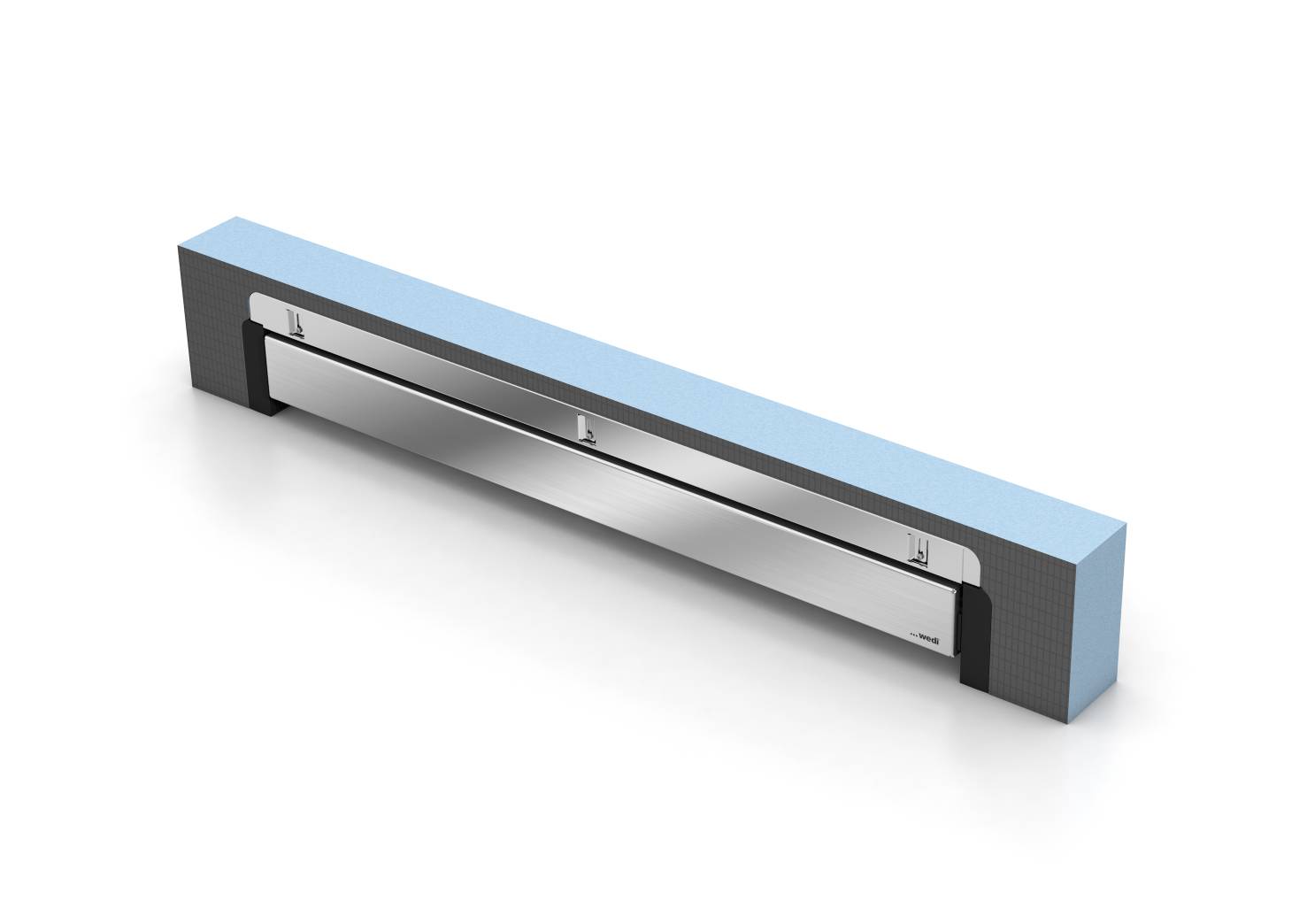

wedi Fundo Riolito Discreto - wall drain element

Verified by manufacturer 28 days ago

Wedi Systems (UK) Ltd Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • EPD

    EPD

    Certificate type

  • European Technical Approval (ETA)

    European Technical Approval (ETA)

    Certificate type

Wall drain solution. Attachment element for the Fundo Riolito / Riolito Neo shower tray elements.

Jump to:
BOS
+44 (0)161 864 2336 Website

Application

  • In private residential construction.
  • In public buildings complying with DIN 18040-1.
  • In accessible dwellings complying with DIN 18040-2 (note specifications for minimum tile size if wheelchair access is planned).
  • As a construction seal combined with tile and natural stone coverings of load class A0 and A (directly loaded walls and floors in rooms in which tap or cleaning water is used very frequently or for long periods).

Description

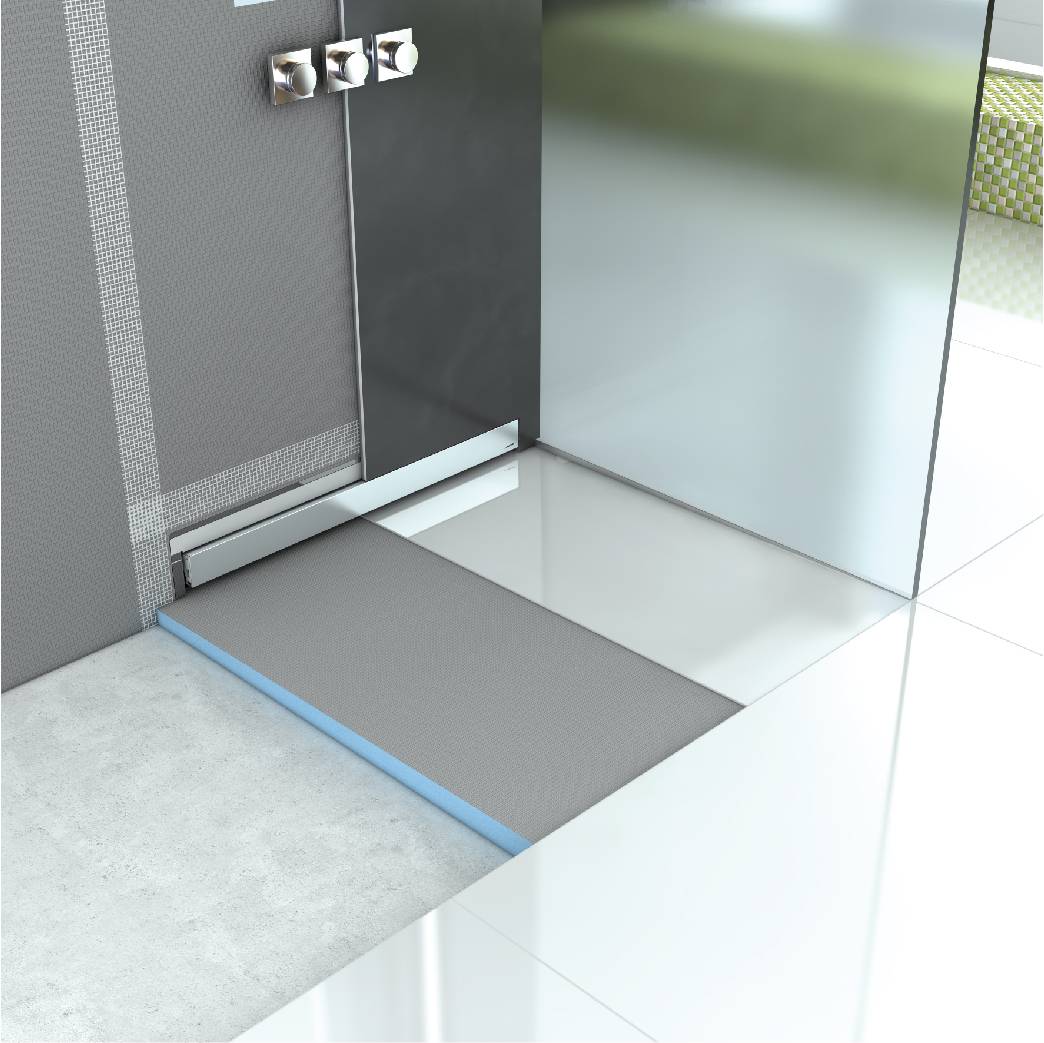

Fundo Riolito Discreto can be installed into existing walls, into front wall installations and other structures such as seating, storage spaces and steps. This means that a wall level drainage system can be created. The Fundo Riolito Discreto element can also be shortened. The system includes a plastic moulded part integrated into a wedi building board and precisely aligned with the Riolito channel which can easily be built onto.


Features and benefits:

  • Attachment element for Fundo Riolito floor elements.
  • For the creation of an attractive wall drain.
  • High-quality, two-sided cover included.
  • Simple to clean.


General information

Color

Silver

Finish

Brushed

Material

Stainless steel

Shape

Rectangle

Length

900 mm

1000 mm

1200 mm

Bespoke

Width

154 mm

Bespoke

Height

80 mm

Bespoke

Warranty description

Ten year

Uniclass

Pr_70_55_96_83 Shower tray wastesPrimary

CAWS

N13/375 Shower units

N13/40 Shower units

Product range

Shower Systems / Shower Tray Formers

Specification data - Shower tray wastes

Form

Wall drain element.

Materials

-

Body

Stainless steel.

Guidance for specification option:

Two-sided application (one side brushed surface and the other side tileable).

Finish and colour

Brushed.

Size

900 x 154 x 80 mm (300mm channel length).

900 x 154 x 80 mm (700mm channel length).

1000 x 154 x 80 mm (800mm channel length).

1000 x 154 x 80 mm (900mm channel length).

1200 x 154 x 80 mm (1100mm channel length).

Accessories

Not required.

320 Flexible Cement Based Adhesive.

520 Cement Based Waterproof Membrane.

610 Adhesive Sealant.

Fundo Sealing Set.

Show more

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Recyclability

XPS core fully recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

25 %

Guidance for specification option:

Minimum 25%.

Third party certifications

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

2

Revit
-

2

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

BBA certificate 14/5126 wedi Fundo Shower Elements

EPD

EPD

Environmental Product Declaration (EPD) - wedi Fundo shower elements

European Technical Approval (ETA)

European Technical Approval (ETA)

ETA - 13/0385
