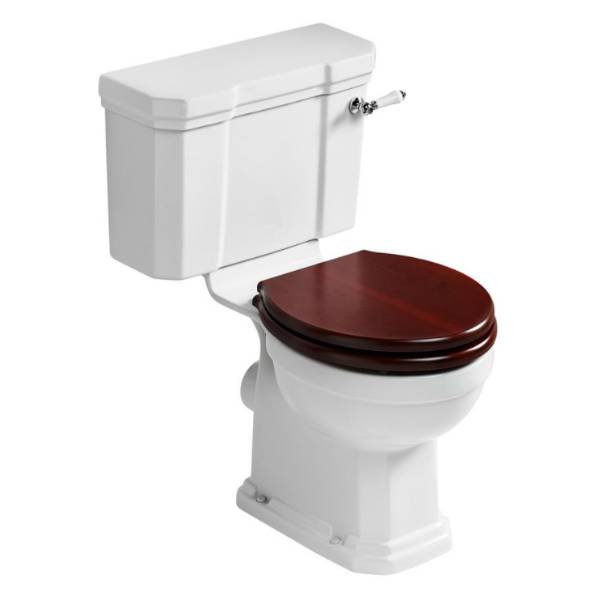

Waverley Close Coupled WC Toilet
Verified by manufacturer 9 months ago
Close-coupled toilet bowl with horizontal outlet.
Application
For use as high level/ low level toilet bowl with horizontal outlet.
Description
Waverley close-coupled toilet bowl with horizontal outlet.
Features and benefits:
- Domestic and hotel use.
- Classic Edwardian styling.
- Traditional lever.
- Mahogany effect seat.
- Dual flush lever flush.
- WC screwed to floor and cistern screwed to wall.
- Weight: 19.70 kg.
General information
Color | White |
Finish | Polished |
Material | Vitreous china |
Length | 675 mm |
Width | 380 mm |
Height | 440 mm |
Warranty description | Lifetime |
Uniclass | |
CAWS | N13/10 WC pans and flushing arrangements N13/300 WCs and cisterns |
Specification data - WC pans
Standard | To BS EN 997. |
Form | Back-to-wall, washdown. |
Connecting dimensions | To BS EN 33. |
Pan height | 400 mm. |
Materials | |
Body | Vitreous china. |
Finish and colour | Polished.Manufacturer guidanceWhite. |
Water supply, outlet and seat holes | |
Water supply | Back inlet. |
Outlet | Horizontal back outlet. |
Seat holes | Standard pattern. |
Dimensions | 380 x 590 x 400 mm Guidance for specification option: W x D x H. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
