Concept Freedom Wall Hung Raised Height Toilet

Verified by manufacturer over a year ago

Ideal Standard (UK) Ltd

Wall hung raised height toilet bowl.

Jump to:
+44 (0)870 122 8822 Website

Application

Suitable for domestic or commercial use.

Description

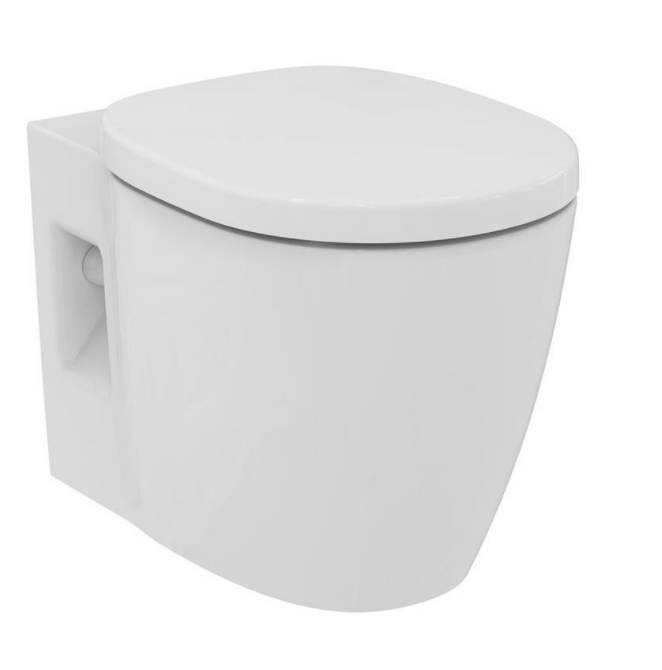

Concept Freedom wall hung raised height toilet bowl. Raised height toilet bowl helps users get on and off more easily.


Features and benefits:

  • Domestic and commercial use.
  • 46 cm rim height.
  • Standard and slow close seat & cover options.
  • Seat ring only option.
  • Part of an extensive suite.
  • Water efficient.

General information

Color

White

Material

Vitreous china

Width

361 mm

Height

400 mm

Uniclass

Pr_40_20_93_94 WC pansPrimary

CAWS

N13/10 WC pans and flushing arrangements

N13/300 WCs and cisterns

Specification data - WC pans

Standard

To BS EN 997.

Form

Wall-mounted.

Connecting dimensions

To BS EN 33.

Pan height

400 mm.

Materials

-

Body

Vitreous china.

Finish and colour

White.

Water supply, outlet and seat holes

-

Outlet

Horizontal back outlet.

Integral accessories

Not required.

E0060 - WC Frame.

Support frame with bolts for wall hung toilet pans and bidets.

E4465 - Flush Plate.

Karisma dual flush plate.

E7917 - WC Seat.

Concept / Studio toilet seat and cover - slow close.

S3643 - Cistern.

Conceala 2 Cisterns - Water Saving Dual Flush.

E2125 - Cistern.

Conceala 2 concealed cistern universal height, side inlet cistern - pneumatic dual flush valve - no flushplate - 6/4 litre flush.

E4437 - WC Actuator.

Contemporary flush plate, dual flush for Conceala 2 cisterns.

E7725 - WC Seat.

Concept toilet seat and cover, slim.

E7726 - WC Seat.

Concept toilet seat and cover, slim with quick release, slow close.

E7918 - WC Seat.

Concept toilet seat and cover.

K7060 - WC Seat.

Concept toilet seat only.

S4300 - WC Outlet Connector.

Panekta outlet connector to convert horizontal outlet wcs to S or turned P trap.

S4305 - WC Outlet Connector.

Panekta outlet connector to convert horizontal outlet wcs to P trap.

S4498 - WC Actuator.

 Finger push button, dual flush, small.

Weight

Net weight.

34.30 kg.

Dimensions

361 x 540 x 400 mm.

W x D x H.

BIM objects

Platform Compatible Version
Revit
-

1
