Wall Coping System GLC1

Application

For use on buildings of any type of frame construction, at any location and height. Backing wall compatibility: SFS, masonry, SIP or similar infill and shear walls, structural steel frames, concrete frames. Compatible with the GL1 cladding system.

Description

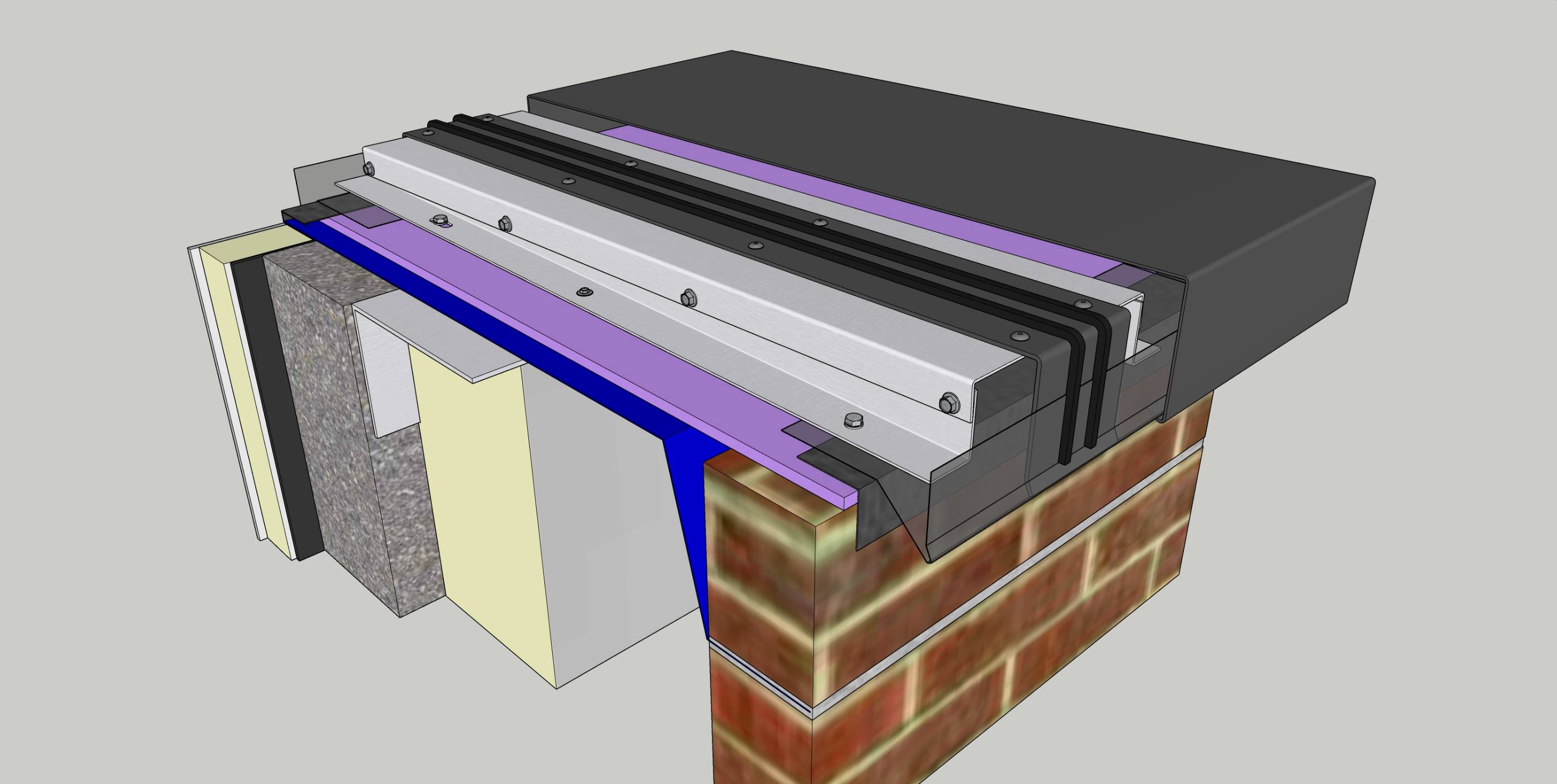

Coping system GLC1 comprises 3 mm aluminium self locking cope panels mounted onto two-way adjustable brackets with rubber strip gaskets. The system can be fixed to any suitable wall type to provide an aesthetically pleasing detail to the top of walls.


Features and benefits:

  • Cost effective.
  • Secret fix lock-in installation without visible fixings.
  • Two-way adjustable base brackets for alignment and levelling during installation.
  • Folded top brackets with edge gaskets for proper panel retention and waterproof joints.
  • No need for mastic joints.
  • Designed to be used with GL1 cladding system, no need for mastic.
  • Seamless, one-piece pressed corner panels improving. watertightness and aesthetics of the copings.

General information

Color

Available in a range of colours.

Finish

Powder coated

To BS EN 12206-1.

Material

Aluminium

Shape

Rectangular

Straight.

L shaped

Corner.

Size

Width: 200–800 mm. Length: 100–3000 mm. Face height: 60–200 mm.

-

WarrantyDescription

15 years

PPC finish offered with 15 years warranty and 25 years service free life cycle. Aluminium life cycle up to 60 years.

Uniclass 2015

Pr_25_93_54_03 Aluminium coping unitsPrimary

CAWS

F30/780 Coping system

Specification data - Aluminium coping units Enhanced data

Material

Aluminium.

Finish

Powder coated.

Material thickness (minimum)

3 mm.

Dimensions

Width: 200-800 mm. Length: 100-3000 mm. Face height: 60-200 mm. Slope gradient range: 0-5°.

Fixings

Two-way adjustable brackets with rubber strip gaskets.

Cavity fire barrier

Fischer/ Siderise.

Manufacturer recommendations.

Air tightness

2000–2400 Pa.

Dynamic loading

Up to 0.7 kN/m².

Snow loads.

Maximum live load

Up to 1.5 kN/m².

Walking loads.

Optional items

Galvanized steel support angle.

A1 fire rated base board.

EPDM sealed edges.

DPC membrane.

Not required.

Body colour

RAL.

BS palette.

Special metallic.

Anodic.

Textured colours.

Environmental information

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

Excellent. Aluminium is widely accepted for recycling.

Recycled content

95
