Wall Coping System GLC1
Application

For use on buildings of any type of frame construction, at any location and height. Backing wall compatibility: SFS, masonry, SIP or similar infill and shear walls, structural steel frames, concrete frames. Compatible with the GL1 cladding system.

Description

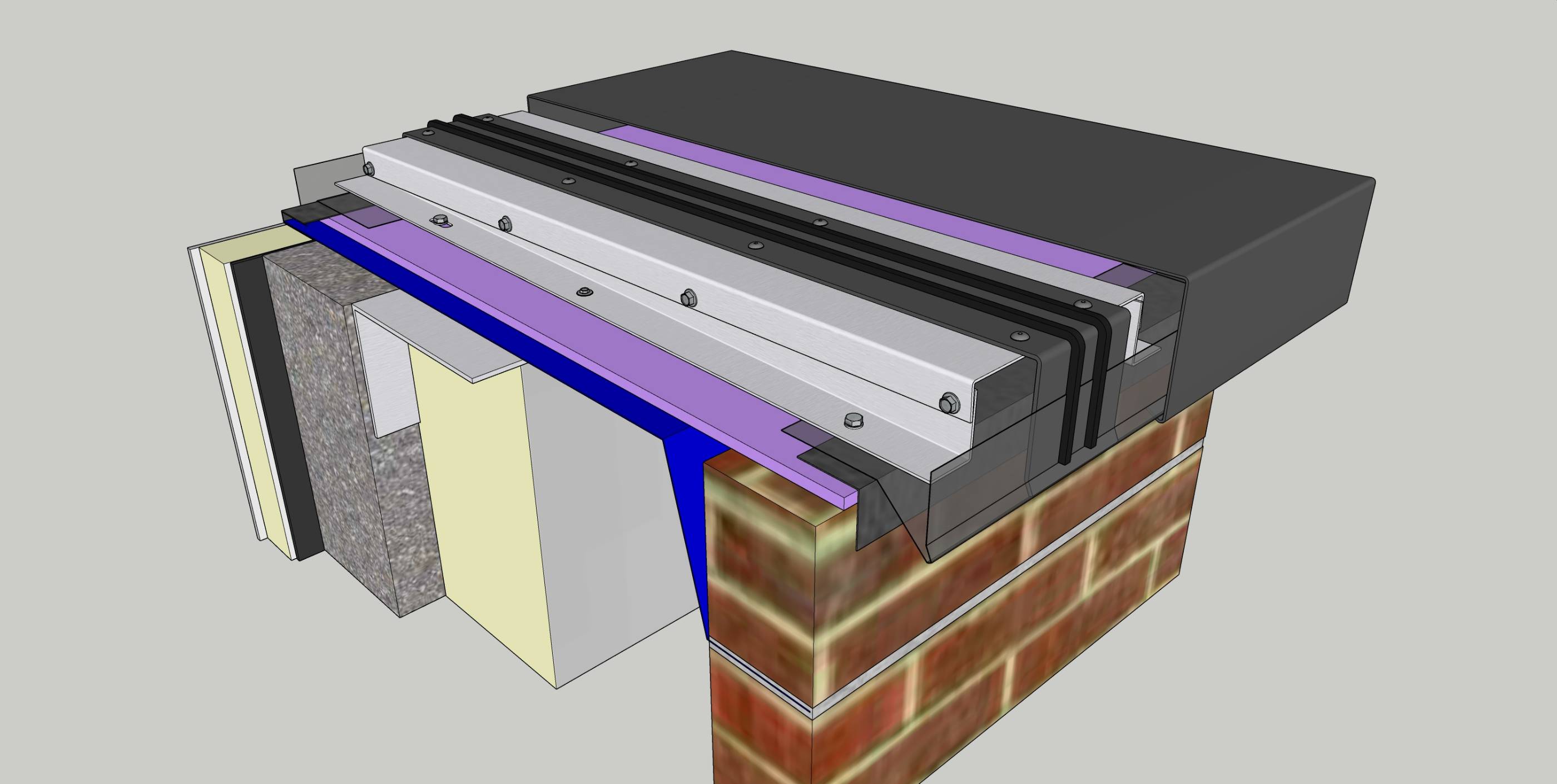

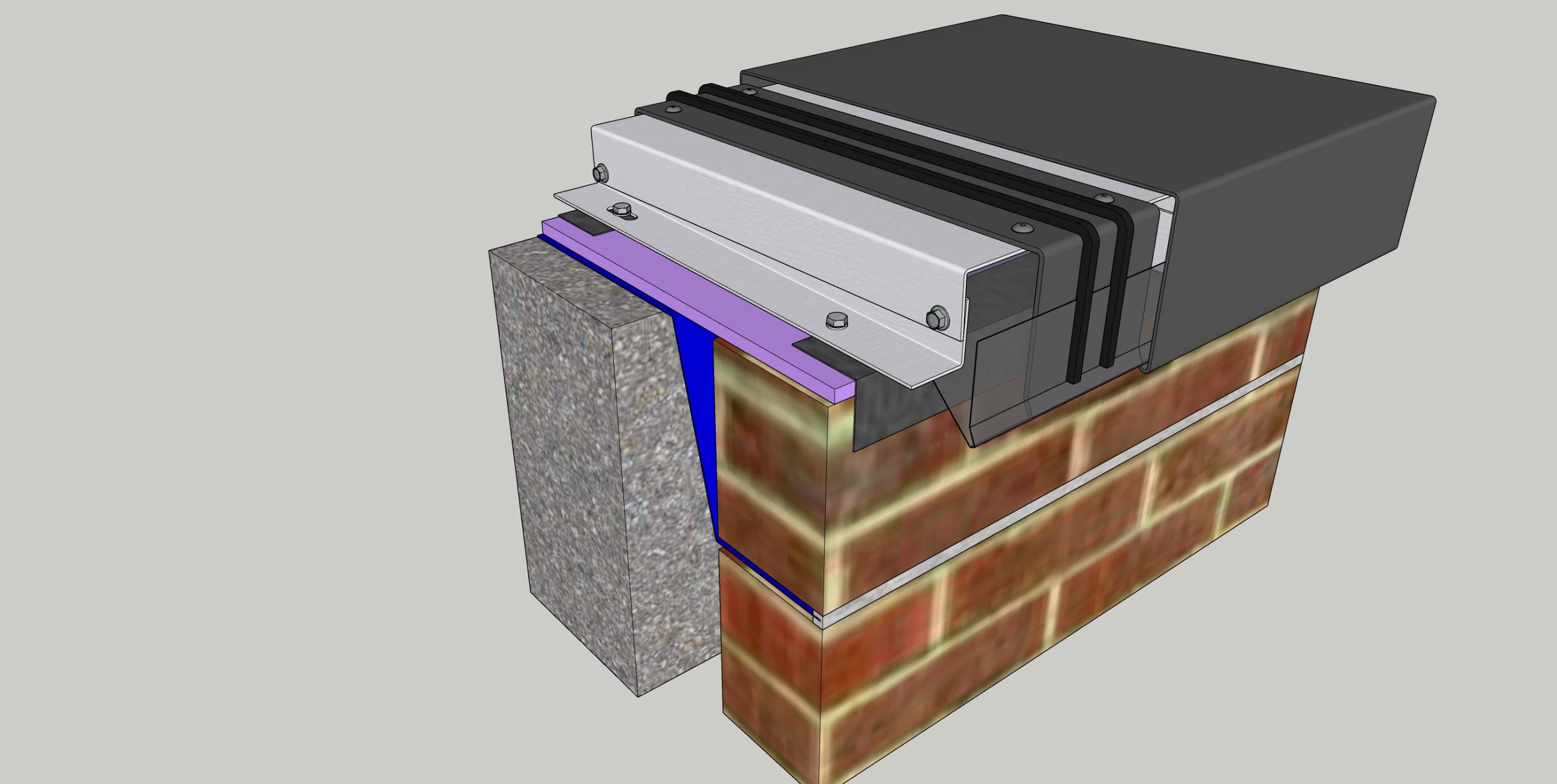

Coping system GLC1 comprises 3 mm aluminium self locking cope panels mounted onto two-way adjustable brackets with rubber strip gaskets. The system can be fixed to any suitable wall type to provide an aesthetically pleasing detail to the top of walls.


Features and benefits:


  • Cost effective.
  • Secret fix lock-in installation without visible fixings.
  • Two-way adjustable base brackets for alignment and levelling during installation.
  • Folded top brackets with edge gaskets for proper panel retention and waterproof joints.
  • No need for mastic joints.

General information
Color

Available in a range of colours

Features

Self-locking, designed to be used with GL1 cladding system, no need for mastic. Seamless , one piece pressed corner panels improving watertightness and aesthetics of the copings

Finish

Powder coated to BS EN 12206-1.

Material

Aluminium.

Shape

Straight

Corner

Size

200-800 mm

Width.

100-3000 mm

Length.

60-200 mm

Face height.

WarrantyDescription

PPC finish offered with 15 years warranty and 25 years service free life cycle. Aluminium life cycle up to 60 years.

Uniclass 2015
Pr_25_93_54_03 Aluminium coping unitsPrimary
CAWS

F30/780 Coping system

Specification data - Aluminium coping units Enhanced data
Material

Aluminium.

Finish

Powder coated.

Material thickness (minimum)

3 mm.

Dimensions

Various

Width: 200-800 mm. Length: 100-3000 mm. Face height: 60-200 mm. Slope gradient range: 0-5°.

Fixings

Two-way adjustable brackets with rubber strip gaskets

Cavity fire barrier

Fischer/ Siderise

Manufacturer recommendations.

Air tightness

2000–2400 Pa.

Dynamic loading

Up to 0.7 kN/m².

Snow loads.

Maximum live load

Up to 1.5 kN/m².

Walking loads.

Optional items

Galvanized steel support angle

A1 fire rated base board

EPDM sealed edges

DPC membrane

Not required

Body colour

RAL

BS palette

Special metallic

Anodic

Textured colours

Environmental information
Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

Excellent. Aluminium is widely accepted for recycling.

Recycled content

95
