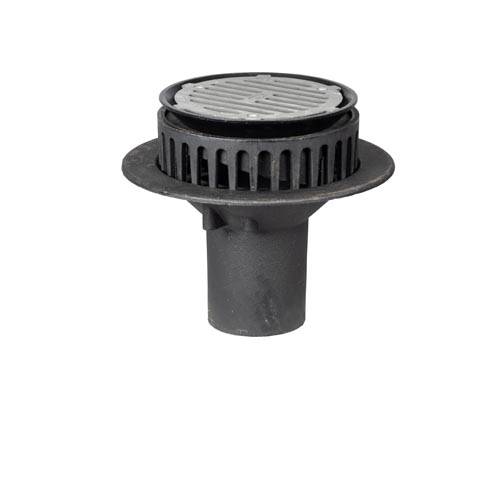

Wade (WD Series) Uni/Multi Level Cast Iron Gullies

Name: Wade (WD Series) Uni/Multi Level Cast Iron Gullies
Brand: Alumasc Water Management Solutions
SKU: pABHowXLoXmLFAe6uu2x8k

Verified by manufacturer 5 months ago

WD202

Alumasc Water Management Solutions

Third party certifications:

UKAS
Certificate type

Cast iron height-adjustable gullies designed for use with unfinished floors.

Jump to:

+44 (0)1536 383810 Website

Application

Suitable for use with unfinished (e.g. bare concrete) floors, with gratings to suit a range of requirements, from plant rooms to pedestrian areas.

Description

Multi-Level are height-adjustable gullies designed for use with unfinished (e.g. bare concrete) floors. Multi-Level gullies include the facility for a membrane clamping collar to ensure a watertight joint between the gully body and membrane. Gratings are available to suit a range of requirements, from plant rooms to pedestrian areas, of ductile iron or stainless steel. Drainage is also provided at membrane level via weepholes or a slotted collar.

General information

Material	Cast iron Stainless steel Steel
Shape	Square
Length	50 mm 75 mm 100 mm 80 mm Guidance for specification option: 3" BSP. 150 mm Guidance for specification option: 6" BSP. 200 mm Show more
Width	50 mm 75 mm 100 mm 80 mm Guidance for specification option: 3" BSP. 150 mm Guidance for specification option: 6" BSP. 200 mm Show more

Uniclass	Pr_65_52_24_31 Floor gulliesPrimary
CAWS	R11/5 Floor drains R11/315 Floor drains

Product range	Wade Building Drainage / Uni/Multi Level Outlets

Specification data - Floor gullies

Standard	To BS EN 1253-1.
Body	-
Configuration	Non-trapped.
Material	Cast iron.
Cover or grating	-
Cover or grating type	Multi-Level.
Material	Cast iron.
Outlet	Vertical.
Load class (minimum)	L 15.
Integral accessories	Slotted Collar.

Diameter	50 mm.
Suitable floor finishes	Concrete. Screed. Composite Asphalt.
Accessories	Not required. Clamping Collar. Filter Bucket. Bolt on Tundish. Weepholes. Side Inlets. Show more
