Harmer Direct Fix Gratings

Verified by manufacturer 2 months ago

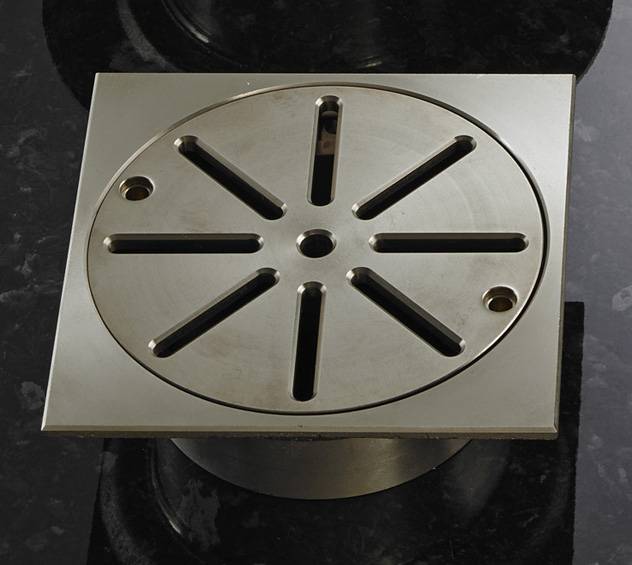

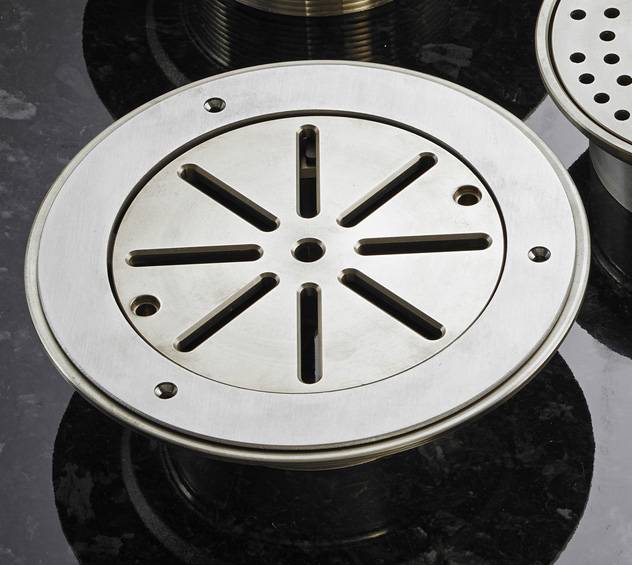

Harmer Direct Fix Gratings - Plain Cap

Alumasc Water Management Solutions Variant:
Third party certifications:
  • UKAS

    UKAS

    Certificate type

Direct Fix Gratings With Removeable Trap For 110mm OD Pipework

Jump to:
+44 (0)1536 383810 Website

Application

Suitable for the following flooring substrates:


  • Vinyl
  • Resin
  • Screed
  • Tile
  • Composite
  • Asphalt
  • Concrete

Description

A range of direct fix floor drain grates and bezels that offer a wide selection of designs to suit flow rate and load class requirements. Available in either a satin stainless steel or nickel bronze finish, both are durable and provide a stylish long lasting finish. All the grates come with a choice of three bezel connections to suit any required pipework connection.


Features and Benefits:


  • Grates and bezel kits come trapped as standard, if a non-trapped version is required please remove the suffix /T
  • Life expectancy in excess of 40 years

General information

Material

Cast iron

Guidance for specification option:

Body.

Stainless steel

Guidance for specification option:

Satin stainless steel grating.

Bronze

Guidance for specification option:

Nickel bronze grating.

Shape

Circle

Square

Height

54 mm

Uniclass

Pr_65_52_24_31 Floor gulliesPrimary

CAWS

R12/50 One piece gullies and covers

R12/315 One piece gullies and covers

R11/315 Floor drains

R11/5 Floor drains

Product range

Harmer Building Drainage / Cast Iron Floor Outlets

Specification data - Floor gullies

Standard

To BS EN 1253-1.

Body

-

Configuration

Bell-trapped.

Material

Cast iron.

Cover or grating

-

Cover or grating type

Plain cap.

Finish

Satin stainless steel.

Nickel bronze.

Load class (minimum)

L 15.

Diameter

110 mm.

Sustainability data

Contains Red List materials

No

Material

Cast iron

Guidance for specification option:

Body.

Stainless steel

Guidance for specification option:

Satin stainless steel grating.

Bronze

Guidance for specification option:

Nickel bronze grating.

Recyclability

100%

Third party certifications

UKAS

UKAS

ISO 14001 - Burton Latimer site

UKAS

UKAS

ISO 9001 - Burton Latimer site
