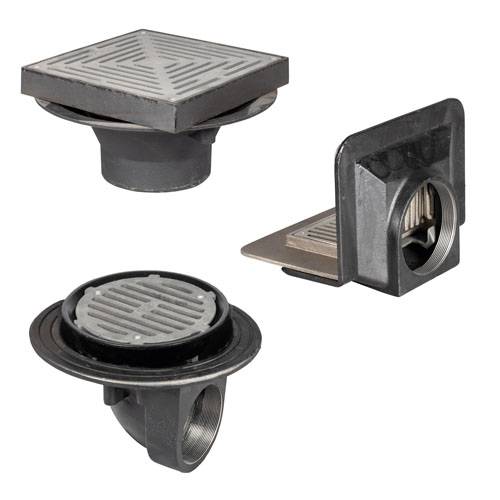

Wade (WB Series) Uni/Multi Level Cast Iron Gullies

Name: Wade (WB Series) Uni/Multi Level Cast Iron Gullies
Brand: Alumasc Water Management Solutions
SKU: rVPvHuvGw8XosDAw2JW5fs

Verified by manufacturer 5 months ago

WB302

Alumasc Water Management Solutions

Third party certifications:

UKAS
Certificate type

Cast iron gullies designed for applications with asphalt/ composition finished floors.

Jump to:

+44 (0)1536 383810 Website

Application

Suitable for applications with asphalt/ composition finished floors.

Description

Uni-Level are designed for applications with asphalt/ composition finished floors. These fixed height gully assemblies include a membrane clamping collar to ensure a watertight joint between the gully body and membrane. Secured ductile iron gratings with load class L 15 and M 125, suitable for areas subject to car and light vehicular traffic, are removable without disturbing the membrane while providing drainage performance.

General information

Material	Cast iron
Shape	Square
Length	50 mm 75 mm 100 mm 80 mm Guidance for specification option: 3" BSP. 150 mm Guidance for specification option: 6" BSP.
Width	50 mm 75 mm 100 mm 80 mm Guidance for specification option: 3" BSP. 150 mm Guidance for specification option: 6" BSP.

Uniclass	Pr_65_52_24_31 Floor gulliesPrimary
CAWS	R11/5 Floor drains R11/315 Floor drains

Product range	Wade Building Drainage / Uni/Multi Level Outlets

Specification data - Floor gullies

Standard	To BS EN 1253-1.
Body	-
Configuration	Non-trapped.
Material	Cast iron.
Cover or grating	-
Cover or grating type	Uni-Level.
Material	Cast iron.
Outlet	Vertical.
Load class (minimum)	L 15.

Diameter	50 mm.
Suitable floor finishes	Concrete. Screed. Composite Asphalt.
Accessories	Not required. Clamping Collar. Filter Bucket. Bolt on Tundish. Weepholes. Side Inlets. Show more
