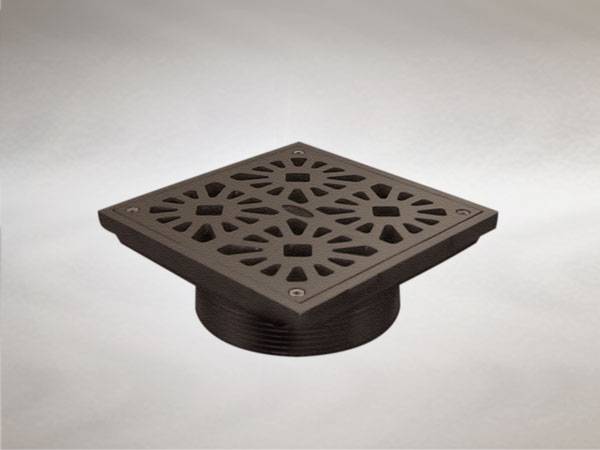

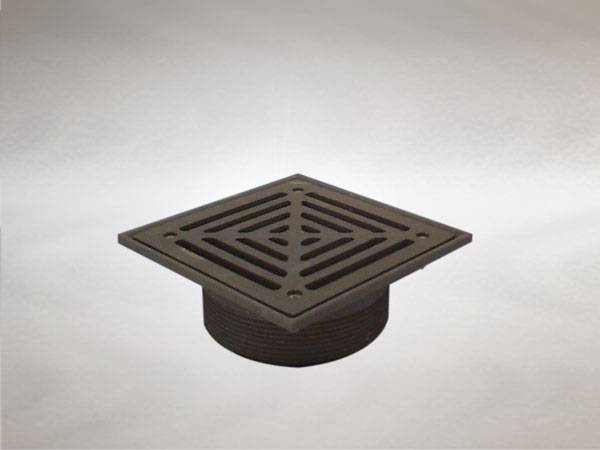

Wade Vari-Level (L Series) Cast Iron Gratings
Verified by manufacturer 1 month ago
L2501 CI
L2501 CI
UKAS
Certificate type
Range of Cast Iron Gratings With 4" NPSM Connection
Application
The term Vari-Level refers to the fine adjustability of the height of a grating or access cover above a body; this feature enables installation exactly at finished floor level by rotating the grating or access cover.
Description
A Vari-Level gully comprises, as a minimum, a Vari-Level body and a Vari-Level grating; in some versions these items fit together directly, but, mostly, connection is by means of an inter-connecting, dual-purpose part – a membrane clamping collar. To address a myriad of applications, different versions of Vari-Level bodies are available for use with a wide range of Vari-Level gratings, Vari-Level access covers and Vari Level accessories.
General information
Material | Cast iron |
Shape | Square |
Uniclass | |
CAWS | R11/5 Floor drains R11/315 Floor drains |
Product range |
Specification data - Floor gullies
Standard | To BS EN 1253-1. |
Cover or grating | |
Material | Cast Iron. |
Finish | Sherardized |
Load class (minimum) | K 3. |
Integral accessories | Pin Torx Screws.TappedBolt on Funnel.Portable Funnel. |
Connection | 4" NPSM. |
Width | 150 mm. |
Sustainability data
Contains Red List materials | No |
Material | Cast iron |
Recyclability | 100% Recyclable |
Expected Life | 60 year |
Third party certifications
UKAS
ISO 9001 - Halstead Site
Literature
Wade Floor Gullies and Access Covers
