Wade Direct Fix Nickel Bronze Access Covers
Verified by manufacturer 1 month ago
K5241
K5241
UKAS
Certificate type

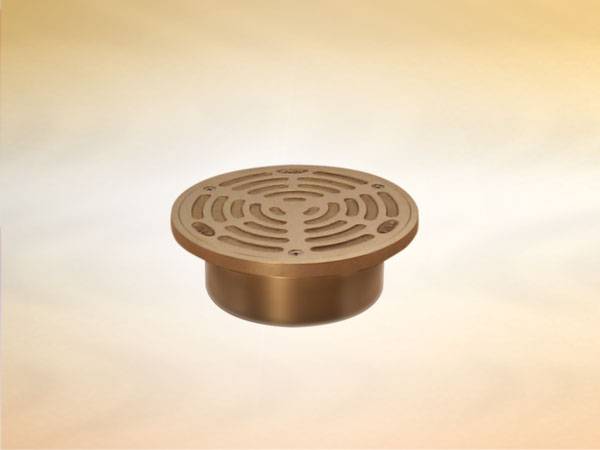

Direct Fix Nickel Bronze Access Covers 110mm OD
Application
Direct Fix gratings and access covers can be used internally or externally and are designed to be connected directly onto pipework with an integral removeable trap.
Description
Direct connection versions look identical to Vari-Level versions when installed, but are machined to enable direct connection to pipework by means of proprietary couplings or ring seal sockets. Mostly, one version of grating or access cover is suitable for all pipework of the same size, but tolerances of castings and pipework are such that in some cases different versions of the same style and size of grating or access cover are required for different pipework.
General information
Material | Nickel Bronze |
Shape | Circle Square |
Length | 40 mm 50 mm 75 mm 82 mm 100 mm |
Width | 40 mm 50 mm 75 mm 82 mm 100 mm |
Uniclass | |
CAWS | R11/5 Floor drains R11/315 Floor drains |
Product range |
Specification data - Floor gullies
Standard | To BS EN 1253-1. |
Cover or grating | |
Material | Nickel Bronze. |
Load class (minimum) | L 15. |
Integral accessories | Pin Torx Screws, Tapped. |
Diameter | 75 mm. |
Size: | 75 mm diameter. |
Suitable floor finishes | Tile. Resin. Screed. Concrete. |
Sustainability data
Contains Red List materials | No |
Material | Nickel Bronze |
Recyclability | 100% |
Third party certifications
UKAS
ISO 9001 - Halstead Site
Literature
Wade Floor Gullies and Access Covers
