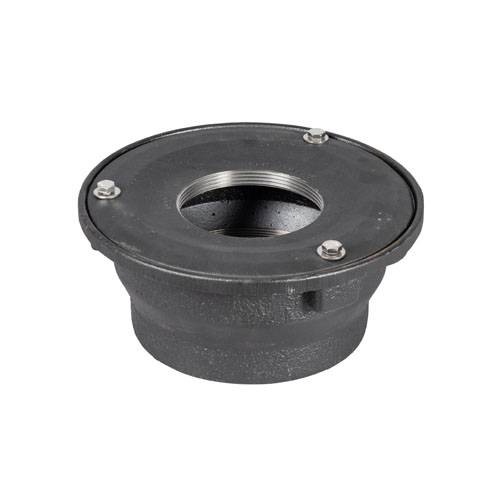

Wade (D Series) Uni/Multi Level Cast Iron Gullies

Verified by manufacturer 2 months ago

Alumasc Water Management Solutions Third party certifications:
  • UKAS

    UKAS

    Certificate type

Cast iron height-adjustable gullies designed for use with unfinished floors.

Jump to:
+44 (0)1536 383810 Website

Application

Suitable for use with unfinished (e.g. bare concrete) floors, with gratings to suit a range of requirements, from plant rooms to pedestrian areas.

Description

Multi-Level are height-adjustable gullies designed for use with unfinished (e.g. bare concrete) floors. Multi-Level gullies include the facility for a membrane clamping collar to ensure a watertight joint between the gully body and membrane. Gratings are available to suit a range of requirements, from plant rooms to pedestrian areas, of ductile iron or stainless steel. Drainage is also provided at membrane level via weepholes or a slotted collar.

General information

Material

Cast iron

Shape

Circle

Length

100 mm

Guidance for specification option:

4" BSP.

Width

100 mm

Guidance for specification option:

4" BSP.

Uniclass

Pr_65_52_24_31 Floor gulliesPrimary

CAWS

R11/5 Floor drains

R11/315 Floor drains

Product range

Wade Building Drainage / Uni/Multi Level Outlets

Specification data - Floor gullies

Standard

To BS EN 1253-1.

Body

-

Configuration

Non-trapped.

Material

Cast iron.

Cover or grating

-

Cover or grating type

Multi-Level.

Material

Cast iron.

Outlet

Vertical.

Load class (minimum)

L 15.

Integral accessories

Slotted Collar.

Diameter

100 mm (4" BSP).

Suitable floor finishes

Concrete.

Screed.

Composite Asphalt.

Accessories

Not required.

Clamping Collar.

Filter Bucket.

Bolt on Tundish.

Weepholes.

Show more

Sustainability data

Contains Red List materials

No

Material

Cast iron

Recyclability

100%

Expected Life

60 year

Third party certifications

UKAS

UKAS

ISO 9001 - Dover Site

Literature

Wade Floor Gullies and Access Covers

Wade Floor Gullies and Access Covers
