Voice Alarm and Public Address Ethernet Touch Call Station, EN54-16 Certified - 583527 - Redundant Cell Stations

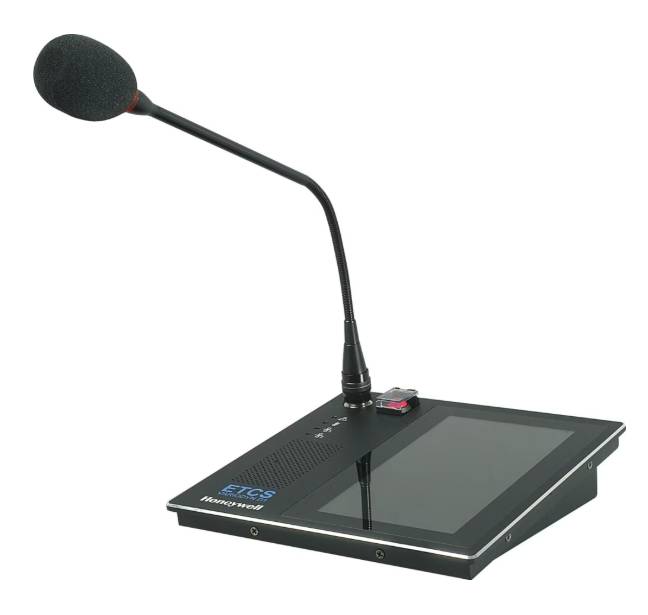

The Ethernet Touch Call Station (ETCS) is a user-friendly Voice Alarm and Public Address system user interface with a 7” touchscreen, LED status indicators, and emergency features. It supports redundant Ethernet, PoE or adapter power, USB audio playback, and external audio connections. The system monitors microphones and cables, allows multi-language use, user permissions, and local audio storage. Calls can be manual, pre-defined, or scheduled, with multiple audio sources and adjustable volume.

Features and benefits:

• 7’ touch screen and user friendly interface.
• Four bi-colour LEDs for status indication.
• A red button with cover for emergency announcement.
• Replaceable electret gooseneck microphone with unidirectional pattern.
• Loudspeaker for pre-listening audio locally and intercom between the call stations (ETCS and DCS series).
• High failure safety due to redundant transmission route.
• Network cable via Ethernet.
• Powered by PoE devices or external power adapter.
• USB stick can be connected to play audio files.
• Additional audio input/output for audio devices.
• Maximum three key modules (DKM plus) which has 18 keys and 18 LEDs each can be extended (max of addition manual control buttons - 54).
• Permanent monitoring of the microphone and cables.
• Remote monitoring and configuration via the network.
• Support multi-language display.
• Three types of user permissions for different layouts and operations.
• Speech or audio memory up to 27 h.
• Active call list, system fault list and recent call list can easily be checked in any page.
• Support manual calls, pre-defined calls and schedule calls which can be set as home page.
• Volume can be adjusted during the calls.
• EN54-16 Certified.
