12 Button Extendable) Firefighters Microphone DCSF1 with Redundant back up, EN54-16 Certified -583503.RE - Redundant Fire Brigade Stations
Verified by manufacturer 3 days ago

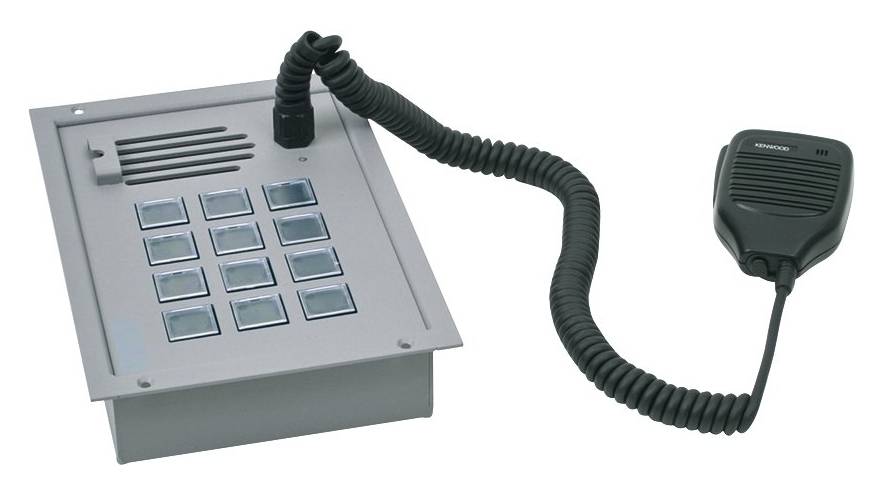

12 Button Digital firefighter microphone with redundant transmission route.
Application
Ideal for high-traffic areas such as Airports, Stadia, Railway stations, Shopping Malls, Theatres, Commercial multi story tower blocks. Essential building usage for emergency guidance and routine communication within buildings with large public gatherings.
Description
The DCSF12 is a digital paging microphone designed for critical public address and voice alarm (PAVA) systems, offering full redundancy in signal transmission for enhanced safety. It supports dual CAT5 cable connections to two separate Comprio or DOM units (excluding standalone Comprio), ensuring continuous communication even if one link fails.
Featuring 12 freely configurable keys, 13 LEDs, and a handheld microphone, it allows selection of loudspeaker zones, live speech announcements, and playback of alarms or gongs. The device connects via the DAL (Digital Audio Link) bus, transmitting audio and control signals digitally up to 300 meters over CAT5, with optional fiber optic extension and redundancy. System scalability is supported with up to six DKM18 key modules, allowing expansion to 120 keys and LEDs per station.
Features and benefits:
- High failure safety due to redundant transmission route.
- Hand-held microphone with built-in loudspeaker and acoustic microphone monitoring.
- Permanent monitoring of the line to the next interface module.
- 24-bit AD/DA converter.
- 12 freely configurable keys.
- Additional LED programmable in yellow or red.
- Can be used redundantly as well as non- redundantly.
- EN54-16 Certified.
General information
Color | Grey |
Shape | Rectangle |
Length | 40 mm |
Width | 134 mm |
Height | 196 mm |
Uniclass | |
CAWS | V90/590 Equipment |
SKU Code | 583503.RE |
Specification data - Paging microphones
Classification data | |
Standard | To BS EN 54-16. |
Loudspeaker zones | Twelve. Manufacturer guidanceThe microphone controls manual message to all loudspeakers connected to the voice alarm system, it is not circuit dependant. |
Microphone | Hand-held, built-in loud speaker and acoustic microphone monitoring. |
Control features | Selection of loudspeaker circuits, setting off speech announcements and various gong or alarm sounds. |
Display features | LED, programmable in yellow or red. |
Connection ports | 2 x RJ45. |
Enclosure | |
Colour | Grey. |
Environmental requirements | Ambient temperature -5°C to 55°C. Air humidity <93% (non-condensing). |
Mounting method | Desktop. |
Accessories | Not required. Digital push-button module DKM 18 for redundant call stations - 583506. Keyboard protection for call station DCS VARIODYN D1 - 583311. FO conversion for OIM control panel VARIODYN D1 - 583316.21. FO conversion for digital call stations DCS VARIODYN D1 - 583317.21. PSU for FO converter DCS O VARIODYN D1 - 583315.02. Wall junction box for call station DCS VARIODYN D1 - 583307. Substitute key caps (PU 12 pieces) - 583318. Blind cover for the installation of a DCSF12 or a DCSF1 in the upright cabinet - 583709. Enclosure for one FB call station DCSF - 584961. Enclosure for two FB call stations DCSF undefined - 584962. |
Current | 150 mA. Manufacturer guidanceCurrent consumption. |
Dimensions | 134 x 196 x 40 mm. Manufacturer guidanceWidth x height x depth. |
Weight | 1.6 kg. |
Literature
Literature type
583503.RE 12 button Fireman's Microphone EN54-16 Declaration of Performance

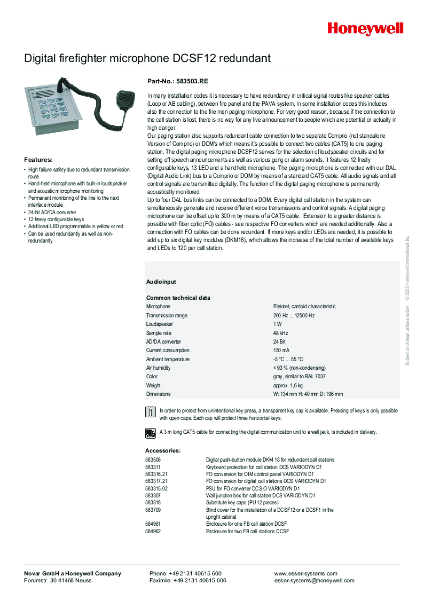

583503.RE 12 button Fireman's Microphone EN54-16
VARIODYN ONE - EN54 Certified Voice Alarm Systems Brochure
VARIODYN D1 + Comprio + VARIODYN ONE-EU Declaration of Conformity
