EN54-16 Digital Call Station (Paging Microphone) - 583520 - Redundant Call Station
Verified by manufacturer 3 days ago

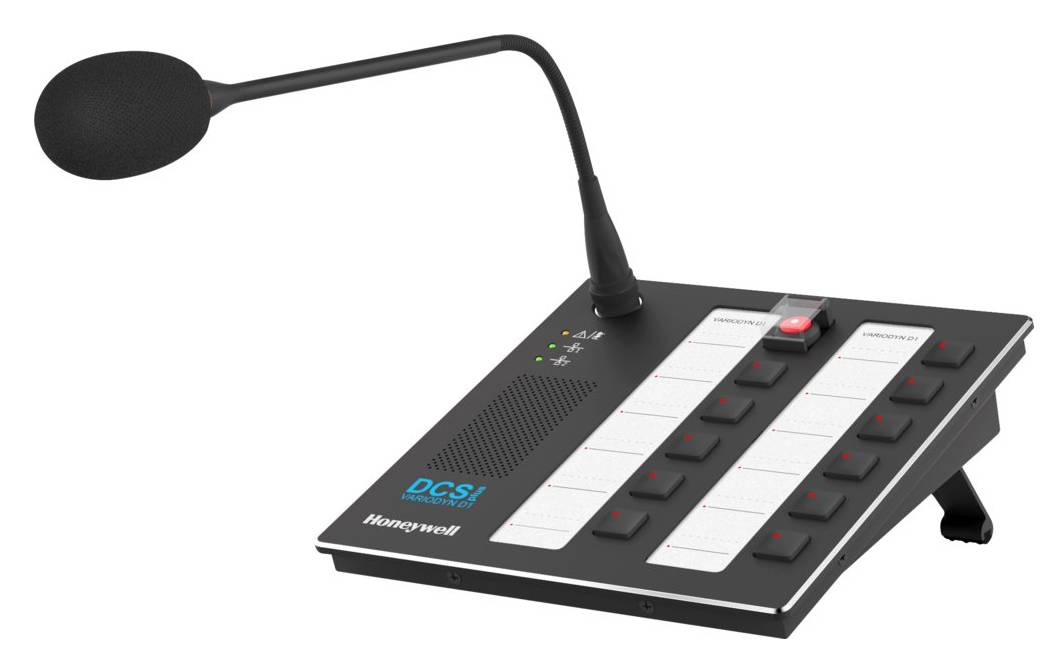

Digital call station (Microphone).
Application
Used in Voice Alarm and Public address applications in order to make manual announcements or emergency calls in a fire or emergency situation on a site.
Description
The digital call station (microphone) DCS plus allows the selection of loudspeaker circuits (Paging Zones), the transmission of voice announcements as well as various gongs and alarms. It can be expanded with up to six digital keyboard modules DKM plus, whereby the total number of available keys and LEDs increases to 120 per communication station.
Features and benefits:
- High failure safety due to redundant transmission route.
- Cost-effective CAT5 cabling.
- Electret gooseneck microphone with cardioid pattern.
- Exchangeable gooseneck microphone with protection by using a specific tool to lock/unlock.
- Permanent monitoring of the microphone and cable.
- Mechanical protection against cable disconnection.
- Build-in loudspeaker for monitoring and for intercom operation between other paging stations.
- Independent additional audio input/output e.g. for audio player.
- 12 freely configurable keys with independent programmable LEDs.
- EN54-16 Certified
General information
Color | Black |
Shape | Rectangle |
Length | 200 mm |
Width | 200 mm |
Height | 49.4 mm |
Uniclass | |
CAWS | V90/590 Equipment |
SKU Code | 583520 |
Specification data - Paging microphones
Classification data | |
Standard | To BS EN 54-16. |
Loudspeaker zones | Up to 120 controls. |
Microphone | Unidirectional electret with flexible gooseneck. Guidance for specification option:
|
Control features | Selection of loudspeaker circuits, transmission of voice announcements and various gongs and alarms. |
Display features | Independent programmable LEDs. |
Connection ports | 3 x RJ45 1 x 3.5 mm audio output socket. 1 x 3.5 mm audio input socket. |
Enclosure | |
Colour | Black. |
Environmental requirements | Ambient temperature -5°C to 55°C. Air humidity <93% (non-condensing). |
Mounting method | Desktop. Embedded in the surface of a table. |
Accessories | Not required. Digital Key Module DKM plus - 583526. |
Current | 70 mA. Manufacturer guidanceCurrent consumption. |
Dimensions | 200 x 49.4 x 200 mm. Manufacturer guidanceWidth x height x depth. |
Weight | 1.42 kg. |
Literature
Literature type
583520 Digital Call Station (Paging Microphone) EN54-16 Declaration of Conformity

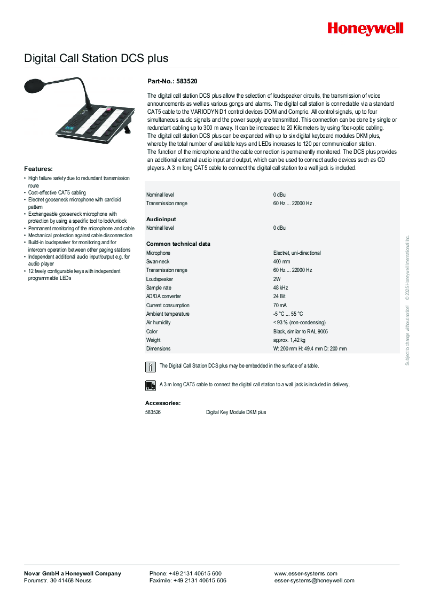

583520 Digital Call Station (Paging Microphone) EN54-16
VARIODYN ONE - EN54 Certified Voice Alarm Systems Brochure
VARIODYN D1 + Comprio + VARIODYN ONE-EU Declaration of Conformity
