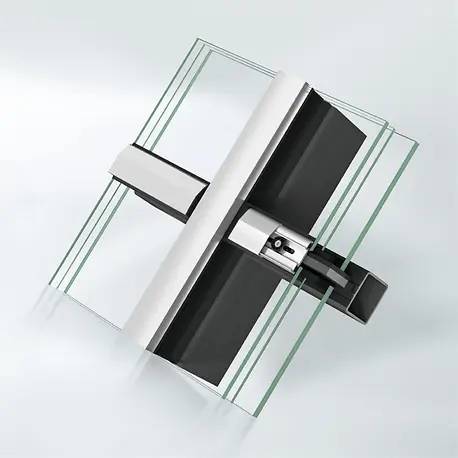

VISS Basic Roof Glazing
Verified by manufacturer 8 days ago
Modular system for steel constructions.
Application
Can be mounted on any support and that have wide spans can be created in a wide variety of ways.
Description
The VISS Basic roof glazing steel system offers attractive and economically efficient solutions for roof constructions that can be mounted on any support. Installation angle
0-75°. Available with three drainage levels.
A free choice of load-bearing profile form enables skylights with wide spans to be constructed.
A further benefit of the system is that the basic depths of the load-bearing profiles can be selected according to the structural requirements, which opens up new options in terms of planning and design.
General information
Color | Silver |
Material | Steel Glass |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | H11/110 Curtain walling |
Specification data - Stick curtain walling systems
Classification data | |
Framing | |
Frame members | Steel. |
Frame accessories | Manufacturer guidanceConsult manufacturer for options and insert requirements, or omit. |
Fasteners | Manufacturer's standard. |
Cladding units | |
Glass units | Manufacturer guidanceConsult manfuacturer for details and insert requirements.
|
Glazing accessories | Manufacturer guidanceConsult manufacturer for options and insert requirements, or omit. |
Panels and facings | |
Thermal insulation | Manufacturer guidanceConsult manufacturer for options and insert requirements, or omit. |
Internal linings | Manufacturer guidanceConsult manufacturer for options and insert requirements, or omit. |
Fasteners | Manufacturer's standard. |
Perimeter seals | Manufacturer's standard. |
System accessories | Manufacturer guidanceConsult manufacturer for options and insert requirements, or omit. |
Profiles | Load bearing profile. Manufacturer guidanceA free choice of load-bearing profile form enables skylights with wide spans to be constructed. Consult manufacturer for details and insert requirements. |
Face width | 50 mm. Guidance for specification option: Minimum 60 mm. Guidance for specification option: Maximum |
Thermal transmittance (U-Value) | Manufacturer guidanceInsert requirements or consult manufacturer for values. Uf value of frame: ≥0.82 W/m²K. |
Air permeability | AE 750. |
Watertightness | RE 1200. |
Resistance to wind load | 2 kN/m². |
Sustainability data
Country of material origin | United Kingdom |
Material | Steel Glass |
Recyclability | Recyclable |
