Schüco Façade System AOC 60 TI
Verified by manufacturer 8 days ago
Add-on façade constructions.
Application
Facades.
Description

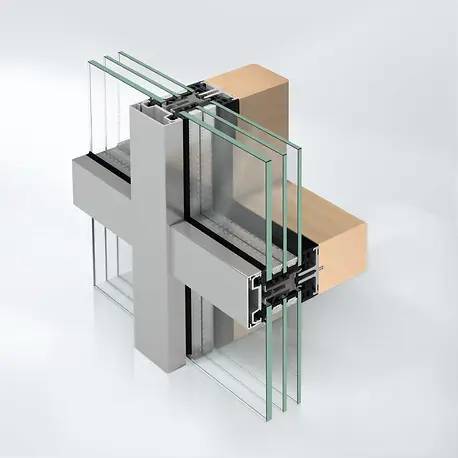

With the Schüco AOC façade system, technically and creatively impressive skylight constructions and large-scale vertical façades are possible on steel and timber sub-structures.
New system components enable simple and reliable execution, including load transfer and screw guidance, even when working with large panes and triple glazing. The add-on construction on steel combines energy-efficient, aesthetically sophisticated construction with streamlined fabrication and installation.
- CE marked.
- Standards: DIN EN 1627, DIN EN 13830, General building authority approval.
- Passive house compliant.
General information
Finish | Anodized Painted Powder-coated |
Material | Steel Aluminium |
Length | Bespoke |
Width | 60 mm Manufacturer guidanceFace width. |
Height | Bespoke |
Uniclass | |
CAWS | H11/110 Curtain walling |
Specification data - Stick curtain walling systems
Classification data | |
Framing | |
Frame members | Steel. |
U-value | Uf value of frame: ≥0.71 W/m²K. |
Face width | 60 mm (minimum). |
Glazing/ panel thickness | Maximum: 70 mm. |
Maximum weight | 1100 kg. |
Surface finish | Powder coated. Painted. Anodized. |
Air permeability | AE. |
Watertightness | RE 2550. |
Impact resistance | I5/E5. |
Burglar resistance | Up to RC3. |
Safety barrier | Suitable for safety barrier loading. |
Sustainability data
Material | Steel Aluminium |
Recyclability | Recyclable |
