Visqueen Zedex CPT High Performance DPC

Verified by manufacturer 2 months ago

Visqueen Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • DoP

    DoP

    Certificate type

A high performance co-polymer thermoplastic damp proof course and cavity tray system.

Jump to:
BIM object icon
+44 (0) 333 202 6800 Website

Application

  • Suitable for all masonry application including residential, commercial and multi-storey buildings.
  • The product is suitable for installation in external cavity walls with a masonry outer leaf, including walls with a light gauge steel frame, structural timber frame or masonry inner leaf.

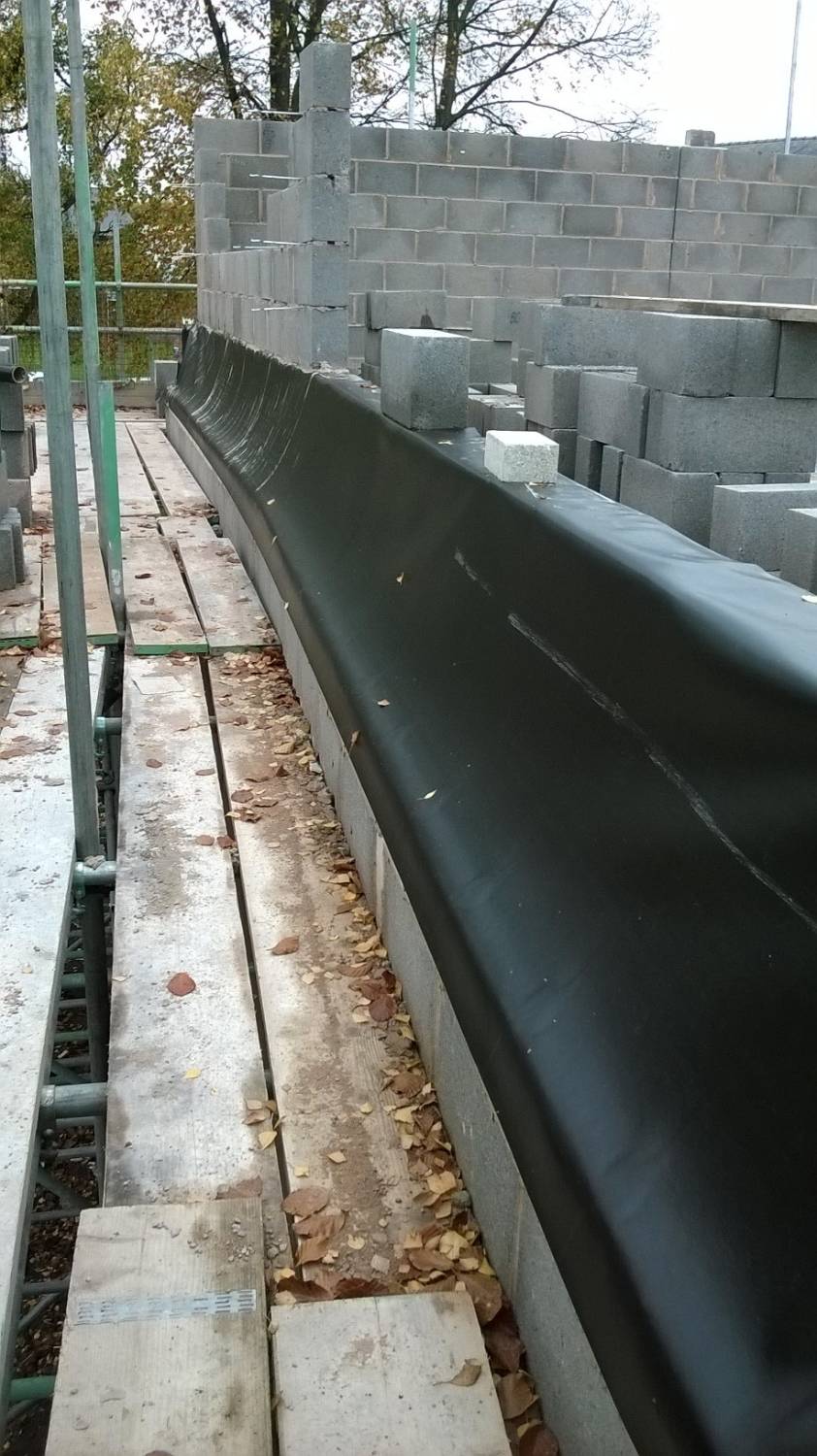

  • It can be site formed into a built-in or surface fixed cavity tray to manage the downward passage of water in cavity wall applications.
  • The DPC can also prevent harmful ground gases from entering into the cavity, and is suitable for use as a gas DPC for NHBC Amber 1 conditions or where radon gas exists.
  • It can also be used on sleeper walls below a ground floor construction e.g. beams and block floor system.

Description

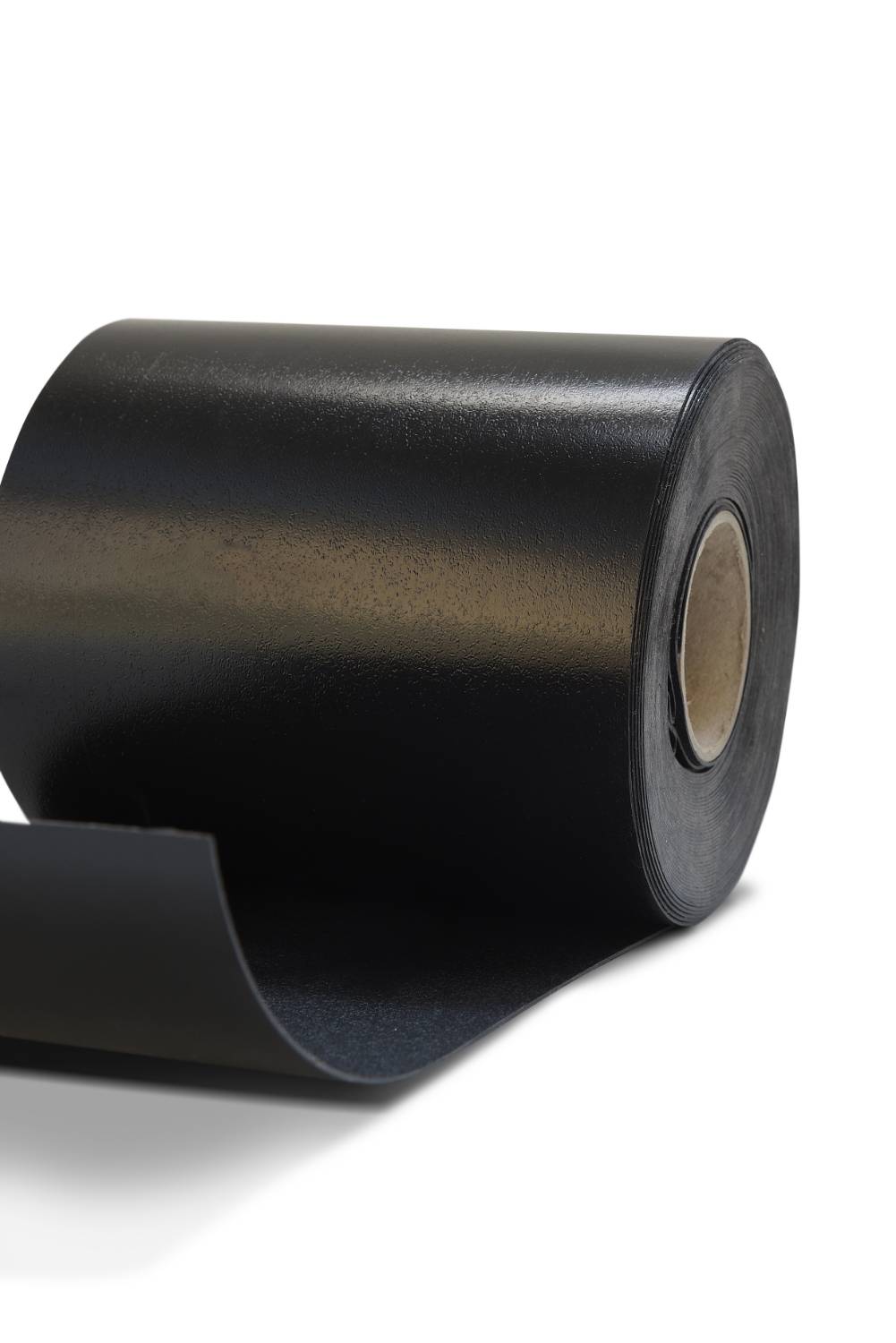

A high performance co-polymer thermoplastic (CPT) damp proof course (DPC) providing superior strength, tear resistance and flexibility and is compatible with all other Visqueen damp proofing, gas proofing and tanking protection systems.


Features and benefits:

  • Excellent performance under high compressive loads.
  • Out performs all other high performance flexible DPC and cavity tray systems.
  • Contains no hazardous pitch or PVC plasticizers making it safe and clean to handle.
  • System components for all applications including standard and bespoke preformed cavity tray (cloak) units.
  • Low permeability to Radon and Carbon Dioxide gas.
  • Manufactured under a Quality Management System approved to ISO 9001

General information

Color

Black

Finish

Textured

Material

Polyethylene

Guidance for specification option:

Co-polymer thermoplastic damp proof course and cavity tray system

Shape

Rectangle

Length

20000 mm

Width

100 mm

112.5 mm

150 mm

225 mm

300 mm

Show more

Warranty description

Guidance for specification option:

See Visqueen Pl insurance documents for details on warranty. Consult manufacturer for more details.

Uniclass

Pr_25_57_21_64 Polypropylene (PP) damp-proof courses and cavity traysPrimary

CAWS

F30/330 Damp-proof courses

F30/345 Site-formed flexible sheet cavity trays – plastics

F30/380 Junction cloaks/ stop ends for preformed dpcs/ cavity trays

F30/385 Junction cloaks/ stop ends for preformed dpcs/ cavity trays

F30/48 Damp-proof course

F30/52 Site-formed flexible sheet cavity trays

F30/58 Preformed dpc/ cavity tray junction cloaks/ stop ends

Specification data - Polypropylene (PP) damp-proof courses and cavity trays

Material

Co-polymer thermoplastic.

Third party certification

British Board of Agrément certified, 94/3059 / CE Mark EN 14909.

Colour

Black.

Product Reference

Visqueen Zedex CPT High Performance DPC

Accessories

Detailing strip.

Guidance for specification option:

Self adhesive strip for forming complex shapes and junctions.

DPC jointing tape.

Surface fixing system.

Length

20 000 mm.

Mass

750 g/m².

Joint strength

220 N.

TensileStrength

14 Mpa.

Elongation

500%.

Reaction to fire

F Class.

Tensile strength MD

17 Mpa.

Resistance to static loading - 20kg load

<20 kg.

Application temperature

Guidance for specification option:

Recommended: Should not be used below 5°C.

Sustainability data

Country of material origin

United Kingdom

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

90 %

BIM objects

BIM object icon

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit
-

1

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

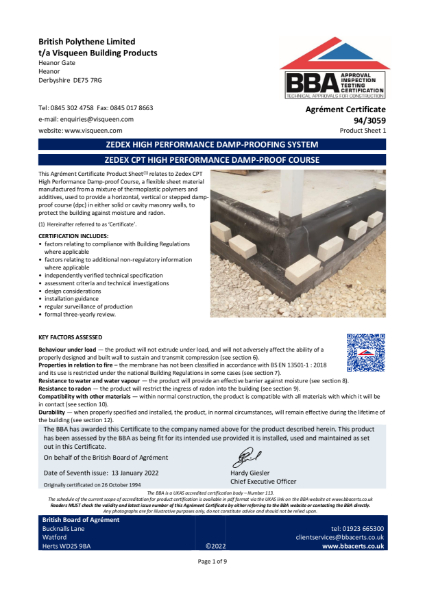

BBA Certificate Visqueen Zedex High Performance CPT DPC

DoP

DoP

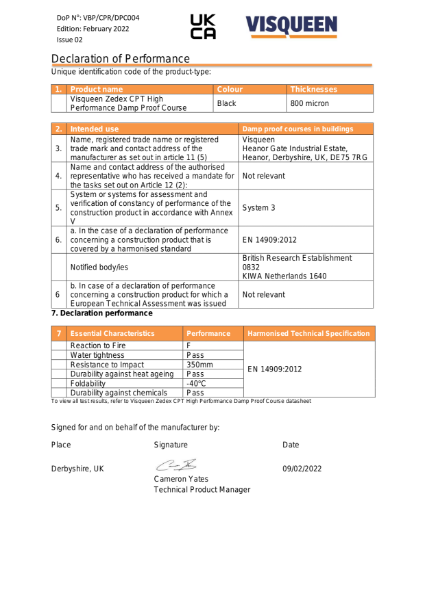

DPC UKCA Visqueen Zedex CPT High Performance Damp Proof Course Declaration of Performance

DoP

DoP

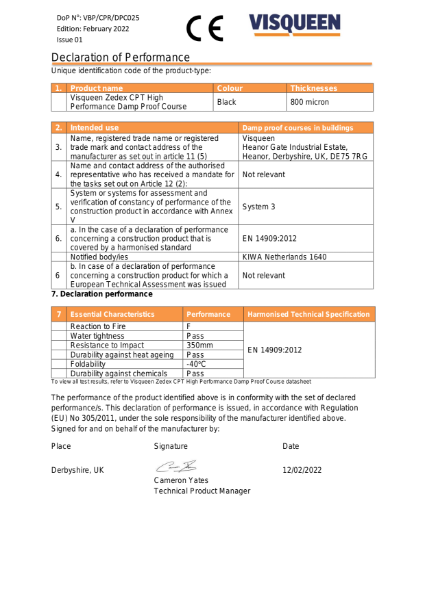

DPC CE Visqueen Zedex CPT High Performance Damp Proof Course Declaration of Performance
