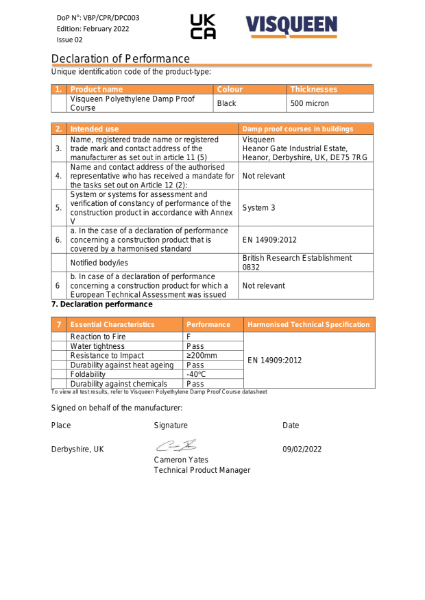

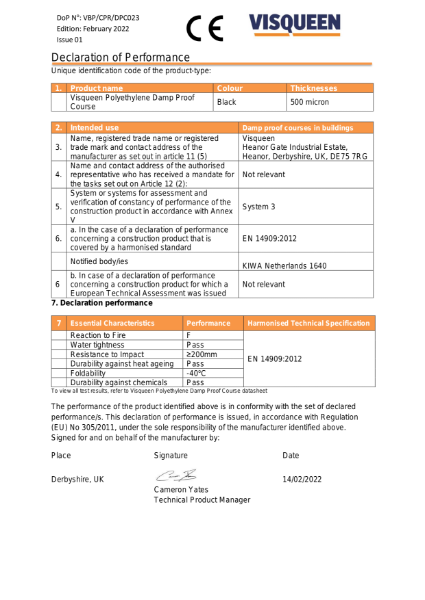

DoP
Certificate type
Polyethylene damp proof course.
Suitable for masonry wall constructions.
A black, flexible, 0.5 mm polyethylene damp proof course (DPC) designed to prevent the passage of moisture in brick and block work from external sources.
Features and benefits:
Color | Black |
Finish | Embossed |
Material | Polyethylene |
Shape | Rectangle |
Length | 30000 mm |
Width | 100 mm 112.5 mm 150 mm 225 mm 300 mm |
Warranty description | Guidance for specification option: See manufacturer's insurance document for warranty details. Consult manufacturer for further information. |
Uniclass | |
CAWS | F30/320 Damp-proof courses – plastics F30/345 Site-formed flexible sheet cavity trays – plastics F30/380 Junction cloaks/ stop ends for preformed dpcs/ cavity trays F30/385 Junction cloaks/ stop ends for preformed dpcs/ cavity trays F30/46 Damp-proof course – plastics F30/52 Site-formed flexible sheet cavity trays F30/58 Preformed dpc/ cavity tray junction cloaks/ stop ends |
Material | Polyethylene. |
Standard | To BS 6515. |
Colour | Black. |

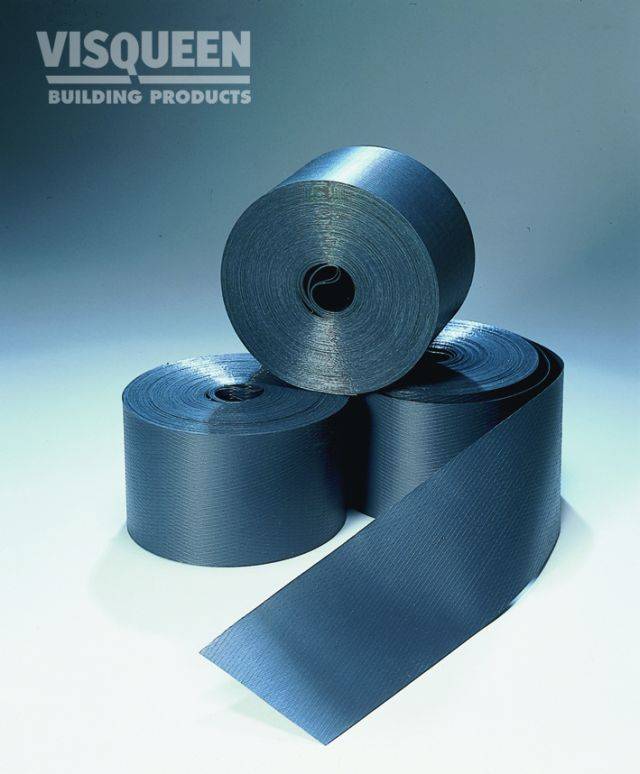

Product Reference | Visqueen Polyethylene DPC |
Accessories | None. Detailing Strip. DPC Jointing Tape. Surface DPC Fixing System. |
Length | 30 000 mm. |
Width | 100-1200 mm. |
Thickness | 0.7 mm. |
Tensile strength MD | 15 N. |
TensileStrength | 13 N. |
Tensile elongation property | 500%. |
Resistance to impact | 200 mm. |
Reaction to fire | F class. |
Application temperature | Guidance for specification option: Recommended should not be used below 5°C. |
Resistance to static loading - 20kg load | 20 kg. |
Water vapour permeability | 0.13 g/m²/d. |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Polyethylene |
Recyclability | 100% Guidance for specification option: LDPE recycling code 4. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 90 % |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
Platform | Compatible | Version |
---|---|---|
IFC2X3 | 5 | |
Revit 2015 | 5 |
