Visqueen Liquid Gas Membrane

Verified by manufacturer 3 months ago

Visqueen

High performance liquid gas membrane.

Jump to:
BOS
+44 (0) 333 202 6800 Website

Application

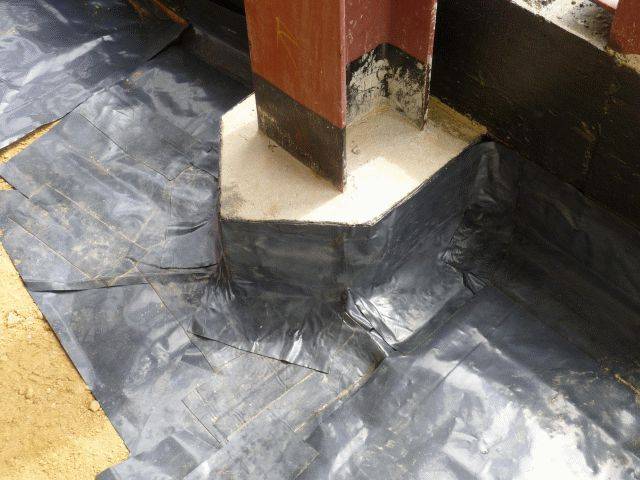

Suitable for damp proofing, gas proofing and waterproofing a variety of substrates including concrete, masonry and metal above and below ground. Used with:

  • Complex detailing applications;
  • Concrete floors and walls;
  • Masonry walls;
  • Junctions with steel stanchions.

Description

A blue-grey, single component liquid damp proof, gas proof and waterproof membrane.


Features and benefits:

  • Complies with the methane gas transmission rate, mass per unit area and thickness requirements of BS 8485:2015 + A1:2019 - industry standard for methane and carbon dioxide protection.
  • Supplied in 20kg tins.
  • Type A Barrier Membrane (Tanking Membrane) - resistant to ground water in accordance with BS 8102:2022.
  • No mixing required - use straight from the tin.
  • Ideal for complex detailing and difficult to reach areas.
  • Fully bonded system - self terminating at the perimeter of the installation.
  • Seamless application with no lap joints.
  • Can be applied to damp surfaces.

General information

Color

Blue

Grey

Manufacturer guidance

Blue-grey.

Finish

Smooth

Material

Liquid

Warranty description

Guidance for specification option:

See manufacturer's insurance document for warranty details. Consult manufacturer for further information.

Uniclass

Pr_35_31_68_16 Cold-applied bitumen solutionsPrimary

CAWS

J30/10 Cold-applied damp-proofing

J30/130 Cold-applied damp-proofing

Specification data - Cold-applied bitumen solutions

Material

Elastomeric polymer modified liquid.

Application temperature

>5 °C.

Guidance for specification option:

Temperatures below 5ºC will render the products unfit for use.

Standard

CE Mark EN 13967:2017 and BS 8485:2015 + A1:2019.

Tin size

20 kg.

Methane permeability

<40 ml/m²/d/atm.

Adhesion to concrete

1.1 N/mm².

Elongation

>100%.

TensileStrength

11 N/mm².

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Liquid

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC

IFC2X3

2

Revit

Revit 2015

4

Literature

Visqueen Product Guide 2022

Visqueen Product Guide 2022
