Visqueen Axiom UniSeal

Verified by manufacturer 3 months ago

Visqueen Third party certifications:
  • KIWA BDA

    KIWA BDA

    Certificate type

A multi-use liquid waterproofing membrane in a two part system.

Jump to:
BOS
+44 (0) 333 202 6800 Website

Application

The product is specially formulated for waterproofing below ground structures in the following applications:

  • Fillet and reinforcement material at internal and external corners
  • Sealing pipe penetrations and irregular profiles
  • Waterproofing blockwork
  • Sealing steel reinforcements
  • Sealing materials at terminations


The product is not designed for use as a decorative finish and is not suitable for long periods of exposure to sunlight.

Description

A multi-use liquid waterproofing membrane in a two part system. The first component is a bitumen-extended polyurethane fluid and the secondary part is an accelerator hardener.


Features and benefits:

  • High performance giving superior performance.
  • Perfect for detailing irregular profiles and penetrations.
  • Fast curing, elastic and flexible.
  • Suitable for use in as a stand alone system or in conjunction with other Visqueen Type A barrier membranes.
  • This system cures rapidly to give a continuous tough rubber-like, fully bonded waterproofing coating.
  • Classified as a fully bonded Type A membrane in accordance with BS 8102:2022
  • Product sold tin within a tin, weighing at 15.6 kg.

General information

Color

Black

Finish

Smooth

Material

Polyurethane

Guidance for specification option:

A bitumen-extended polyurethane fluid with an accelerator hardener.

Shape

Other

Uniclass

Pr_35_31_68_16 Cold-applied bitumen solutionsPrimary

CAWS

J30/10 Cold-applied damp-proofing

J30/110 Cold-applied tanking

J30/130 Cold-applied damp-proofing

Specification data - Cold-applied bitumen solutions

Third party certification

BDA Certified.

Guidance for specification option:

BDA certifcate BAB 18-077/02/A.

Material

Bitumen-extended polyurethane fluid / Accelerator hardener.

Application temperature

Cold.

Guidance for specification option:

Air and Surface Temperature should be above 5°C.

Product Reference

Visqueen Axiom UniSeal

Service temperature

-40 to +80°C.

Hardness

Shore A, ASTM D2240/ DIN 53505/ ISO R868, 25.

Elongation to break

> 500%.

Tensile strength (to EN ISO 527)

4 N/mm².

Sustainability data

Country of material origin

Greece

Material

Polyurethane

Guidance for specification option:

A bitumen-extended polyurethane fluid with an accelerator hardener.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit
-

1

Third party certifications

KIWA BDA

KIWA BDA

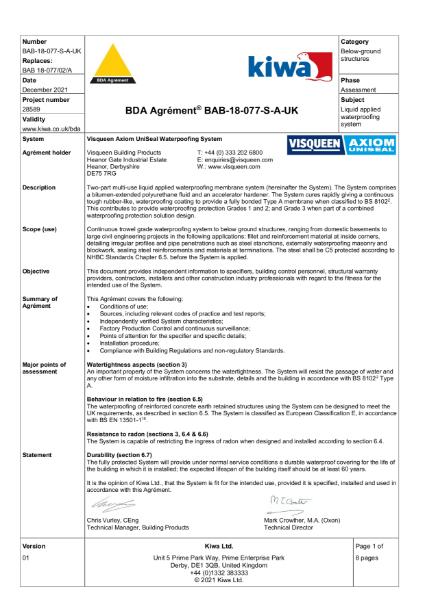

Visqueen Axiom Uniseal BDA Certificate

Literature

Visqueen Product Guide 2022

Visqueen Product Guide 2022
