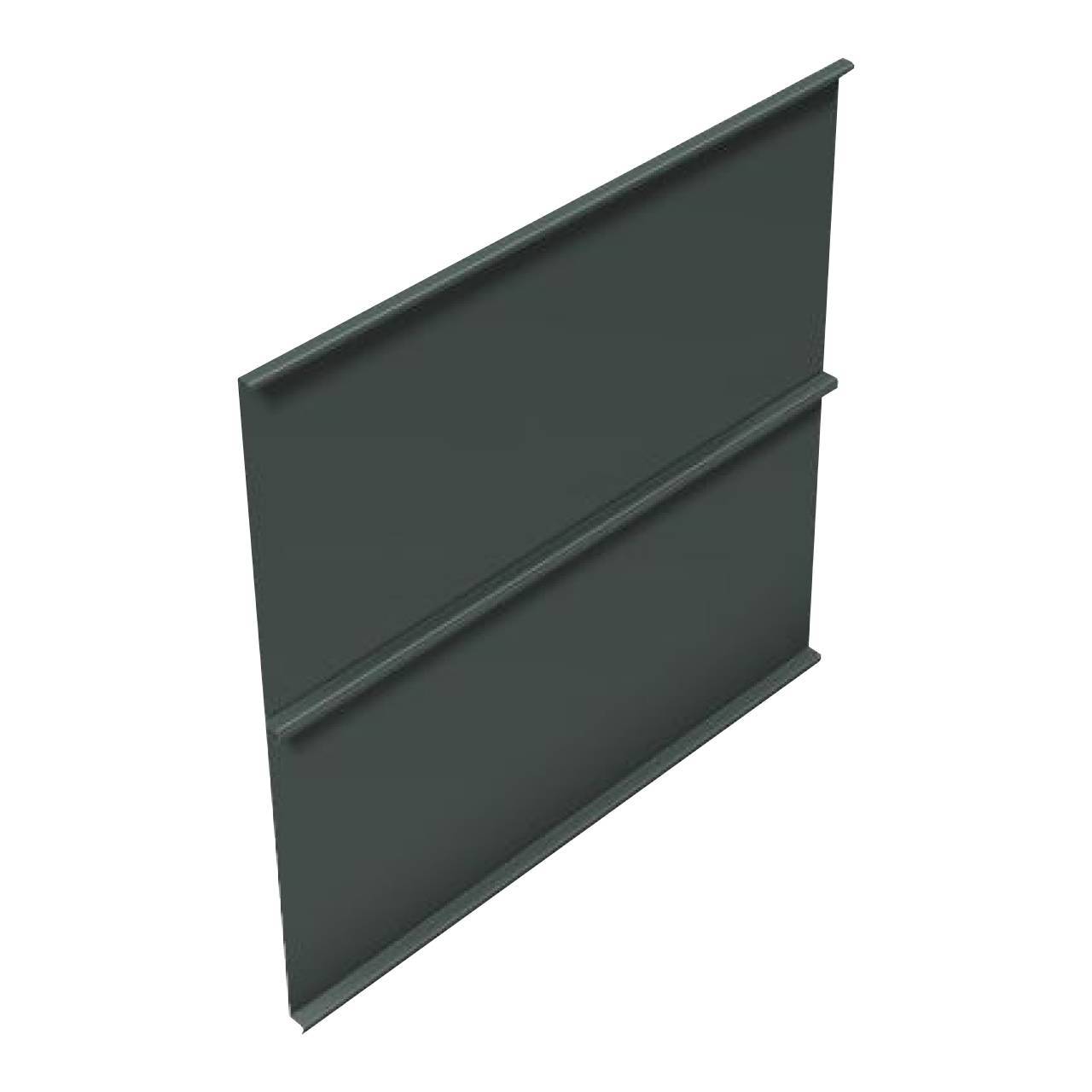

Vieo Warm Roof TD - Aluminium Sheet - Insulated Standing Seam Roof System

Verified by manufacturer today

Euroclad Group Ltd

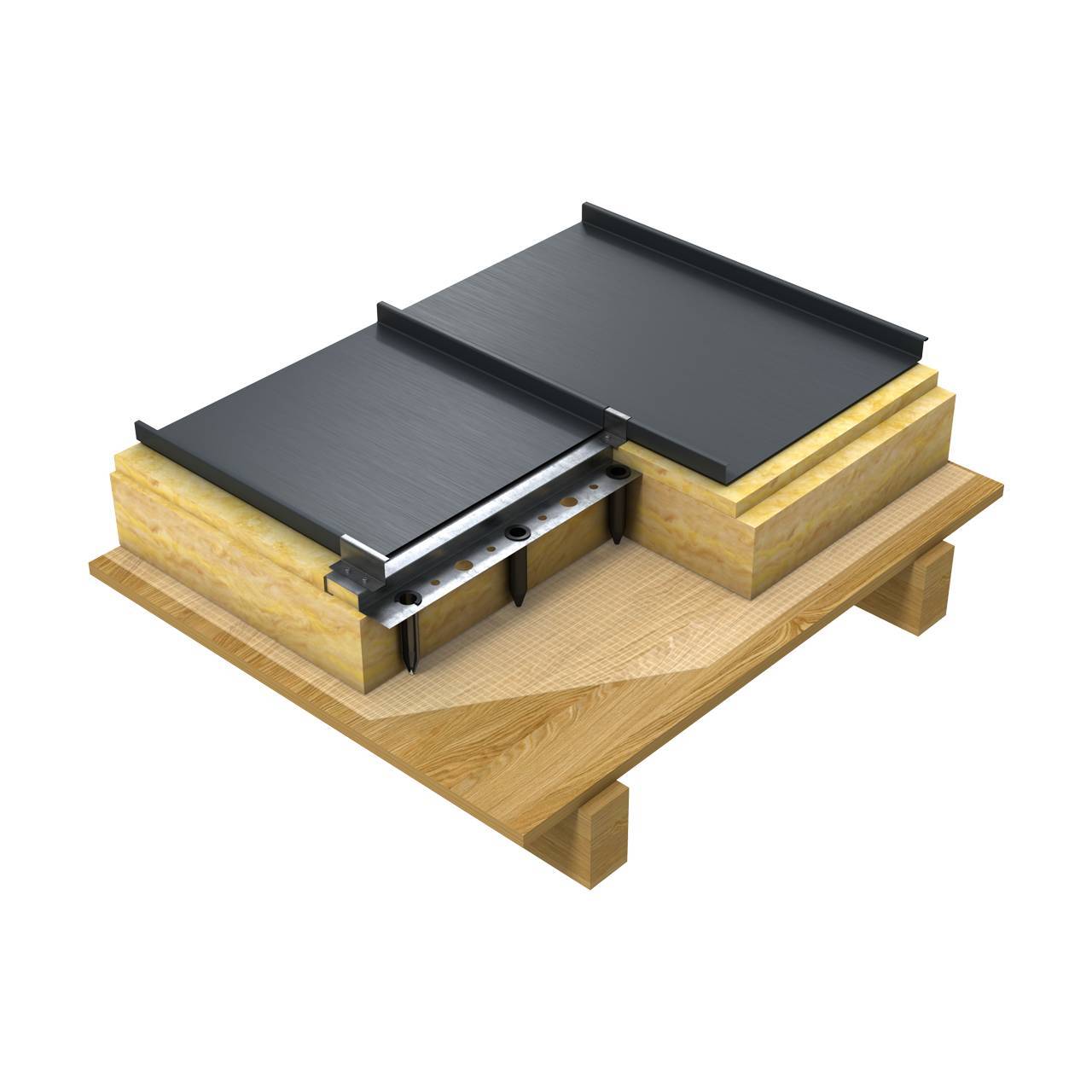

Vieo Warm Roof TD is a warm roof system designed for use with a Timber Deck substrate as a support structure.

Jump to:
Request BIM
+44 (0)2922 010101 Website

Application

Designed for use with a suitable continuous substrate such as 18 mm plywood or 15 mm OSB board to support the RocSlab and a VCL located at the warm side of the insulation.

Suitable for a wide range of building applications, such as residential, commercial and public buildings.

Description

Vieo Warm Roof TD is a warm roof system designed for use with a Timber Deck substrate as a support structure.

Designed for use with a suitable continuous substrate such as 18 mm plywood or 15 mm OSB board to support the RocSlab and a VCL located at the warm side of the insulation.

Features and benefits:

  • Vieo systems are available in straight, curved and tapered sheet options, enabling creation of creative architectural forms.
  • Vieo sheets are available in variable widths allowing for feature band design.
  • Simple, guaranteed alternative to traditional systems.
  • Can be applied to roof and walls (walls specified separately).
  • Hidden fixings for a clean, attractive finish.
  • Fast construction aided by the pre-punched Euroclad RocBar.
  • External sheets can be factory manufactured or produced on-site using specialist mobile equipment.
  • Can be used to contribute to Passivhaus standards.
  • External sheet available in a range of coatings and colours.

A steel sheet, self-supporting system is also available, specified separately.

Matching wall systems and cold roof systems and also available, specified separately.

General information

Color

Gold

Grey

Black

Blue

Red

Finish

Coated

Matt

Smooth

PVdF

Material

Aluminium

Mineral wool

Shape

Other

Guidance for specification option:

Sinusoidal.

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

25 year

Guidance for specification option:

A Vieo system guarantee is available for up to 25 years; consult manufacturer for details.

Uniclass

Ss_30_40_50_10 Aluminium sheet fully supported roof covering systemsPrimary

CAWS

H31/10 Metal

H31/120 Metal profiled sheet self-supporting cladding/ roof covering

Specification data - Aluminium sheet fully supported roof covering systems

Classification data

System performance

Guidance for specification option:

Insert requirements.

Manufacturer guidance

Reaction to fire to BS EN 13501-1:2018 (inc. BS EN ISO 11925-2:2020 + BS EN 13823:2020):

Classification on component basis only, see individual component guidance or consult manufacturer for details.

Insulation

RocSlab 50 mm and RocSlab25.

Guidance for specification option:

System depth: 104.2 mm.

System weight: 17.95 kg/m².

U-value from calculation: NPD.

RocSlab 50 mm + 50 mm and RocSlab25.

Guidance for specification option:

System depth: 154.2 mm.

System weight: 25.01 kg/m².

U-value from calculation: NPD.

RocSlab 115 mm and RocSlab25.

Guidance for specification option:

System depth: 169.2 mm.

System weight: 25.04 kg/m².

U-value from calculation: 0.25 W/m²K.

RocSlab 150 mm and RocSlab25.

Guidance for specification option:

System depth: 204.2 mm.

System weight: 29.31 kg/m².

U-value from calculation: 0.20 W/m²K.

RocSlab 50 mm + 115 mm and RocSlab25.

Guidance for specification option:

System depth: 219.2 mm.

System weight: 32.09 kg/m².

U-value from calculation: 0.19 W/m²K.

RocSlab 170 mm and RocSlab25.

Guidance for specification option:

System depth: 224.2 mm.

System weight: 31.80 kg/m².

U-value from calculation: 0.18 W/m²K.

RocSlab 50 mm + 150 mm and RocSlab25.

Guidance for specification option:

System depth: 254.2 mm.

System weight: 36.36 kg/m².

U-value from calculation: 0.16 W/m²K.

RocSlab 205 mm and RocSlab25.

Guidance for specification option:

System depth: 259.2 mm.

System weight: 36.11 kg/m².

U-value from calculation: 0.15 W/m²K.

RocSlab 50 mm + 170 mm and RocSlab25.

Guidance for specification option:

System depth: 274.2 mm.

System weight: 38.84 kg/m².

U-value from calculation: 0.14 W/m²K.

RocSlab 115 mm + 115 mm and RocSlab25.

Guidance for specification option:

System depth: 284.2 mm.

System weight: 39.21 kg/m².

U-value from calculation: 0.14 W/m²K.

RocSlab 50 mm + 205 mm and RocSlab25.

Guidance for specification option:

System depth: 309.2 mm.

System weight: 43.16 kg/m².

U-value from calculation: 0.13 W/m²K.

RocSlab 115 mm + 150 mm and RocSlab25.

Guidance for specification option:

System depth: 319.2 mm.

System weight: 43.48 kg/m².

U-value from calculation: 0.13 W/m²K.

RocSlab 115 mm + 170 mm and RocSlab25.

Guidance for specification option:

System depth: 339.2 mm.

System weight: 45.92 kg/m².

U-value from calculation: 0.11 W/m²K.

RocSlab 150 mm + 150 mm and RocSlab25.

Guidance for specification option:

System depth: 354.2 mm.

System weight: 47.86 kg/m².

U-value from calculation: 0.11 W/m²K.

RocSlab 150 mm + 170 mm and RocSlab25.

Guidance for specification option:

System depth: 374.2 mm.

System weight: 50.31 kg/m².

U-value from calculation: 0.10 W/m²K.

RocSlab 115 mm + 205 mm and RocSlab25.

Guidance for specification option:

System depth: 374.2 mm.

System weight: 50.31 kg/m².

U-value from calculation: 0.10 W/m²K.

RocSlab 170 mm + 170 mm and RocSlab25.

Guidance for specification option:

System depth: 394.2 mm.

System weight: 52.93 kg/m².

U-value from calculation: 0.10 W/m²K.

RocSlab 150 mm + 205 mm and RocSlab25.

Guidance for specification option:

System depth: 409.2 mm.

System weight: 54.76 kg/m².

U-value from calculation: 0.10 W/m²K.

RocSlab 170 mm + 205 mm and RocSlab25.

Guidance for specification option:

System depth: 429.2 mm.

System weight: 57.20 kg/m².

U-value from calculation: 0.09 W/m²K.

Manufacturer guidance

Insulation lambda claim - thermal: 0.036 W/m·K.

25 mm-thick RocSlab between RocBars.

Air and vapour control layer

Euroclad VCL.

Guidance for specification option:

Fasteners: Manufacturer's standard.

Sealing: Euroclad VCL Sealing Tape.

Substrate

Timber deck.

Cavity barriers

Not required for this Vieo System.
If desired, specification and detailing principles should be sought from the cavity barrier supplier.

Guidance for specification option:

Insert further details or omit cavity barrier requirements as applicable.

Manufacturer guidance

Cavity fire barriers and/ or firestops.

Aluminium

0.90 mm 3105 aluminium alloy.
0.90 mm 3004 aluminium alloy.

Longitudinal joints

-

Form

Manufacturer's standard.

Fasteners to substrate

Stainless steel fixings (Vieo sliding clips and Vieo clip fixings).

Guidance for specification option:

  • Vieo sliding clips are for attachment of Vieo sheets; Vieo clip fixings are for attachment of Vieo sliding clips to various substrates.
  • Both are Class A1 to BS EN 13501-1:2018.

Eave details

-

Form

Vieo Closures.

Guidance for specification option:

For completion of detailing and ends and edges of Vieo sheets.

Aluminium, Class A1 to BS EN 13501-1:2018.

Verge details

-

Form

Vieo Closures.

Guidance for specification option:

For completion of detailing and ends and edges of Vieo sheets.

Aluminium, Class A1 to BS EN 13501-1:2018.

Material

As roof covering.

Ridge and hip details

-

Form

Vieo Closures.

Guidance for specification option:

For completion of detailing and ends and edges of Vieo sheets.

Aluminium, Class A1 to BS EN 13501-1:2018.

System accessories

Euroclad Separation Tape.
None.

Colour/ Finish

Arconic PVDF.

Guidance for specification option:

  • To BS EN 13501-1:2018: A1 (RA22-0049).
  • To BS EN 13501-5:2016: BROOF(T4) (Commission Decision 2000/553/EC).

Arconic Polyester Polyamide (ARS).

Guidance for specification option:

  • To BS EN 13501-1:2018: A1 (RA21-0210).
  • To BS EN 13501-5:2016: BROOF(T4) (Commission Decision 2000/553/EC).

Arconic Duragloss 5000.

Guidance for specification option:

  • To BS EN 13501-1:2018: A1 (RA21-0210).
  • To BS EN 13501-5:2016: BROOF(T4) (Commission Decision 2000/553/EC).

System depth

Manufacturer's standard.

Guidance for specification option:

Dependent on insulation thickness; see Thermal insulation guidance for details.

Weight

Manufacturer's standard.

Guidance for specification option:

Dependent on insulation thickness; see Thermal insulation guidance for details.

Orientation

Lengthwise, downslope.

Sheet width

Cover width: 454 mm.

Guidance for specification option:

As standard.

Can also be supplied in variable widths to give a concertina-style effect (on request).

Third-party certification

BBA Certificate 04/4151 Product Sheet 4.

Spacers

Euroclad RocBar.

Manufacturer guidance

RocSlab25 insulation between bars; see Thermal insulation.

Sustainability data

Material

Aluminium
Mineral wool

Literature

Vieo Wall and Roof Brochure

Vieo Wall and Roof Brochure
