Vieo Cold Roof TD - Aluminium Sheet - Standing Seam Roof Covering System
Verified by manufacturer today

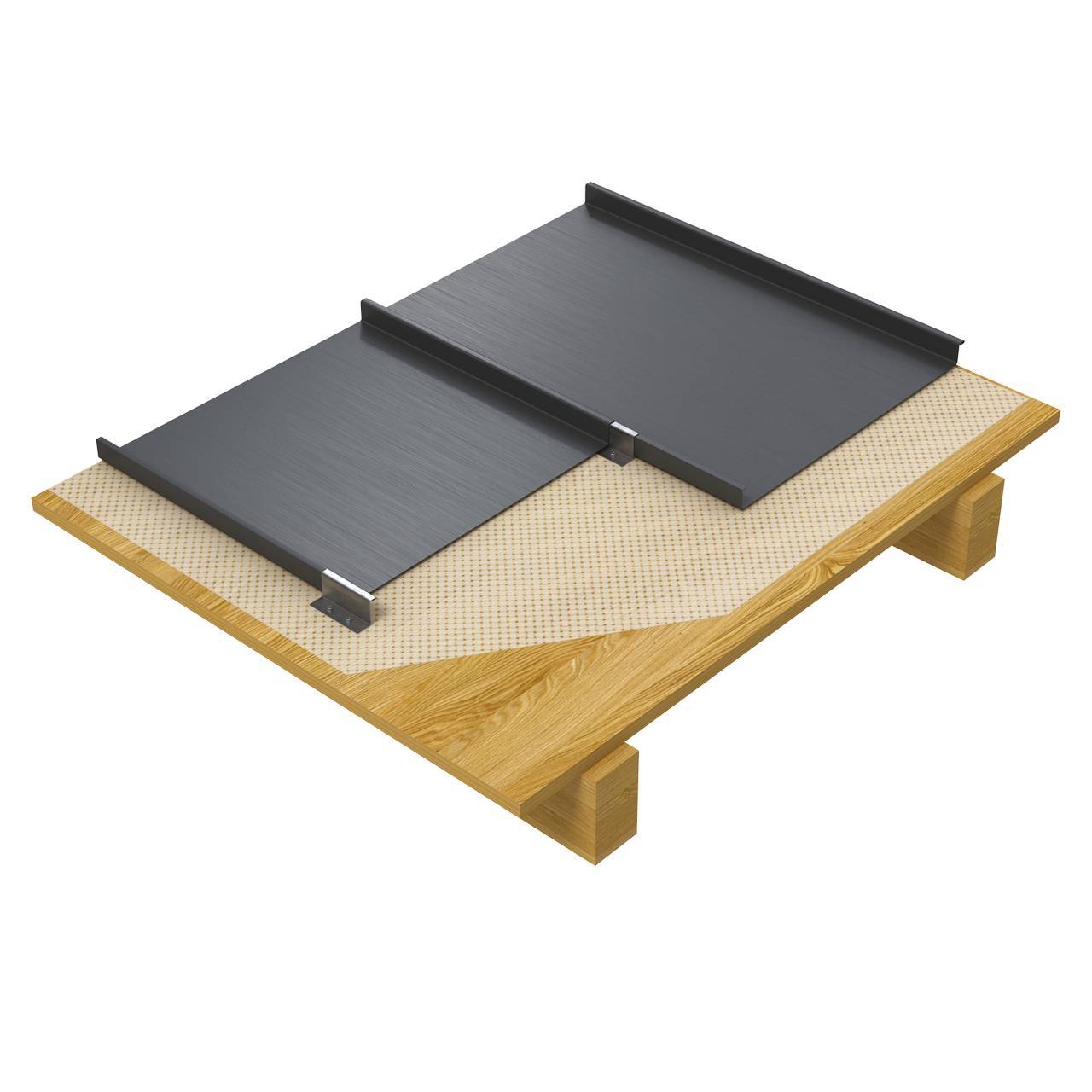

Vieo Cold Roof TD is a cold roof system designed for use with a Timber Deck substrate as a support structure.
Application
Vieo Cold Roof TD is a cold roof system designed for use with a Timber Deck substrate as a support structure.
Suitable for a wide range of building applications, such as residential, commercial and public buildings.
Description
Vieo Cold Roof TD is a cold roof system designed for use with a Timber Deck substrate as a support structure.
Features and benefits:

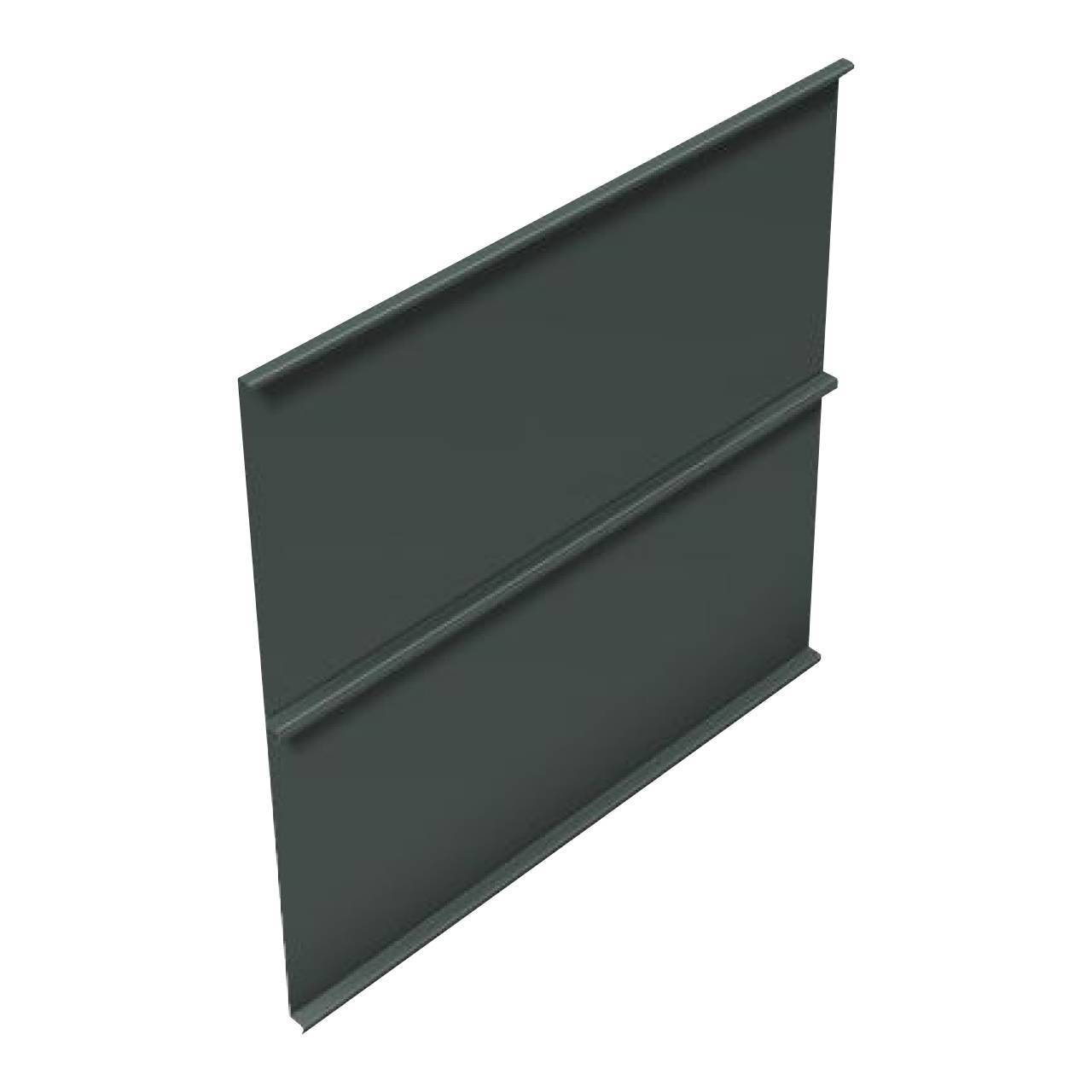

- Interlocking aluminium sheets.
- BBA certified.
- Vieo systems are available in straight, curved and tapered sheet options, enabling creation of creative architectural forms.
- Vieo sheets are available in variable widths allowing for feature band design.
- To be installed lengthwise downslope as standard.
- Simple, guaranteed alternative to traditional systems.
- Can be applied to roof and walls (walls specified separately).
- Hidden fixings for a clean, attractive finish.
- External sheets can be factory manufactured or produced on-site using specialist mobile equipment.
A steel sheet, self-supporting system is also available, specified separately.
Matching wall systems, or an alternative roof system for use with Timber Battens (TB) as a support structure are also available, both specified separately.
General information
Color | Gold Grey Black Blue Red |
Finish | Coated Matt Textured Smooth PVdF |
Material | Aluminium |
Shape | Other Guidance for specification option: Sinusoidal. |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 25 year Guidance for specification option: A Vieo system guarantee is available for up to 25 years; consult manufacturer for details. |
Uniclass | |
CAWS | H31/120 Metal profiled sheet self-supporting cladding/ roof covering H31/10 Metal |
Specification data - Aluminium sheet fully supported roof covering systems
Classification data | |
System performance | Guidance for specification option: Insert requirements. Manufacturer guidanceReaction to fire to BS EN 13501-1:2018 (inc. BS EN ISO 11925-2:2020 + BS EN 13823:2020): Classification on component basis only, see individual component guidance or consult manufacturer for details. |
Membrane | Euroclad B Breather Membrane. Guidance for specification option: Joint sealant: manufacturer's standard. |
Insulation | Not applicable. |
Substrate | Timber deck. |
Cavity barriers | Not required for this Vieo System. If desired, specification and detailing principles should be sought from the cavity barrier supplier. Guidance for specification option: Insert further details or omit cavity barrier requirements as applicable. Manufacturer guidanceCavity fire barriers and/ or firestops. |
Aluminium | 0.90 mm 3105 aluminium alloy. 0.90 mm 3004 aluminium alloy. |
Longitudinal joints | |
Fasteners to substrate | Stainless steel fixings (Vieo sliding clips and Vieo clip fixings). Guidance for specification option:
|
Eave details | |
Form | Vieo Closures. Guidance for specification option: For completion of detailing and ends and edges of Vieo sheets. Aluminium, Class A1 to BS EN 13501-1:2018. |
Verge details | |
Form | Vieo Closures. Guidance for specification option: For completion of detailing and ends and edges of Vieo sheets. Aluminium, Class A1 to BS EN 13501-1:2018. |
Material | As roof covering. |
Ridge and hip details | |
Form | Vieo Closures. Guidance for specification option: For completion of detailing and ends and edges of Vieo sheets. Aluminium, Class A1 to BS EN 13501-1:2018. |
System accessories | Euroclad Separation Tape. None. |
Colour/ Finish | Arconic PVDF. Guidance for specification option:
Arconic Polyester Polyamide (ARS). Guidance for specification option:
Arconic Duragloss 5000. Guidance for specification option:
|
System depth | 29.15 mm. |
Weight | 3.27 kg/m². |
Orientation | Lengthwise, downslope. |
Sheet width | Cover width: 454 mm. Guidance for specification option: As standard. Can also be supplied in variable widths to give a concertina-style effect (on request). |
Third-party certification | BBA Certificate 04/4151 Product Sheet 4. |
Sustainability data
Material | Aluminium |
