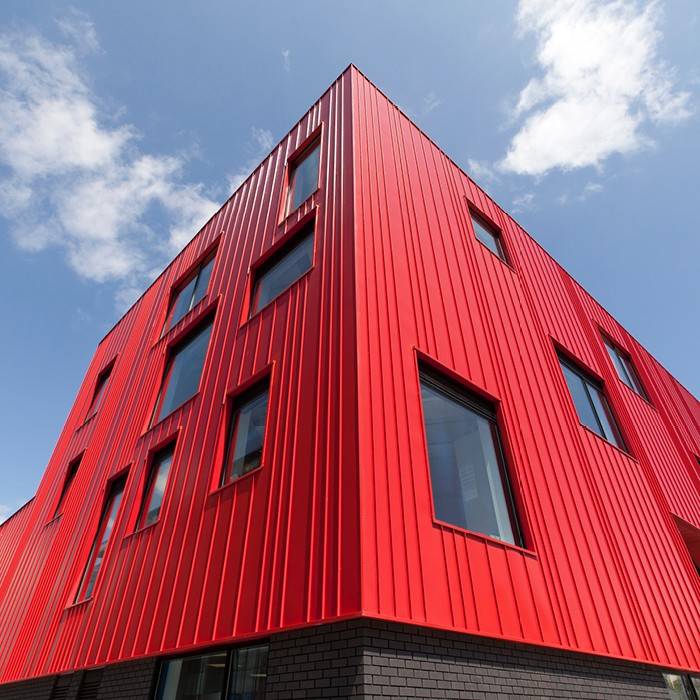

Vieo Cold Wall TD - Steel Sheet - Standing Seam Wall Covering System

Name: Vieo Cold Wall TD - Steel Sheet - Standing Seam Wall Covering System
Brand: Euroclad Group Ltd
SKU: pMEdtJBwkXQZ32rx6WBkvw

Verified by manufacturer 1 month ago

Euroclad Group Ltd

Vieo Cold Wall TD is a cold wall system designed for use with a Timber Deck substrate as a support structure.

Jump to:

Request BIM

+44 (0)2922 010101 Website

Application

Vieo Cold Wall TD is a cold wall system designed for use with a Timber Deck substrate as a support structure.

Suitable for a wide range of building applications, such as residential, commercial and public buildings.

Description

Vieo Cold Wall TD is a cold wall system designed for use with a Timber Deck substrate as a support structure.

Features and benefits:

Vieo systems are available in straight, curved and tapered sheet options, enabling creation of creative architectural forms.
Vieo sheets are available in variable widths allowing for feature band design.
Vieo wall sheets can be installed vertically or horizontally as standard.
Simple, guaranteed alternative to traditional systems.
Can be applied to roof and walls (roofs specified separately).
Hidden fixings for a clean, attractive finish.
Fast construction aided by the pre-punched Euroclad RocBar.
External sheets can be factory manufactured or produced on-site using specialist mobile equipment.
External steel sheet available in a range of coatings and colours.

An aluminium sheet, fully-supported system is also available, specified separately.

Matching roof systems and warm wall systems and also available, specified separately.

General information

Color	Gold Grey Black Blue Red
Finish	Coated Matt Textured Smooth
Material	Steel
Shape	Other Guidance for specification option: Sinusoidal.
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	25 year Guidance for specification option: A Vieo system guarantee is available for up to 25 years; consult manufacturer for details.

Uniclass	Ss_25_20_68_50 Metal profiled sheet self-supporting cladding systemsPrimary
CAWS	H31/10 Metal H31/120 Metal profiled sheet self-supporting cladding/ roof covering

Specification data - Metal profiled sheet self-supporting cladding systems

Classification data
System performance	Guidance for specification option: Insert requirements. Manufacturer guidance Reaction to fire to BS EN 13501-1:2018 (inc. BS EN ISO 11925-2:2020 + BS EN 13823:2020): Classification on component basis only, see individual component guidance or consult manufacturer for details.
Acoustic insulation	Not applicable.
Thermal insulation	Not applicable.
Breather membrane	-
Material	Euroclad B Breather Membrane.
Joint sealant	Manufacturer's standard.
Cavity fire barriers	-
Horizontal barriers	Not required for this Vieo System. If desired, specification and detailing principles should be sought from the cavity barrier supplier. Guidance for specification option: Insert further details or omit cavity barrier requirements as applicable.
Vertical barriers	Not required for this Vieo System. If desired, specification and detailing principles should be sought from the cavity barrier supplier. Guidance for specification option: Insert further details or omit cavity barrier requirements as applicable.
Firestops	Not required for this Vieo System. If desired, specification and detailing principles should be sought from the firestop supplier. Guidance for specification option: Insert further details or omit firestop requirements as applicable.
External sheets	-
Material	0.70 mm steel, S220 GD + ZA255. 0.70 mm steel, S220 GD + Z275.
Primary fasteners	Stainless steel fixings (Vieo sliding clips and Vieo clip fixings). Guidance for specification option: Vieo sliding clips are for attachment of Vieo sheets; Vieo clip fixings are for attachment of Vieo sliding clips to various substrates. Both are Class A1 to BS EN 13501-1:2018.
End and side laps	Vieo Closures. Guidance for specification option: For completion of detailing and ends and edges of Vieo sheets. Aluminium, Class A1 to BS EN 13501-1:2018.
System accessories	Euroclad Separation Tape. None.
Colour/ Finish	Tata Steel Colorcoat Prisma®. Guidance for specification option: To BS EN 13501-1:2018: A1 (WF 428213). To BS EN 13501-5:2016: B_ROOF(T4) (Commission Decision 2000/553/EC). Tata Steel Colorcoat Prisma® - Textured. Guidance for specification option: To BS EN 13501-1:2018: A2-s1, d0 (WF 504598). To BS EN 13501-5:2016: B_ROOF(T4) (Commission Decision 2000/553/EC). Tata Steel Colorcoat HPS200 Ultra®. Guidance for specification option: To BS EN 13501-1:2018: C-s2,d0 (WF 501358). To BS EN 13501-5:2016: B_ROOF(T4) (19942L).
System depth	29.06 mm.
Weight	6.74 kg/m².
Orientation	Vertical. Horizontal.
Sheet width	Cover width: 454 mm. Guidance for specification option: As standard. Can also be supplied in variable widths to give a concertina-style effect (on request).
