Access Panels - Via - Access panels to conceal services

Verified by manufacturer 2 months ago

SELO Third party certifications:
  • Warringtonfire

    Warringtonfire

    Certificate type

Pre-hung, high performance access panels for walls and ceilings.

Jump to:
+44 (0)203 8800339 Website

Application

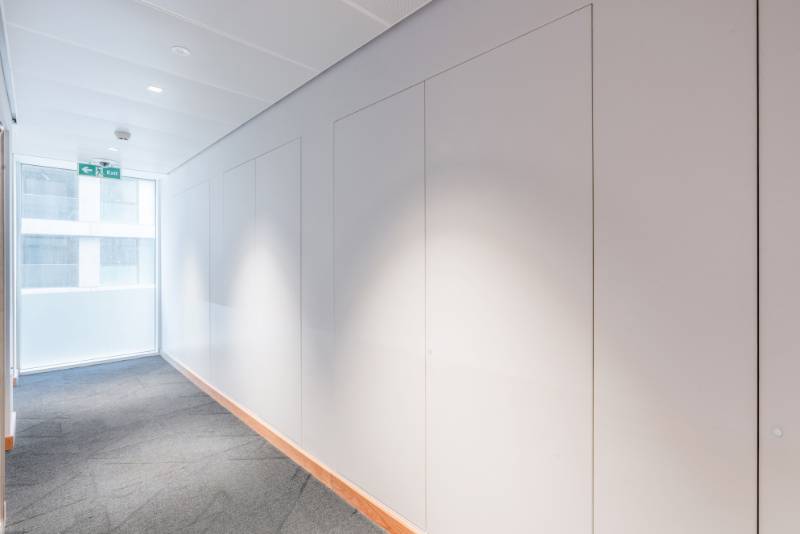

Design to hide away access requirements, suitable for installation in walls or ceilings.

Description

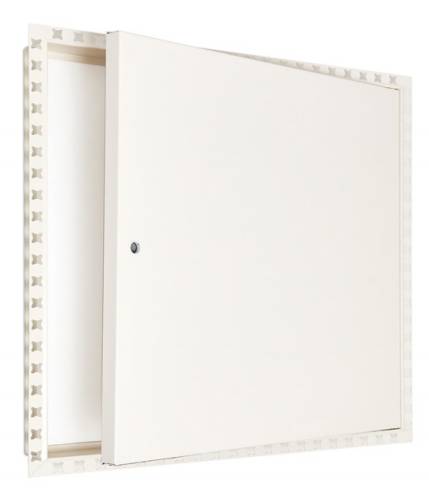

Fully pre-hung steel access panel with beaded or picture frame flanges.


Features and benefits:

  • Ready to install, with all ironmongery already fitted.
  • Fire resistance available of up to two hours (E120) tested to EN 1634-1.
  • Acoustic rated up to 41 dB.
  • Custom sizing.
  • Comes in single and double configuration.
  • Panels can be provided to Smooth PPC, Dead Matt for painting over, and prepared to take tiles up to 25 mm thick.
  • Locking can either be with a budget lock, or a touch latch.

General information

Color

White

Other

Guidance for specification option:

Any RAL colour.

Finish

Smooth

Guidance for specification option:

Pre-finished.

Textured

Guidance for specification option:

For use when overpainting or wallpapering on site.

Primed

Manufacturer guidance

Also available in plasterboard faced (walls only) for plastering and painting on site.

Material

Steel

Shape

Rectangle

Square

Length

Bespoke

Guidance for specification option:

Minimum and maximum size depends on the Via / access panel type and application.

Manufacturer guidance

Minimum and maximum size depends on the Via / access panel type and application.

Width

Bespoke

Guidance for specification option:

Minimum and maximum size depends on the Via / access panel type and application.

Manufacturer guidance

Minimum and maximum size depends on the Via / access panel type and application.

Height

Bespoke

Guidance for specification option:

Minimum and maximum size depends on the Via / access panel type and application.

Manufacturer guidance

Minimum and maximum size depends on the Via / access panel type and application.

Warranty description

Two year

Uniclass

Pr_30_59_36_01 Access panelsPrimary

CAWS

K10/57 Encasement on timber framing

K10/55 Encasement system (metal framing)

K10/41 Wall lining system (metal furrings)

K10/35 Wall lining system (metal framing)

K10/45 Wall lining system (adhesive)

K10/50 Suspended ceiling system on metal framing

K10/30 Metal stud

K10/15 Lining on timber

K10/25 Ceiling lining on timber

K10/430 Access panels

Specification data - Access panels

Fire performance

-

Fire resistance

Non fire-rated.

60 minutes.

120 minutes to BS EN 1634-1: 2014.

Position

Ceiling-mounted.

Wall-mounted.

Size

-

Manufacturer guidance

Sizes depend on VIA / access panel type and application.

Project specific sizes can be manufactured to order.

Frame

Concealed.

Visible frame.

Guidance for specification option:

On request. Consult manufacturer and insert requirements.

Panel

-

Material

Steel plaster boarded tile boarded.

Integral finish

Powder-coated.

Latch or lock type

Budget lock; three-point square drive lock; Euro-cylinder locking.

Guidance for specification option:

Euro-cylinder locking (works with the 3-point lock) – cylinder not included.

Manufacturer guidance

Lock types are determined by manufacturer as dependant on door size and fire rating.

Operation

Concealed steel hinges, outward opening.

Integral accessories

Acoustic sealing strips to frame.

Smoke sealing strips to frame.

Intumescent strips to frame.

Hinges

Pivot hinge.

Pin hinge.

Panel hinge.

Piano hinge.

Thickness

24 mm.

Guidance for specification option:

Standard.

27 mm.

AcousticRating

Acoustic rating up to 41 dB.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

Metal 90% recyclable, other materials 75% recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

90 %

Third party certifications

Warringtonfire

Warringtonfire

Via Access Panels Types 8C, 12C, 8W and 12W E60 Field of Application Report

Warringtonfire

Warringtonfire

Via Uninsulated Access Panels E60/120 Field of Application Report
