Vertical Steel Tree Guards - 'The Lakes' Range
Verified by manufacturer 4 months ago
CONIS185A - Coniston 500 mm
CONIS185A - Coniston 500 mm

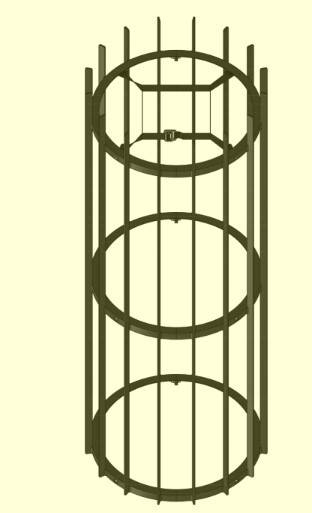

'The Lakes' range of vertical metal tree guards available in a range of sizes and designs.
Application
- Urban tree planting applications.
- The Coniston, Ennerdale, Thirlmere, Ullswater and Windermere tree guards are suitable for use with the Bankside Guard Seat.
Description

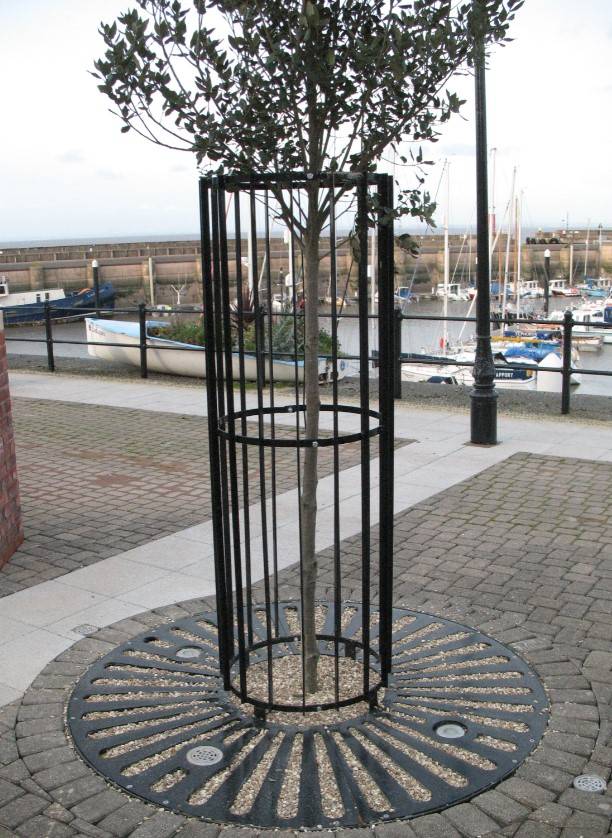

‘The Lakes’ range of robust tree guards provide protection for young trees from damage caused by vehicles, bicycles, lawn mowers and other equipment, as well as vandalism.
The guards can be fitted to most GreenBlue Urban tree grilles or ground fixed when used in soft landscape.
Features and benefits:
- Large diameter to accommodate mature tree establishment.
- Protection against vandalism and accidental damage.
- Angle rings provide high level of tree protection and shape retention.
- Tree guard tie prevents damage to the bark/trunk.
- Theft resistant.
- Fully compatible with most GreenBlue Urban tree grilles.
- Engineered angle profile rings.
- Integral four-point tree guard tie kit.
- Stainless steel fixings located in an out-of-sight position.
- Simple adjusting mechanism allows guards to be easily levelled on most gradients.
General information
Color | Black |
Finish | Powder-coated |
Material | Steel |
Shape | Circle |
Width | 500 mm 600 mm Manufacturer guidanceDiameter. |
Height | 1800 mm |
Uniclass | |
CAWS | Q50/260 Tree guards |
Specification data - Tree guards
Material | Steel. |
Finish | Polyester powder-coated. |
Colour | Black.Guidance for specification option: Standard colour RAL 9005 Matt Black. RAL.Guidance for specification option: Full range of RAL colours available to order. Consult manufacturer and insert requirements. |
Plan size | 500 mm diameter. |
Height | 1800 mm. |
Mounting | Adjustable fixing brackets. |
Additional requirements | None.Spare fixing kit.Guard to grille fixing pack. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Steel |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | Manufacturer guidanceGBU Target: Carbon Neutral 2020. |
Recyclability | 100% recyclable |
Expected Life | 100 year |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | IFC2X3 | 2 |
 Revit | Revit 2016 | 4 |
Literature

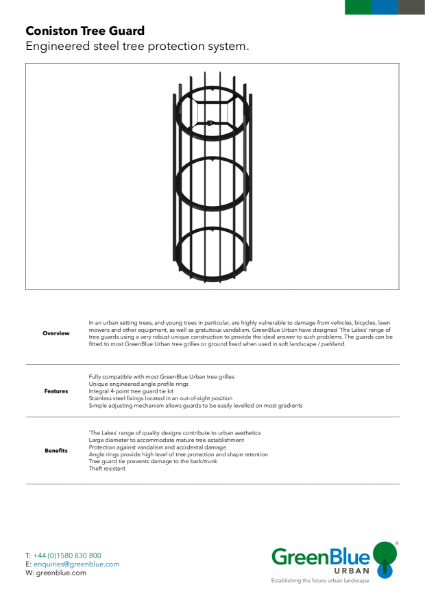

GBU Coniston Tree Guard Datasheet
GBU Derwent Tree Guard Datasheet

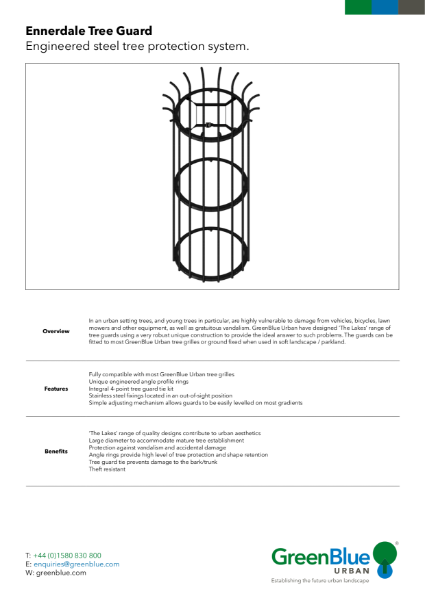

GBU Ennerdale Tree Guard Datasheet

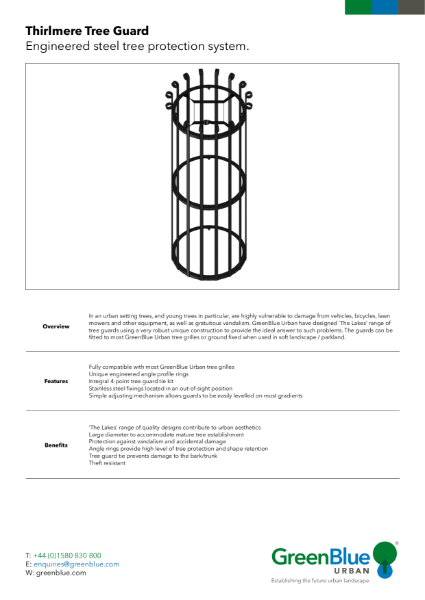

GBU Thirlmere Tree Guard Datasheet

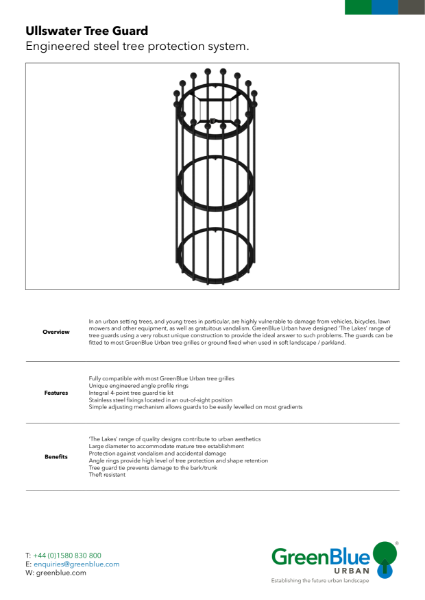

GBU Ullswater Tree Guard Datasheet
