Interlocking vertical joint rainscreen cladding system with a vertical box.

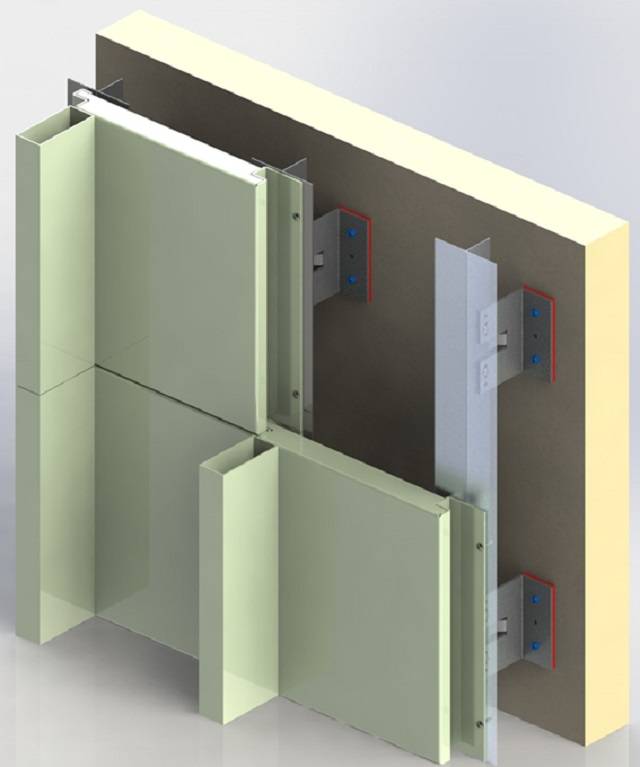

Interlocking vertical joint rainscreen cladding system, including aluminium panels with a vertical box. Based on a vertical plank interlocking panel system with an aluminium box section to create a shadow line on the facade of the building.
The vertical side flanges of the panels interlock with each other and are then fixed in position from the front. To be attached to the outer wall substrate.
System includes:
| Material | Aluminium alloy (grade 1050 H14) for panelsAluminium alloy (grade 5083) for Argonaut aluminium support bracketsAluminium alloy (grade 6063-T6) for Argonaut aluminium carrier rail |
| Uniclass 2015 | Drained and back-ventilated rainscreen cladding systems (Ss_25_20_70_25) |
| Product Reference | Vertical Interlocking Cladding (With Box) |
| Finish/ Colour | AnodizedPolyester powder coated (PPC)Insert colour requirement. |
| Standard product features | Material:
Thickness: 3 mm. Horizontal and vertical joint width (minimum): 1–2 mm. Rail centres: 600 mm. Fixings: Self-drilling screws. |
| Product Options | Panel size (w x l):
Finish/ Colour: Polyester powder coated (PPC): Conforms to BS EN 12206-12004. Consult manufacturer for colour options. |
