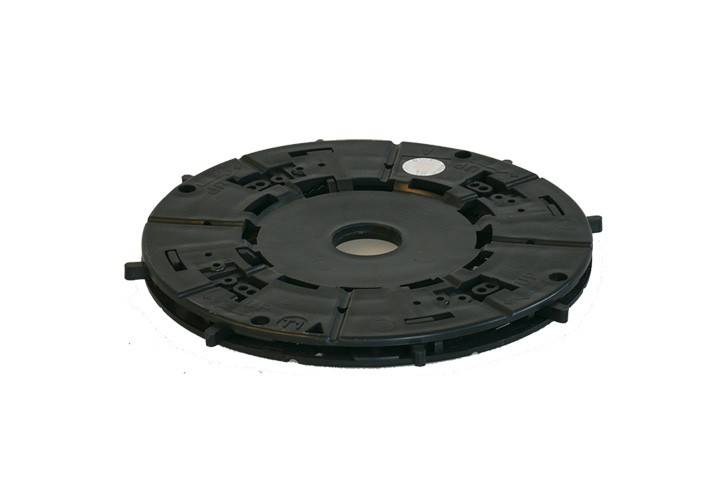

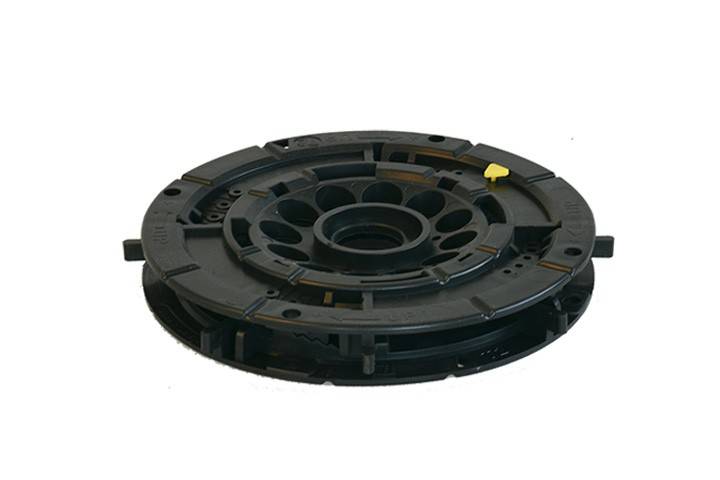

VersiJack Plastic Adjustable Pedestals - Decking and paving pedestal
Verified by manufacturer 5 months ago
Height-adjustable decking and paving pedestals.
Application
- Designed for use with Atria external flooring systems.
- Also suitable for use with other types of decking and paving.
Description
A range of height-adjustable decking and paving pedestals. The adjustable pedestals are height and slope-adjustable making them suitable for almost any environment.
Features and benefits:
- Easy to install, and lightweight.
- Supports Green Building certification.
- Made from recycled plastics.
- Progressive height increments.
- Top and/or bottom slope correctors.
- Easily removed and reused.
- Gradient adjustable.
General information
Color | Black |
Material | Polypropylene |
Shape | Circle |
Height | 12 mm Guidance for specification option: minimum height 281 mm Guidance for specification option: maximum height Bespoke |
Uniclass | |
CAWS | J41/90 Precast concrete paving slabs J21/467 Support system for precast concrete paving slabs J31/370 Precast concrete paving slabs J41/467 Support system for precast concrete paving slabs J42/467 Support system for precast concrete paving slabs J31/375 Paving tiles Q37/460 Support pedestals Q55/395 Support pedestals J21/85 Precast concrete paving slabs J31/80 Precast concrete paving slabs |
Specification data - Decking and paving pedestals
Pedestal type | Adjustable. |
Material | Polypropylene. |
Adjustment | 12-18 mm (311010). Guidance for specification option: 155 mm base diameter. 20 Kn ultimate compressive strength. 17-23 mm (311011). Guidance for specification option: 155 mm base diameter. 20 Kn ultimate compressive strength. 23-29 mm (311012). Guidance for specification option: 155 mm base diameter. 20 Kn ultimate compressive strength. 30-44 mm (311013). Guidance for specification option: 155 mm base diameter. 20 Kn ultimate compressive strength. 44-50 mm (311016). Guidance for specification option: 190 mm base diameter. 15 Kn ultimate compressive strength. 57-75 mm (311017). Guidance for specification option: 190 mm base diameter. 15 Kn ultimate compressive strength. 81-117 mm (311018). Guidance for specification option: 205 mm base diameter. 15 Kn ultimate compressive strength. 124-210 mm (311019). Guidance for specification option: 205 mm base diameter. 15 Kn ultimate compressive strength. 204-281 mm (311020). Guidance for specification option: 205 mm base diameter. 15 Kn ultimate compressive strength. |
Accessories | Not required. Top slope corrector 312020. Base slope corrector 312021. Spacer tab 3 mm/H15 mm 312010. Spacer tab 6 mm/H15 mm 312011. Spacer tab 8 mm/H15 mm 312012. Pedestal to joist connector 312014. Rubber acoustic shim 1 mm 312016. Rubber accoustic shim 2 mm 312017. Wall spacer unit 10 mm 312025. |
Sustainability data
Contains Red List materials | No |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 50 % |
Similar products from Raaft

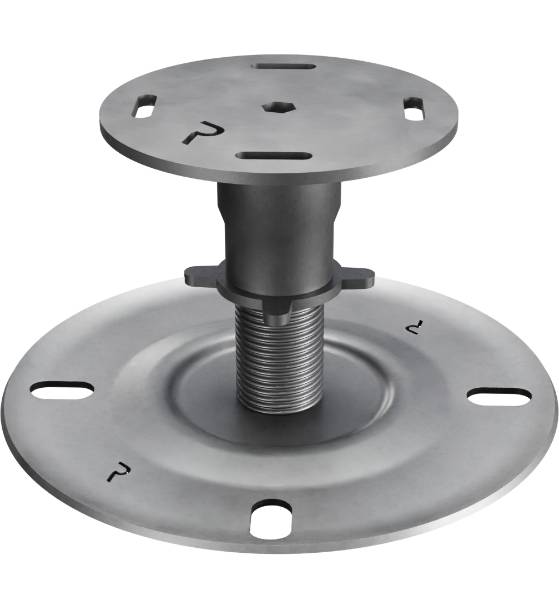

Preventa® Fire-rated Metal Pedestals - Adjustable pedestals
