Preventa® Fire-rated Metal Pedestals - Adjustable pedestals
Verified by manufacturer 2 months ago
Fire-rated adjustable metal pedestals.
Application

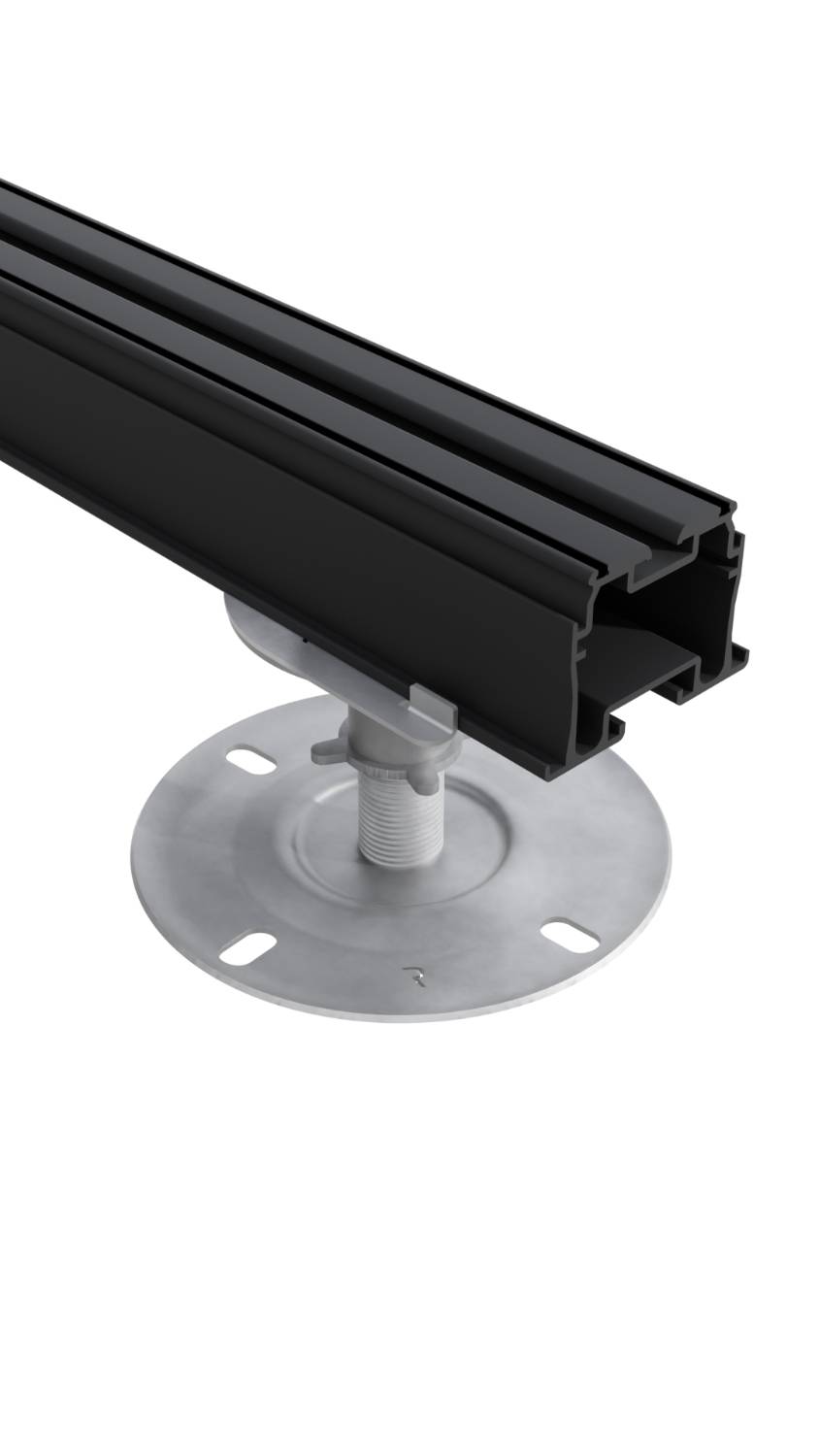

- Designed for supporting Raaft aluminium joists in an external terrace support structure system.
- For use with paving or decking.
Description
Fire-rated Adjustable Pedestals are simple to install and will provide support for the Raaft Fire-rated Terrace System, Class A Fire-Rated modular terrace system. Engineered to support pavers and decking, reducing material and construction costs.

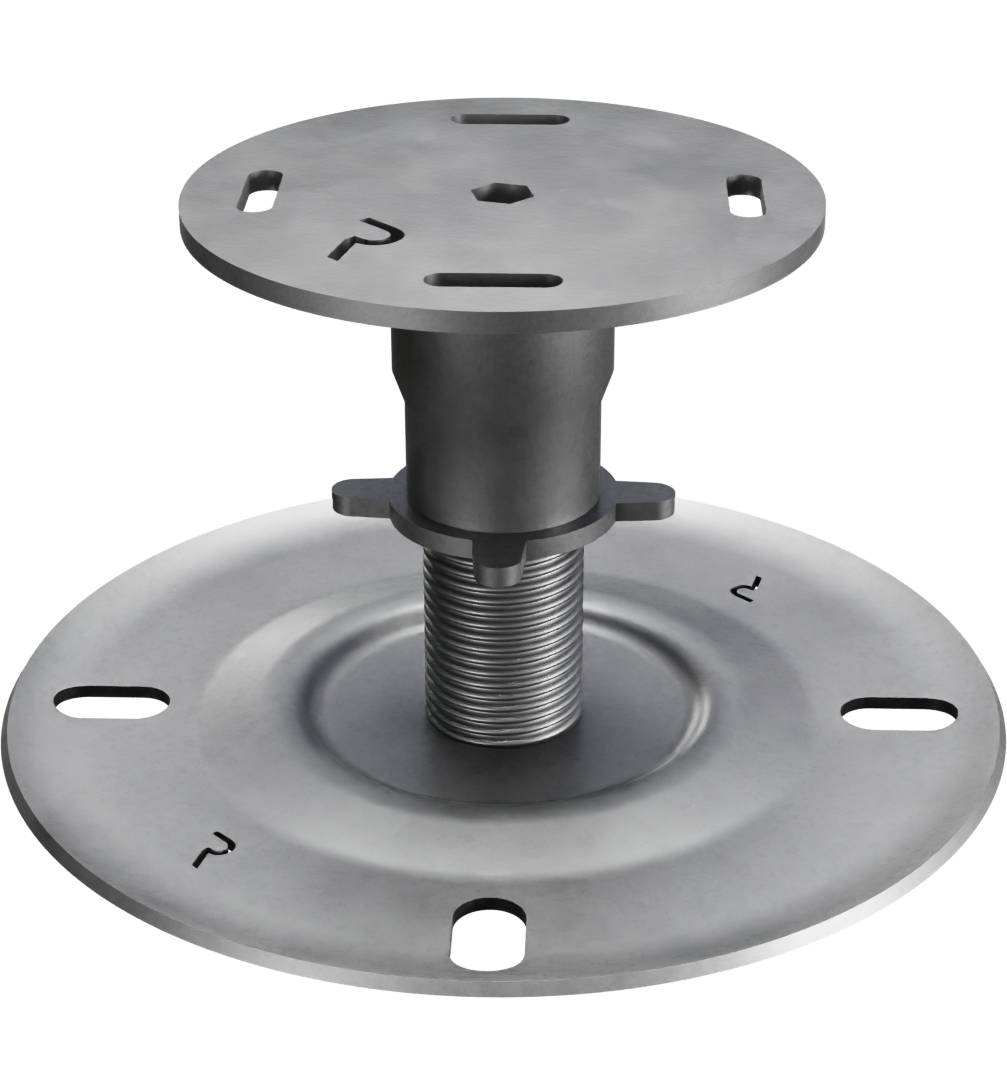

The pedestals are made from zinc-coated steel and are available in a range of eight adjustable heights. The flat base diameter ensures an even load distribution. The height of each pedestal is easily adjustable to suit the substrate conditions. An integral locking ring provides stability.
Features and benefits:
- Class A Fire-rated.
- Made from fire and corrosion-resistant zinc-coated steel.
- Easy to install.
- A flat base diameter ensures an even load distribution.
- Available in a range of 5 x progressive height increments.
- Easily removed and reused.
General information
Color | Silver |
Finish | Zinc plated |
Material | Steel |
Shape | Other |
Height | 26 mm 30 mm 40 mm 50 mm 60 mm |
Warranty description | 15 year |
Uniclass | |
CAWS | Q55/395 Support pedestals J21/467 Support system for precast concrete paving slabs J31/370 Precast concrete paving slabs J41/467 Support system for precast concrete paving slabs J42/467 Support system for precast concrete paving slabs J31/375 Paving tiles Q37/460 Support pedestals J21/85 Precast concrete paving slabs J31/80 Precast concrete paving slabs J41/90 Precast concrete paving slabs |
Specification data - Decking and paving pedestals
Pedestal type | Adjustable. |
Material | Steel, zinc coated. |
Adjustment | 15-22 mm (331016).25-35 mm (331017).35-45 mm (331010).45-65 mm (331011).65-105 mm (331012).105-185 mm (331013).185-345 mm (331014).Manufacturer guidanceBase diameter: 140 mm. |
Fire performance | Class A in accordance with 96/603/EC. Guidance for specification option: The Fire-rated Adjustable Pedestals are manufactured from zinc-coated steel which is a non-combustible material deemed to be Class A in accordance with the European Commission decision of 4 October 1996. |
Load capacity | 1 ton (maximum). |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Recyclability | 100 |
Literature
Technical Data sheet
