VEGA 1500 FR Series Riser Doors with Adjustable Frame
Verified by manufacturer 3 months ago

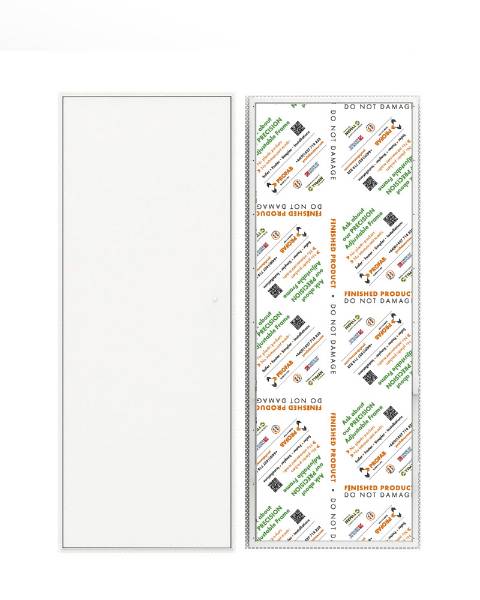

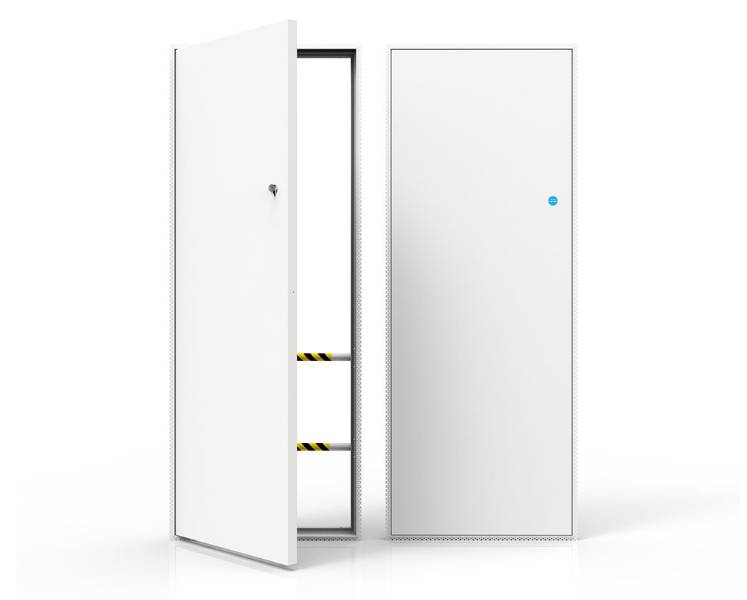

VEGA 1500 FR Series Riser Doors - Single door
VEGA 1500 FR Series Riser Doors - Single door
ISO 9001 Quality Management
Certificate type
Quick release, light weight, engineered, fire rated riser doors supplied with adjustable frames that require no packers and no mastic application for simple, faster and safer installations.
Application
Suitable for use within student halls of residence, care homes and hotels.
Description
A one-hour, fire rated riser door, manufactured and rigorously independently tested to meet fire standards suitable for a wide range of market applications.
Available in single door and double door configurations, with a patented PRECISION adjustable steel frame and a lightweight, easy to fit, steel door.
Features and benefits:
- Fast and simple to install.
- Quick release pivot hinge with retractable flush bolt.
- Hinge pin for easy positioning and door alignment.
- Light weight door for easy handling.
- No packers required during installation.
- No intumescent mastic application required during installation.
- Dramatically reduces fitting times.
- Single door and double door configurations.
- 98% recyclable at end of life.
- Bi-directionally, independently tested for fire integrity from both sides.
- Virtually invisible for a discreet, seamless aesthetic finish.
- Third party tested and accredited.
- One hour fire rated.
- Bi-directionally fire tested.
- Supplied with precision adjustable frame.
- Made in Britain.
General information
Color | White Guidance for specification option: RAL 9010. Other Guidance for specification option: Any RAL colour available on request. |
Finish | Matt Powder-coated |
Material | Carbon steel Guidance for specification option: Electro-galvanized. |
Shape | Rectangle |
Width | 938 mm Guidance for specification option: Maximum door leaf width, suitable for 2493 mm height. 1035 mm Guidance for specification option: Maximum door leaf width, suitable for 2750 mm height. Manufacturer guidanceUnequal width double leaf dooresets are also allowable, provided that the secondary leaf shall have a minimum width of 350 mm, and shall be a minimum of 40% the width of the primary leaf. |
Height | 2750 mm Guidance for specification option: Maximum door leaf height, suitable for 938 mm width. 2493 mm Guidance for specification option: Maximum door leaf height, suitable for 1035 mm width. Manufacturer guidanceUnequal width double leaf dooresets are also allowable, provided that the secondary leaf shall have a minimum width of 350 mm, and shall be a minimum of 40% the width of the primary leaf. |
Warranty description | Five year |
Uniclass | |
CAWS | L20/55 Doorsets L20/480 Doorsets K10/125 Metal stud partition system K10/215 Suspended ceiling system K10/220 Proprietary suspended ceiling system K10/155 Wall lining system (metal studs) K10/430 Access panels L20/630 Hatches K10/15 Lining on timber K10/30 Metal stud K10/115 Metal stud partition system K10/145 Wall lining system (metal studs) K10/165 Wall lining system (metal framing) K10/25 Ceiling lining on timber K10/50 Suspended ceiling system on metal framing |
Specification data - Carbon steel doorsets
Standard | Manufactured to ISO 9001:2015 and 14001:2015. |
Configuration | Single door (SD). |
Doorset size | 2750 x 938 mm.Guidance for specification option: Maximum door leaf height x suitable width. 2493 x 1035 mm.Guidance for specification option: Maximum door leaf height x suitable width. |
Performance | |
Fire resistance | |
Integrity | To BS 476-22: 60 minutes (1FR). |
Acoustic performance | 31 dB (Rw). |
Frame | |
Material | Electro-galvanized mild steel. |
Perimeter seals or inserts | Acoustic, intumescent and smoke seal. |
Finish | |
Coating | Powder-coated.Guidance for specification option: Fully powder coated matt RAL 9010. |
Texture | Matt. |
Colour | White (RAL 9010).Guidance for specification option: Fully powder coated matt RAL 9010. RAL.Guidance for specification option: Suitable for finishing on site or other RAL colours available on request. |
Door leaf | |
Thickness | 1.2 mm. |
Material | Electro-galvanized mild steel door leaf, Rockwool core. |
Beading | |
Type | Beaded frame (BF).Guidance for specification option: Suitable for tape and jointing/ skimming. Picture frame (PF).Guidance for specification option: Suitable for retrofitting/ finished areas. |
Material | Steel. |
Fixing | Fully welded. |
Finish | |
Coating | Powder-coated. |
Texture | Matt. |
External colour | White (RAL 9010).Guidance for specification option: Fully powder coated matt RAL 9010. RAL.Guidance for specification option: Suitable for finishing on site or other RAL colours available on request. |
Door accessories | Acoustic, intumescent and smoke seal to frame. |
Collar | Stainless steel. White plastic. Guidance for specification option: Standard. Manufacturer guidanceLock. |
Weight | 17.5 kg/m². Guidance for specification option: Including frame. |
FrameDepth | 66 mm. |
Third-party certification | Third party fire tested and accredited by Efectis. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom Guidance for specification option: Britain. |
Recyclability | 98% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 20 % Guidance for specification option: 20–25% depending on the availability of scrap metal. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 2 |
 IFC | - | 2 |
Third party certifications
Literature

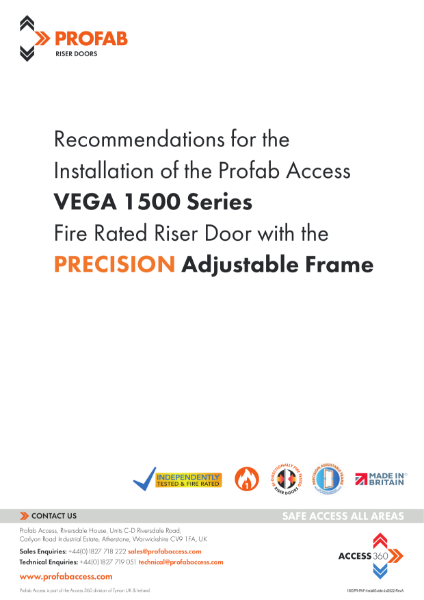

Profab Vega 1500 Installation Instructions

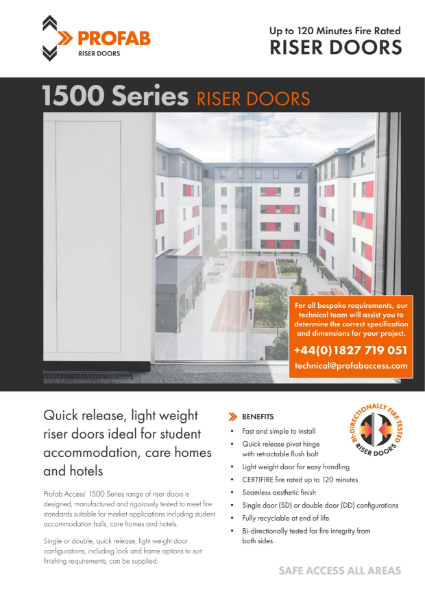

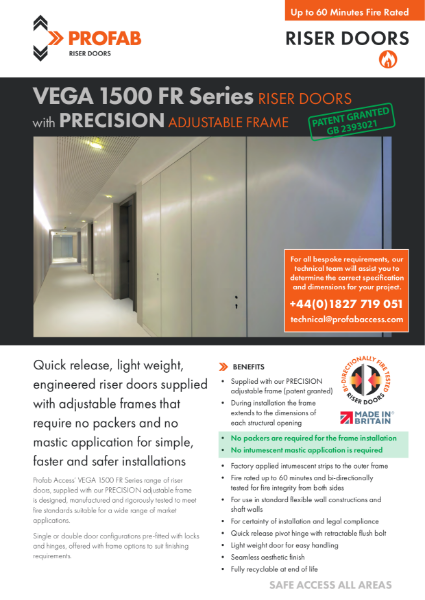

Profab VEGA 1500 Series Datasheet

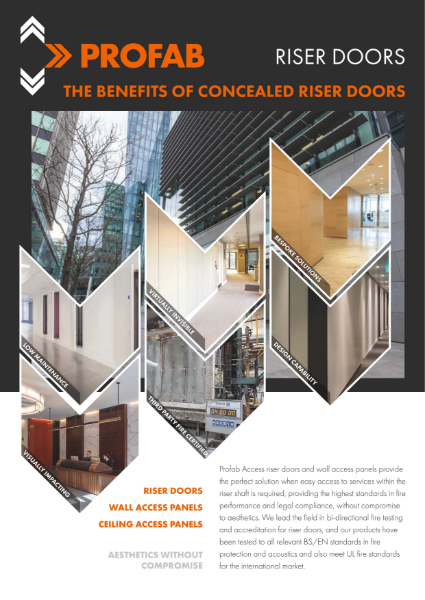

Profab The Benefits of Concealed Riser Doors
Profab VEGA 1500 Series Riser Door Fire Rated Technical Data Sheet
Case studies

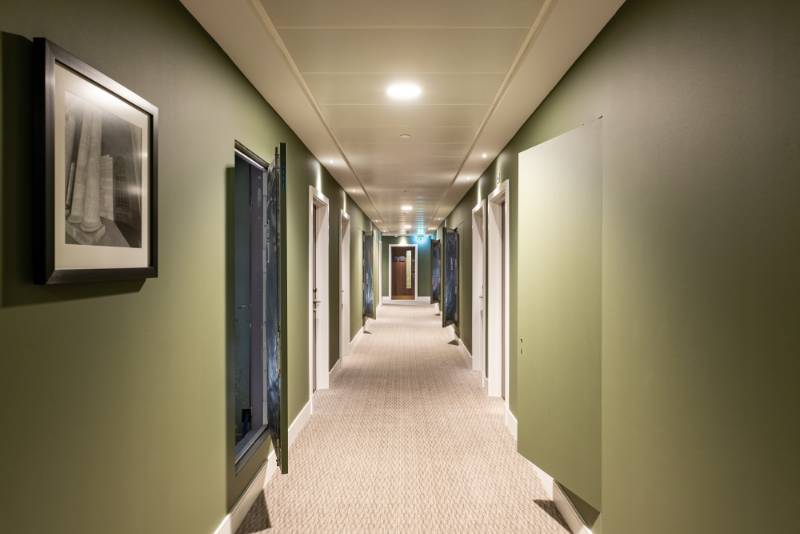

Parkgate Hotel, Cardiff
Similar products from Access 360
INTEGRA 4000 Series - Fire Rated Riser Doors with Adjustable Frame
INTEGRA 4000 Series - Non Fire Rated Riser Doors

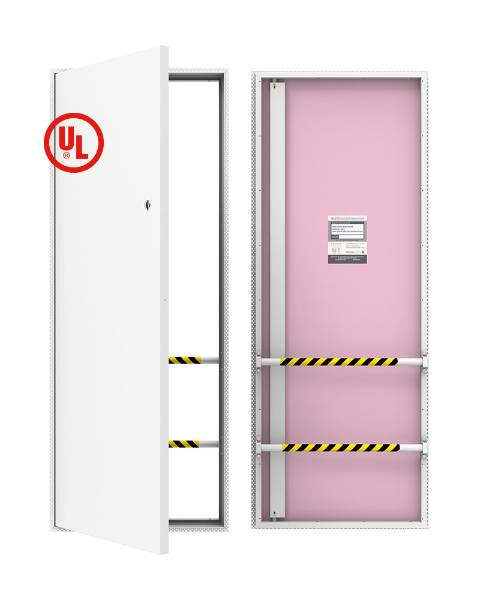

INTEGRA 4000 Series - UL Fire Rated Riser Doors
