VISION 8000 - Fire Rated Riser Door

Verified by manufacturer 2 months ago

VISION 8000 FR Riser Door - Single Door

Access 360 Variant:
Third party certifications:

  • ISO 9001 Quality Management

    Certificate type

Steel access panel for different cladding materials, including ceramic, stone, marble and ceramic tiled walls.

Jump to:
+44 (0)1827 718222 Website

Application

  • Suitable for commercial, residential and public buildings.
  • Suitable for vertical use into tiled jointless plaster and plasterboard walls, where doors are to be installed prior to tiling.
  • Specified for use in hotels, commercial buildings, domestic or commercial kitchens and bathrooms and shower rooms, where a fire-rated solution is required for discreet access to mechanical and electrical services.

Description

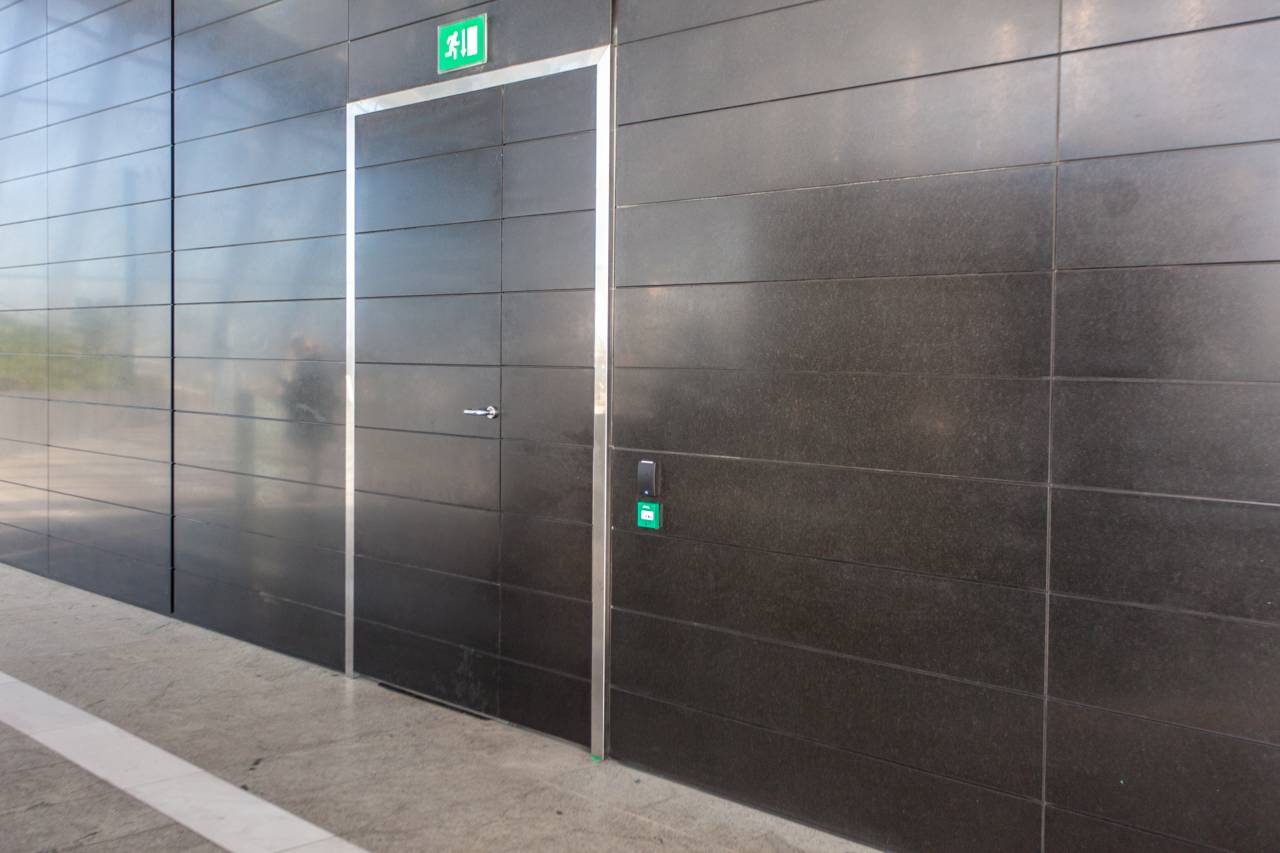

A fire rated, concealed riser door designed to provide a simple yet secure permanent means of accessing building services, where the facade of the door can be clad in different materials including stone marble, ceramic and tile.

Manufactured to order and are designed to match the specified tile module. This series of fire-rated riser doors can be clad in materials including stone, marble, tile or ceramic, for a concealed aesthetic finish, or to provide a design that is visually impacting for any project.


Features and benefits:

  • CERTIFIRE fire rated up to 120 minutes
  • Bi-directionally fire tested for fire integrity from both sides.
  • Visually impacting within an overall design.
  • Facade of the riser door can be clad in stone, marble, ceramic and tile.
  • Concealed for a seamless aesthetic finish.
  • Doors are manufactured to exact tile module.
  • Maximum tile and adhesive build depth of 25 mm.
  • Easy to install and lockable.
  • Single door (SD) and double door (DD) configurations.
  • High performance range, for vertical use with frame and lock options.
  • Fully recyclable at end of life.

General information

Color

White

Guidance for specification option:

RAL 9010.

Other

Guidance for specification option:

Any RAL colour available on request.

Finish

Matt

Guidance for specification option:

As standard.

Powder-coated

Material

Steel

Shape

Square

Rectangle

Width

300 mm

Guidance for specification option:

Minimum door leaf width.

450 mm

600 mm

1050 mm

Guidance for specification option:

Maximum door leaf width.

Manufacturer guidance

  • Actual size is dependent on tile selected.
  • Available in nominal sizes from 300 x 300 mm minimum to 1050 x 3000 mm maximum for a single door (SD).
  • Size refers to outer frame.
  • Measurements shown X x Y; SINGLE DOOR (SD) 300 x 300 mm – 4 kg, 300 x 600 mm – 7 kg, 450 x 450 mm – 8 kg, 600 x 600 mm – 15 kg, 600 x 900 mm – 22 kg, 600 x 1200 mm – 28 kg.
  • MIN/ MAX SIZES: Leaf width (minimum) = 300 mm, Leaf height (minimum) = 300 mm, Leaf width (maximum) = 1050 mm, Leaf height (maximum) = 3000 mm.

Height

300 mm

Guidance for specification option:

Minimum door leaf height.

450 mm

600 mm

900 mm

1200 mm

Show more

Manufacturer guidance

  • Actual size is dependent on tile selected.
  • Available in nominal sizes from 300 x 300 mm minimum to 1050 x 3000 mm maximum for a single door (SD).
  • Size refers to outer frame.
  • Measurements shown X x Y; SINGLE DOOR (SD) 300 x 300 mm – 4 kg, 300 x 600 mm – 7 kg, 450 x 450 mm – 8 kg, 600 x 600 mm – 15 kg, 600 x 900 mm – 22 kg, 600 x 1200 mm – 28 kg.
  • MIN/ MAX SIZES: Leaf width (minimum) = 300 mm, Leaf height (minimum) = 300 mm, Leaf width (maximum) = 1050 mm, Leaf height (maximum) = 3000 mm.

Warranty description

Five year

Uniclass

Pr_30_59_24_52 Carbon steel doorsetsPrimary

CAWS

L20/480 Doorsets

L20/55 Doorsets

L20/630 Hatches

M40/110 Tiling to

M40/115 Natural stone covering to

M40/5 Tiling to

M40/10 Natural stone covering to

Specification data - Carbon steel doorsets

Configuration

Single door (SD).

Doorset size

300 x 300 mm.

Guidance for specification option:

Minimum door leaf size.

300 x 600 mm.

450 x 450 mm.

600 x 600 mm.

600 x 900 mm.

600 x 1200 mm.

1050 x 3000 mm.

Guidance for specification option:

Maximum door leaf size.

Manufacturer guidance

  • Actual size is dependent on tile selected.
  • Available in nominal sizes from 300 x 300 mm minimum to 1050 x 3000 mm maximum for a single door (SD).
  • Size refers to outer frame.
  • Measurements shown X x Y; SINGLE DOOR (SD) 300 x 300 mm – 4 kg, 300 x 600 mm – 7 kg, 450 x 450 mm – 8 kg, 600 x 600 mm – 15 kg, 600 x 900 mm – 22 kg, 600 x 1200 mm – 28 kg.
  • MIN/ MAX SIZES: Leaf width (minimum) = 300 mm, Leaf height (minimum) = 300 mm, Leaf width (maximum) = 1050 mm, Leaf height (maximum) = 3000 mm.

Performance

-

Fire resistance

-

Integrity

To BS EN 1634-1, 60 minutes.

To BS EN 1634-1, 120 minutes.

Acoustic performance

To BS EN ISO 140-3, 33 dB (RW).

Frame

-

Material

Electro-galvanized mild steel.

Perimeter seals or inserts

EPDM weatherseal.

Finish

-

Coating

Powder-coated.

Colour

Matt, white (RAL 9010).

Matt, RAL.

Guidance for specification option:

Additional RAL colours available, consult manufacturer and insert requirements.

Door leaf

-

Panel details

Lined with tile backing: 12 mm glass reinforced gypsum board.

Hardware

Three point lock (3PL).

Three point high security lock (3HS).

FrameDepth

Overall frame depth: 76.5 mm.

Air tightness

Airtight to Part L.

Weight

Load bearing hinge capacity: Up to 120 kg.

Collar

Stainless steel.

White plastic.

Guidance for specification option:

Standard.

Manufacturer guidance

Lock.

Integral accessories

Rubber gasket around all sides.

Operation

Concealed hinges outward opening (toward the user).

Frame

Tiled frame.

Guidance for specification option:

Concealed frame. After installation of the access panel and tiles, only a grout-width gap is visible.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

United Kingdom

Guidance for specification option:

Britain.

Recyclability

98%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

20 %

Guidance for specification option:

20–25%.

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

Quality Management Systems
