VAP1 Voice Alarm Panel

Verified by manufacturer 4 months ago

Johnson Controls Third party certifications:
  • CE Marking

    Certificate type

Voice alarm panel

Jump to:
BOS
Website

Application

Suitable for Public announce and voice alarm applications.

Description

The Voice Alarm Panel VAP 1 is designed to provide JCI NEO with evacuation system controls for different areas.


It allows to know the condition of the system and broadcast both live and pre-recorded alarm and evacuation warnings through up to 56 selection memories of evacuation zones.


This is possible because it can equip up to seven expansion keyboards with eight zone memories each one. Moreover, expansion keyboards available allow it to adjust to the special features of each system.


The equipment also offers the chance to choose the source of the power supply between local or supplied through the ACSI bus. The ACSI bus allows a maximum total wiring of 1000 m (914.4 yrd) and offers priority levels for the devices connected in bus mode.


It has functions such as volume control, dynamic sound adjustment and programmable buttons that allow other system functions such as pre-recorded messages broadcasting. It has a metallic chassis that provides stability and protection against damage. All the buttons are designed for intensive use.


Features and benefits:

  • Up to 56 group memories of up to eight zones per memory (448 zones of the system).
  • Prior notice tone.
  • Volume adjustment.
  • Power supply indicator.
  • Emergency condition general indicator.
  • Fault condition general indicator.
  • Link with system fault indicator.
  • Power supply fault indicator.
  • Emergency microphone fault indicator.
  • Broadcasting of voice evacuation message indicator.
  • Broadcasting of voice evacuation recorded message indicator.
  • Broadcasting of voice alarm message indicator.
  • Remote control indicator.
  • Emergency controls, Reset, Acknowledge, Test, Alarm message, Evacuation message.
  • Side port to connect up to seven expansion keyboards.
  • Priority configuration and operating parameters.
  • Local or peripheral power supply.
  • Wall or 19” rack installation.
  • Dynamic transducer with moving coil.

General information

Color

Grey

Finish

Matt

Material

Metal

Shape

Rectangle

Length

50 mm

Guidance for specification option:

Depth

Width

259 mm

Height

132 mm

Warranty description

Two year

Uniclass

Ss_75_50_28_95 Voice alarm systemsPrimary

CAWS

W90/325 Fire detection and alarm control and indicating equipment

Specification data - Voice alarm systems

Power supply

4.5–5.5 V dc, 1 x miniUSB AB. 200–500 mA.

Colour/ Finish:

Grey RAL 7016.

Operating temperature

−5 to +45°C.

RelativeHumidity

5–95% (no condensation).

Sustainability data

Contains Red List materials

No

Country of material origin

Spain

Country of product manufacture

Spain

Material

Metal

Recyclability

Recyclability (guidance on recyclability considerations): Refers to the ability and ease with which a product can be recycled at the end of its useful life. This item provides guidance or information on aspects related to product recycling, which may include tips on how to disassemble or separate its components to facilitate recycling, as well as information on the materials used in their manufacture and their potential for recycling.

Expected Life

Ten year

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

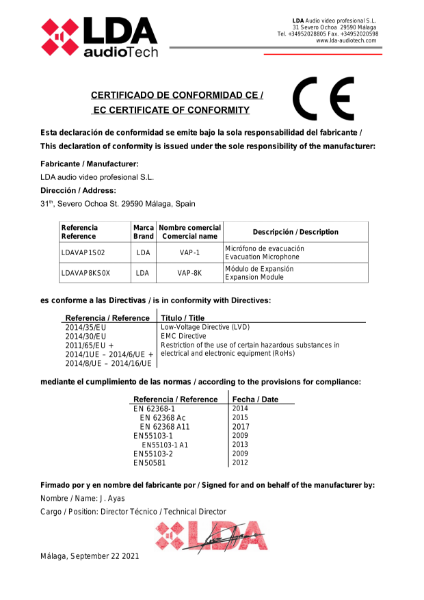

Third party certifications

CE Marking

CE Marking

VAP1-CE

Literature

590.010.004 VAP1 Voice Alarm Panel

590.010.004 VAP1 Voice Alarm Panel
