NEO8060 Public Address and Voice Alarm System

LDA NEO 8060 is a compact EN 54−16 certified PA/VA system that ensures a ensures a fast, safe and controlled

emergency evacuation.

NEO represents a cost−effective voice evacuation and public address system due to its cutting−edge features, excellent audio quality and flexibility in just 2U: 8 class D

amplifiers, 5 audio inputs, 7x8 audio matrix (39x1024 digital), touch screen, Cobranet audio, etc.

With the NEO Configurator software (included), it is possible to configure the equipment remotely and create even ts to perform actions in the system triggered by conditions of: input level, date/time, UDP command, a GPIO or button from MPS microphone.

Features and benefits:

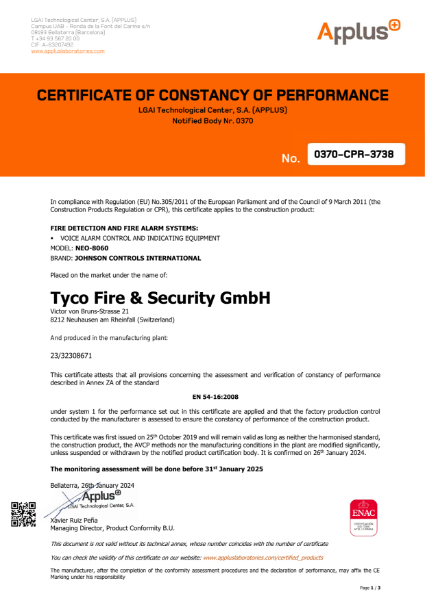

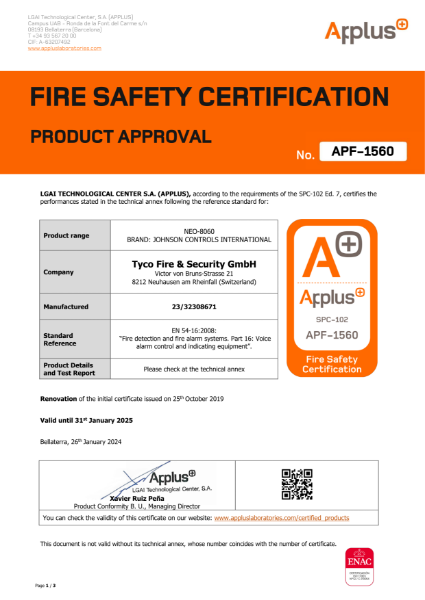

• EN 54−16 and EN−60849 certified.
• Detection and indication of failure in all emergency functions.
• Integration with fire alarm control panels.
• Pre−recorded evacuation messages.
• Phased evacuation.
• Manual control of emergency states with access control.
• Recording output in emergency state.
• Emergency log.
• Loudspeaker line supervision.
• A+B connection (16 lines).
• Back up amplifier connection: 7+1 (120 W channels) or 4+1 (250 W channels).
• Rear view
• Five audio inputs.
• Eight class D amplifiers with two configurations for 100V/70 V lines: 8 class D amplifiers of 120 W per channel or 4 class D amplifiers of 250 W per channel.
• Audio Matrix 7x8 (digital up to 39x2014).
• EIght pre−amp outputs for external PA amplifiers connection.
• Up to eight multi−zone microphones MPS−8Z or VAP−1 panels connected with CAT5 UTP cable.
• DSP: 7−band input/output parametric equalizer, loudness, sound enhancer, independent volume control per each I/0 channel and audio filters.
• Triple Ethernet port: for Digital Audio Cobranet, remote control and supervision, and for escalating the system with NEO Extensions in daisy−chain mode with Flexnet technology (up to 1024 zones).
• 4,3’’ frontal touch screen with access control.
• 4 GB of internal memory for pre−recorded messages.
• Integrated emergency microphone.
• Control for up to 32 attenuators AT6.
• Integrated frontal loudspeaker for monitoring.
• 22 GPIO ports (eight supervised for integration with fire alarm control panel).
