Vantage® MF (Mechanical Fix) Rainscreen System - Rainscreen Cladding System

Verified by manufacturer 4 months ago

BTS Fabrications Limited Third party certifications:
  • EPD

    EPD

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

A fully drained and back ventilated open jointed rainscreen cladding system, mechanically face fixed to a sub frame using low profile fixings or rivets.

Jump to:
+44 (0)1388 816883 Website

Application

Mechanically face fixed to the sub structure in both horizontal and vertical applications. Equally suitable for low cost refurbishment works and new builds.

Description

Vantage® MF is available in a wide range of panel sizes and finishes, and is lightweight and easy to install. It is mechanically fixed, eliminating the need for adhesives, and panels can be independently replaced. The panels have the advantage of being able to be formed to give a clean, sharp detail at all joints, corners and reveals, and can be installed in landscape, portrait or angled orientations. The system recently underwent CWCT Standard For Systemised Building Envelope testing, passing all elements. It was assessed for wind (serviceability & safety), impact resistance (soft and hard body) and water tightness (dynamic aero engine).


Features and benefits:

  • Comprehensive choice of Vantage® MF standard details.
  • 10 mm all-round joint gap ensures an eye-catching, quality finish.
  • Fully tested fixing options include both rivet and screw fix up to a maximum of 600 mm centres.
  • Available in a wide range of materials and finishes.


Components:

  • Hands free brackets.
  • Vantage® MF support rails.
  • Vantage® MF façade panels.
  • Fixings.

General information

Finish

Anodized

Powder-coated

Other

Guidance for specification option:

Aluminium.

Material

Aluminium

Uniclass

Ss_25_20_70_25 Drained and back-ventilated rainscreen cladding systemsPrimary

CAWS

H92/120 Rainscreen cladding

H20/10 Sheet cladding

H20/150 Sheet cladding (attached to metal support systems)

Product range

Vantage® Rainscreen Systems

Specification data - Drained and back-ventilated rainscreen cladding systems

Thermal insulation

-

Manufacturer guidance

Non-combustible mineral wool insulation, supplied by others; insert requirements.

Breather membrane

-

Material

-

Manufacturer guidance

Supplied by others; insert requirements.

Fasteners

-

Manufacturer guidance

Supplied by others; insert requirements.

Secondary support structure

Nvelope vertical carrier rail and Helping Hand brackets.

Manufacturer guidance

Set out is panel and project specific, insert requirements.

Carrier rails available in 6 m lengths.

Cavity fire barriers

-

Horizontal

-

Manufacturer guidance

Seek specialist information from specialist manufacturers and insert requirements.

Vertical

-

Manufacturer guidance

Seek specialist information from specialist manufacturers and insert requirements.

Cladding panels

-

Material

Vantage® MF Rainscreen Panel, 3 mm thick, polyester powder coated aluminium.

Guidance for specification option:

Insert colour requirements.

Vantage® MF Rainscreen Panel, 3 mm thick, anodized aluminium.

Manufacturer guidance

Panel size specified separately below.

Consult manufacturer for fixing options and insert requirements.

Panel joints

Manufacturer's standard.

Reveals

-

Manufacturer guidance

Insert requirements or omit.

System accessories

-

Manufacturer guidance

Insert requirements or omit.

Panel size

-

Manufacturer guidance

Available in a wide range of panel sizes, insert requirements.

Ventilation cavity

-

Manufacturer guidance

50 mm (minimum) ventilation gap, insert requirements.

Sheathing board

-

Manufacturer guidance

Calcium silicate sheathing board (supplied by others); insert requirements.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

Aluminium

Recyclability

100%

Third party certifications

Third party certifications

EPD

EPD

Vantage® MF Mechanical Fix Rainscreen System - EPD HUB-0495

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

BTS ISO 14001:2015

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

BTS ISO 45001:2018

ISO 9001 Quality Management

ISO 9001 Quality Management

BTS ISO 9001:2015

Literature

Vinci Test Report N950-21-18089

Vinci Test Report N950-21-18089

Vantage® MF Specification

Vantage® MF Specification

Vantage® MF - Mechanical Fix Rainscreen Facade System

Vantage® MF - Mechanical Fix Rainscreen Facade System

Vantage® MF H92

Vantage® MF H92

Case studies

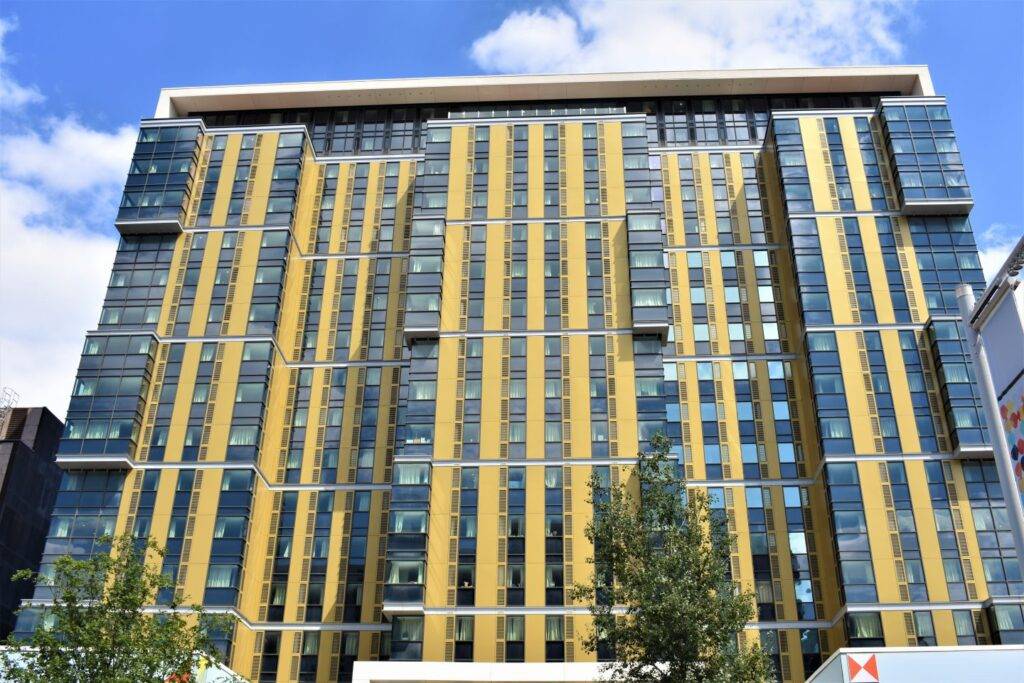

Unite - Wembley

Unite - Wembley

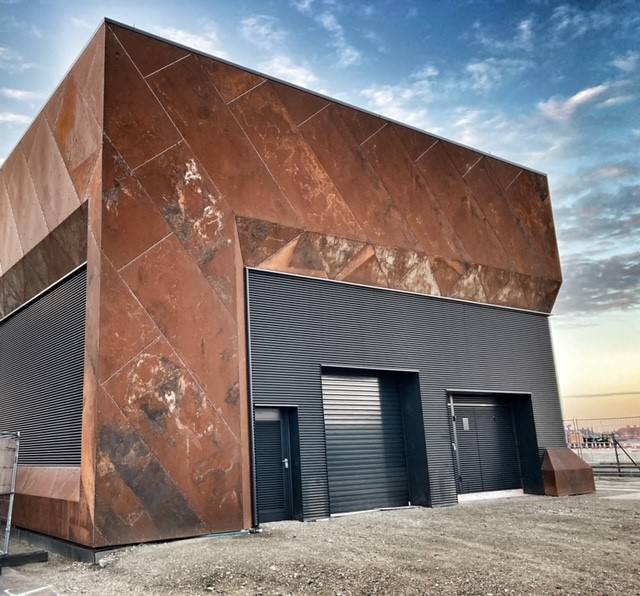

The Energy Centre. London City Airport
