Vantage® EMF (Expanded Metal Framed) Facade System - Rainscreen Cladding System
Verified by manufacturer 4 months ago
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type
A framed expanded mesh system which incorporates BTS facades and fabrications distinctive frame encapsulating the edges of expanded mesh sheets.
Application
Suitable for use in a variety of vertical architectural facades applications.
Description

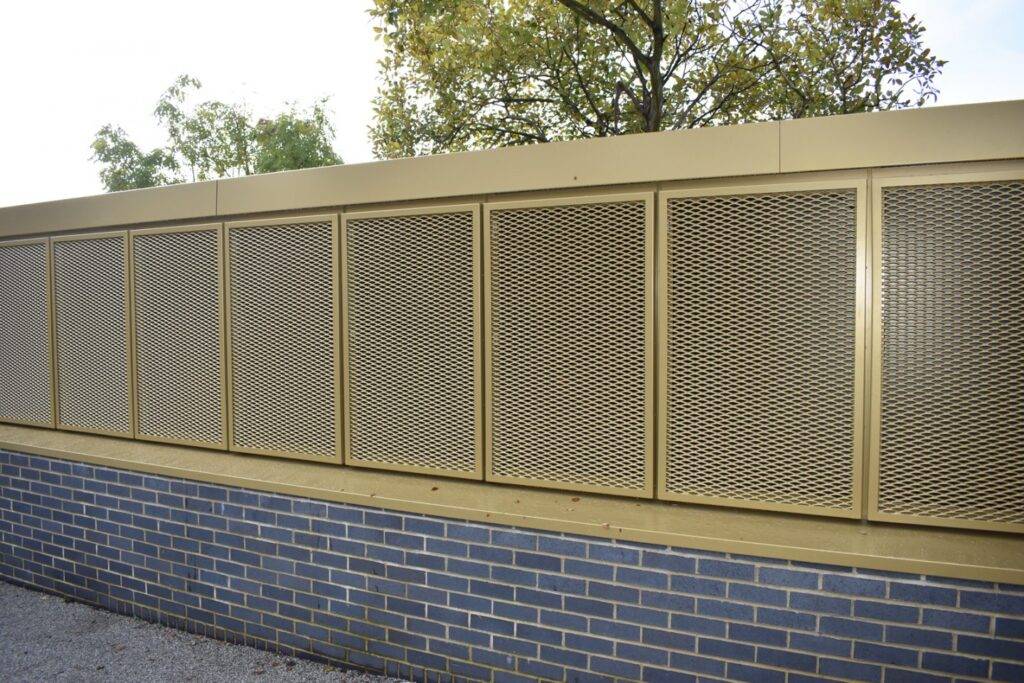

Vantage® EMF framed expanded mesh system incorporates BTS facades and fabrications frame, encapsulating the edges of expanded mesh sheets. The framing gives the mesh a distinctive visual effect and can be used in a variety of vertical architectural facades applications. The system utilises existing technology from the Vantage® SF rainscreen system and allows the expanded mesh to be secret fixed.
A choice of three expanded meshes, Athens, Madrid and Bilbao, in a vast variety of powder coated and anodised finishes can be incorporated into a Vantage® EMF building to match the changing face of a business. The orientation of original panels can also be changed – offering complete aesthetic versatility and keeps the design fresh and contemporary from concept to completion.
Features and benefits:
- Comprehensive choice of Vantage® EMF standard details.
- 20 mm all-round joint gap ensures an eye-catching, quality finish.
- Available in a wide range of materials and finishes.
Components:
- Hands free brackets.
- Vantage® EMF support rails.
- Vantage® EMF mesh façade panels.
- Fixings.
General information
Finish | Anodized Powder-coated Guidance for specification option: Polyester powder coated. |
Material | Aluminium |
Shape | Rectangle Square |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | H92/120 Rainscreen cladding H20/150 Sheet cladding (attached to metal support systems) H20/10 Sheet cladding |
Product range |
Specification data - Drained and back-ventilated rainscreen cladding systems
Thermal insulation | Manufacturer guidanceBTS recommended non-combustible mineral wool insulation (supplied by others). Insert requirements. |
Breather membrane | |
Material | Manufacturer guidanceFire rated breather membrane (supplied by others), insert requirements. |
Fasteners | Manufacturer guidanceSupplied by others; insert requirements. |
Secondary support structure | BTS Secret Fix Vertical Carrier and Nvelope Helping Hand brackets.Guidance for specification option:
|
Cavity fire barriers | |
Horizontal | Manufacturer guidanceSeek specialist information from specialist manufacturers and insert requirements. |
Vertical | Manufacturer guidanceSeek specialist information from specialist manufacturers and insert requirements. |
Cladding panels | |
Material | Vantage® EMF Secret Fixed Panel, 3 mm thick, polyester powder coated aluminium, Athens configuration.Guidance for specification option: Insert colour requirements. Vantage® EMF Secret Fixed Panel, 3 mm thick, anodized aluminium, Athens configuration.Vantage® EMF Secret Fixed Panel, 3 mm thick, polyester powder coated aluminium, Madrid configuration.Guidance for specification option: Insert colour requirements. Vantage® EMF Secret Fixed Panel, 3 mm thick, anodized aluminium, Madrid configuration.Vantage® EMF Secret Fixed Panel, 3 mm thick, polyester powder coated, Bilbao configuration.Guidance for specification option: Insert colour requirements. Vantage® EMF Secret Fixed Panel, 3 mm thick, anodized aluminium, Bilbao configuration.Manufacturer guidanceConsult manufacturer for fixing options and insert requirements. |
Reveals | Manufacturer guidanceInsert requirements or omit. |
System accessories | Manufacturer guidanceInsert requirements or omit. |
Ventilation cavity | Manufacturer guidance25 mm (minimum) ventilation gap, insert requirements. |
Sheathing board | Manufacturer guidanceBTS recommended non-combustible calcium silicate board (supplied by others); insert requirement. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 70 % |
Third party certifications
