Vantage® EMSA (Expanded Metal Site Assembled) Facade System - Rainscreen Cladding System
Verified by manufacturer 3 months ago
ISO 14001 Environmental Management Systems
Certificate type
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type
A site assembled expanded mesh system incorporating BTS’ bespoke brackets and support grid.
Application
Suitable for a wide range commercial applications such as, car parks and open structures spanning slab to slab up to 3.1 m.
Description

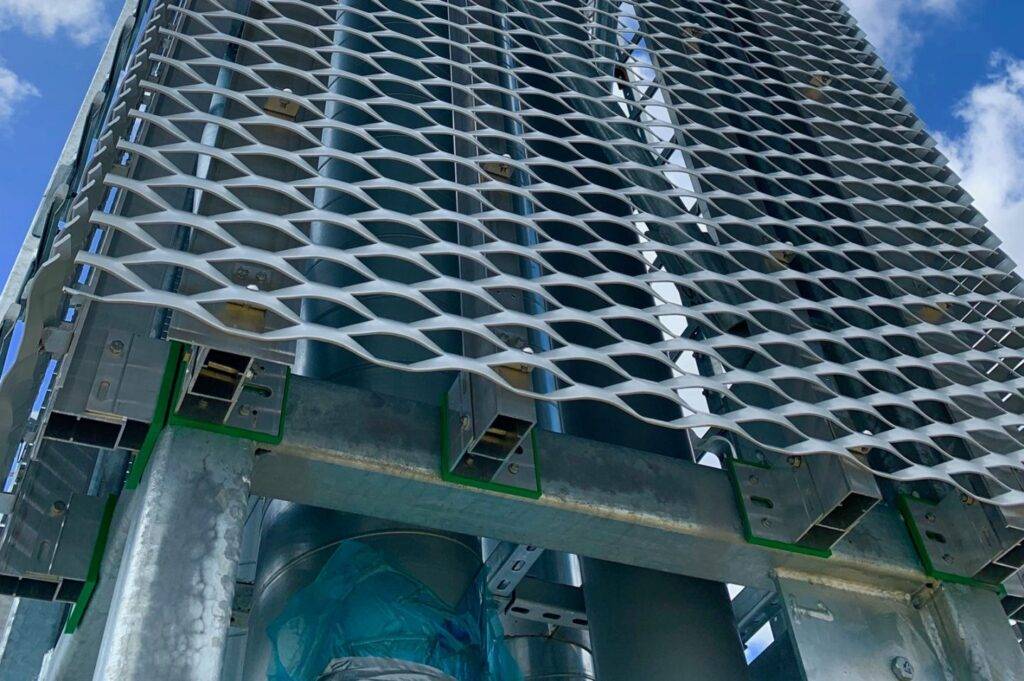

A site assembled expanded mesh system utilising Nvelope’s NVF2F bracket and rail system and BTS facades and fabrications bespoke brackets. It is a non-framed product and has a wide range commercial applications. The system allows mesh sheets to be installed onto a building or structure and includes a concealed unobtrusive subgrid giving the expanded mesh a continuous visual effect.
Features and benefits:
- Comprehensive choice of Vantage® EMSA standard details.
- 10 mm all-round joint gap ensures an eye-catching, quality finish.
- Available in a wide range of materials and finishes.
Components:
- Hands free brackets.
- Vantage® EMSA support rails.
- Vantage® EMSA bespoke mesh bracket.
- Vantage® EMSA mesh façade panels.
- Fixings.
General information
Finish | Anodized Powder-coated |
Material | Aluminium |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | H92/120 Rainscreen cladding H20/10 Sheet cladding H20/150 Sheet cladding (attached to metal support systems) |
Product range |
Specification data - Drained and back-ventilated rainscreen cladding systems
Thermal insulation | Manufacturer guidanceBTS recommended non-combustible mineral wool insulation (supplied by others). Insert requirements. |
Breather membrane | |
Material | Fire rated breather membrane (supplied by others). |
Secondary support structure | Nvelope NVF2F bracket and rail system.Guidance for specification option:
Manufacturer guidanceFor typical plan section, refer to manufacturer's literature. |
Cavity fire barriers | |
Horizontal | Manufacturer guidanceFor fire barrier locations, seek recommendations from specialist manufacturers and insert requirements. |
Vertical | Manufacturer guidanceFor fire barrier locations, seek recommendations from specialist manufacturers and insert requirements. |
Cladding panels | |
Material | Vantage® EXMESH Sheet, 3 mm thick, polyester powder coated aluminium, Athens configuration.Guidance for specification option: Insert colour requirements. Vantage® EXMESH Sheet, 3 mm thick, anodized aluminium, Athens configuration.Vantage® EXMESH Sheet, 3 mm thick, polyester powder coated aluminium, Madrid configuration.Guidance for specification option: Insert colour requirements. Vantage® EXMESH Sheet, 3 mm thick, anodized aluminium, Madrid configuration.Vantage® EXMESH Sheet, 3 mm thick, polyester powder coated, Bilbao configuration.Guidance for specification option: Insert colour requirements. Vantage® EXMESH Sheet, 3 mm thick, anodized aluminium, Bilbao configuration.Manufacturer guidanceConsult manufacturer for fixing options and insert requirements. |
Reveals | Manufacturer guidanceInsert requirements or omit. |
System accessories | Manufacturer guidanceInsert requirements or omit. |
Fixings | Manufacturer's standard. Guidance for specification option:
Manufacturer guidanceFor typical plan section, refer to manufacturer's literature. |
Sheathing board | Manufacturer guidanceBTS recommended non-combustible calcium silicate board (supplied by others); insert requirement. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 70 % |
Third party certifications
Literature
Vantage EMSA Specification Drawing
Case studies

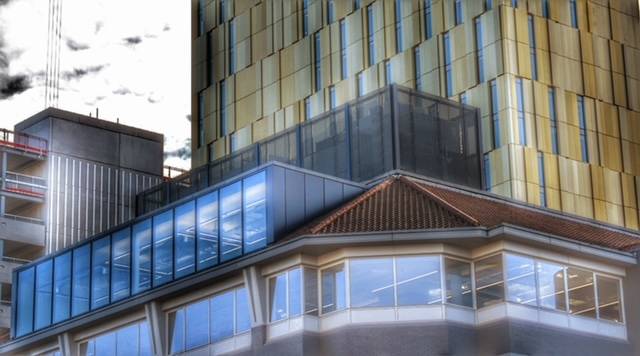

The Forge, Woking
