V37 Aluminium Security Shutter
Verified by manufacturer 1 month ago
Extruded aluminium security roller shutters with vision profiles and 37 mm high slats.
Application
Windows, doors and openings in domestic and commercial uses.
Description

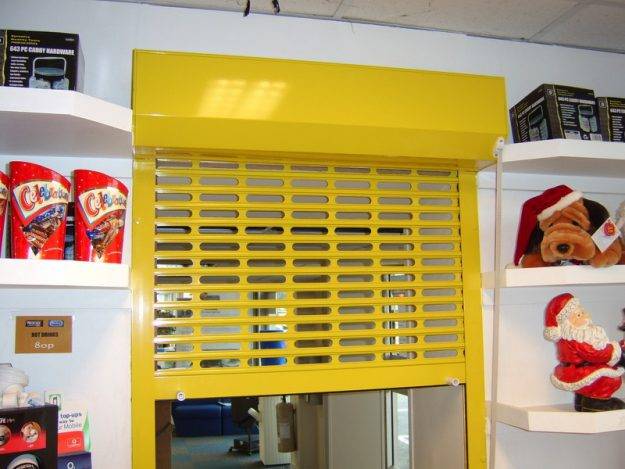

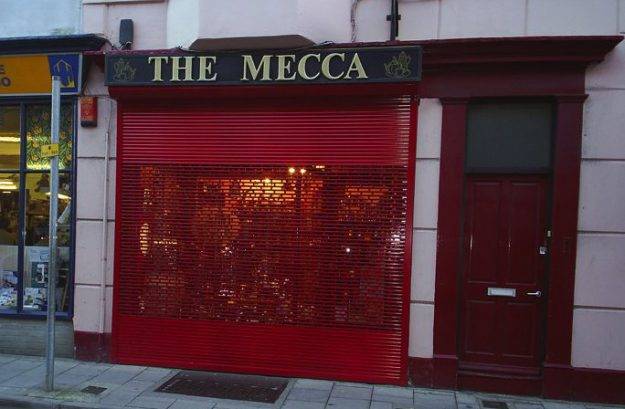

Double-skinned extruded aluminium security roller shutters with 37 mm high slats, available with solid, punched and perforated profiles. The shutters can span up to 4 m in width and an area up to 12 m².
General information
Color | Brown White Other |
Finish | Powder-coated |
Material | Aluminium |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | L20/60 Doors L20/610 Roller shutters/ curtains |
Product range |
Specification data - Roller shutters
Opening sizes | 4000 x 3000 mm.Guidance for specification option: Available up to 4000 x 3000 mm (w x h). Manufacturer guidanceUp to 5000 mm height depending on width. |
Arrangement | Vertical, external face fix.Vertical, internal face fix.Vertical, reveal fix. |
Shutter curtain. | |
Lath material | 9 mm thick aluminium with foam insulating core, 37 mm in height. Bottom slat: Extruded aluminium with an EPDM rubber weather seal. |
Finish and colour | Brown.Guidance for specification option: Standard colour. White.Guidance for specification option: Standard colour. BS.Guidance for specification option: Insert colour requirement. RAL.Guidance for specification option: Insert colour requirement. |
Frame and guides | |
Material | Enclosure: Roll formed aluminium with pressure-moulded aluminium alloy end caps. Guide channels: Extruded aluminium. |
Colour | Brown.Guidance for specification option: Standard colour. White.Guidance for specification option: Standard colour. BS.Guidance for specification option: Insert colour requirement. RAL.Guidance for specification option: Insert colour requirement. |
Operation | |
Mode | Electric.Manual, cord belt.Guidance for specification option: Up to a maximum weight of 20 kg. Manual, rod and crank.Guidance for specification option: Up to a maximum weight of 25 kg. Manual, spring and lock.Guidance for specification option: Up to a maximum weight of 30 kg. |
Accessories | None.Manual override facility.Polycarbonate infills.Guidance for specification option: Available with V37 only. |
Guide channel depth | 25 mm. 53 mm. 60 mm. 68 mm. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 DWG | - | 1 |
 IFC | - | 1 |
Literature
Commercial Security Shutters
