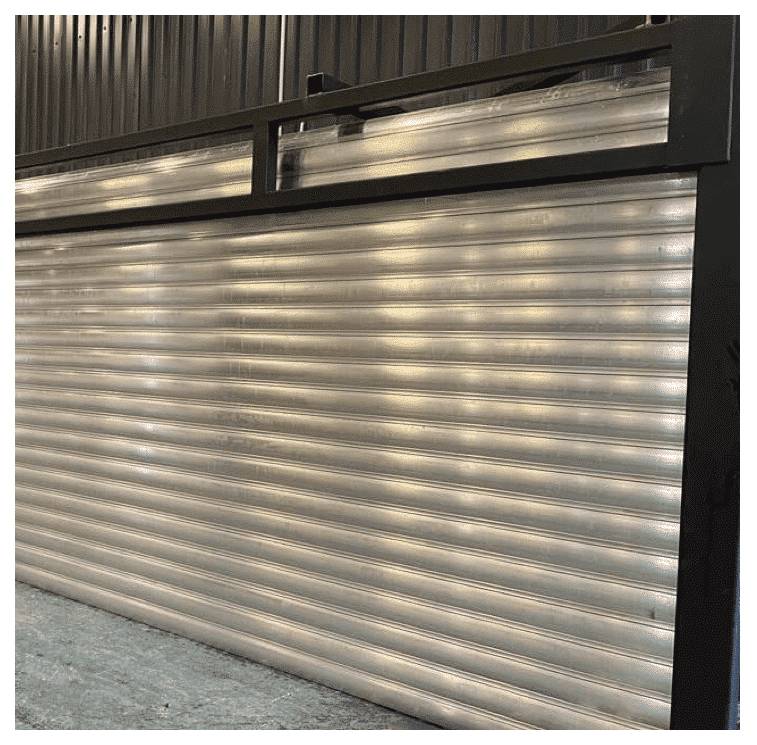

E130 Elite, D10 (SR4) Aluminium Security Shutter

Name: E130 Elite, D10 (SR4) Aluminium Security Shutter
Brand: Roché Systems Ltd
SKU: ccrWGgW71q45jEYD3enJdD

Verified by manufacturer 9 days ago

Roché Systems Ltd

Third party certifications:

CHAS
Certificate type
Constructionline Gold
Certificate type
Secured By Design
Certificate type

LPCB Certified high security shutter. Tested to the latest standard LPS 1175 (issue8) to D10 rating, ideally suited to high security situations, such as national security, banks and public buildings

Jump to:

BOS

03330347967 Website

Application

Suitable for high security commercial, industrial and public applications.

Description

A D10 (SR4) rated aluminium security shutter suitable for high security commercial applications and openings of all sizes up to 90 m². The E130 Elite has been tested by the Loss Prevention Certification Board to the latest LPS 1175 (Issue 8) standard.

This product has an advanced aluminium profile with anti-lift element. The shutter must be face fixed, internally. The E130 Elite is also available to C5 (SR3) or E10 (SR5).

General information

Color	Other Guidance for specification option: Option to powder coat any RAL / BS colour. Consult manufacturer and insert requirements.
Material	Aluminium
Shape	Rectangle
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	One year

Uniclass	Pr_30_59_84_73 Roller shuttersPrimary
CAWS	L20/60 Doors L20/610 Roller shutters/ curtains

Specification data - Roller shutters

Opening sizes	Guidance for specification option: Up to 90 m². 10 000 mm maximum width. Manufacturer guidance Consult literature for box and guide sizes available.
Format	Internal face fit.
Arrangement	Vertical, internal face fix.
Shutter curtain.	-
Lath material	Double-skinned extruded aluminium slat with an additional anti-lift profile to eliminate the need for additional locking systems. Bottom slat: Extruded aluminium bottom slat with solid aluminium defenders.
Profile	105 mm + 25 mm anti slat profile.
Finish and colour	BS. Guidance for specification option: Insert colour requirement. RAL. Guidance for specification option: Insert colour requirement. Manufacturer guidance The E130 can be powder coated to any RAL / BS colour reference.
Frame and guides	-
Material	Extruded aluminium guide channels with rubber weather seal. Manufacturer guidance Steel casing available on request. Not provided as standard.
Colour	BS. Guidance for specification option: Insert colour requirement. RAL. Guidance for specification option: Insert colour requirement. Manufacturer guidance The E130 can be powder coated to any RAL / BS colour reference.
Operation	-
Mode	Tubular Motor: NRG Econom tubular motor with internal rocker or external key switch as standard with safety brake as appropriate to comply with legislation. Guidance for specification option: Manual override facility and crank handle as required. Outboard Motor: GfA single or three phase motor with integrated safety brake, chain manual override and push button control. Manufacturer guidance Both tubular and outboard motors have numerous control option variants such as group, remote or mobile phone activation.
Control	- Manufacturer guidance Numerous control option variants such as group, remote or mobile phone activation are available.
Accessories	None. Manual override facility.

Weight	30 kg/m².

Sustainability data

Contains Red List materials	No
Country of product manufacture	United Kingdom
Recyclability	90
Recycled content As defined in clause 7.8 of BS EN ISO 14021	90 %
