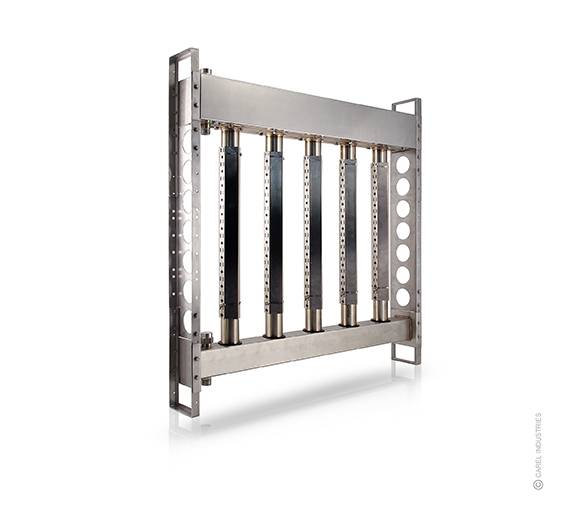

USAM - UltimateSAM - Steam Distributor Range

A high-efficiency pressurized or atmospheric pressure steam distributor. It saves energy by minimizing condensate formation and the amount of heat dispersed in the AHU or duct. Suitable for steam from both pressurized circuits and humidifiers.

Features and benefits:

• Fully aseptic, high-precision humidification.
• Minimum absorption distance (below 0.2 m).
• Suitable for steam flow rates from 15 kg/h to 1110 kg/h and pressures from 0.01 barg to 4 barg.
• Fully AISI 304 stainless steel structure.
• Plastic nozzles PPS (Ryton, up to 220°C).
• All gaskets suitable for high temperatures if not in contact with steam.
• EPDM gaskets if in contact with steam.
• Thermal insulation of the manifolds and uprights reduces the condensate formation up to the 30%.

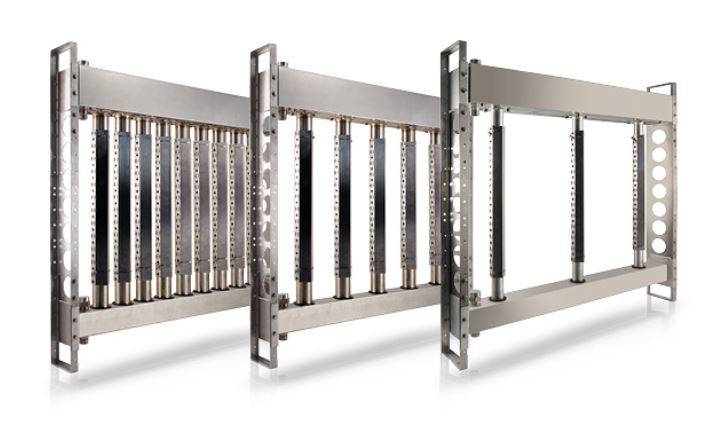

Models:

-SA0 - (Single-pipe): Version made by AISI 304, air gap insulation, condensate drain in the manifold and at the end of the upright, pipe diameter Ø45 mm.

-SAB - (Multi-pipe compact): Version made by AISI 304, air gap insulation, steam inlet kit and condensate drain kit already included as standard in the product, condensate separator, shorter pipes spaced 102 mm apart for small air ducts, pipe diameter Ø45 mm.

-SAB / SAT - (Multi-pipe): Support frame, uprights and horizontal manifold made by AISI 304, thermally insulated manifold, air gap insulation, condensate drain kit, six types of uprights.
