Description

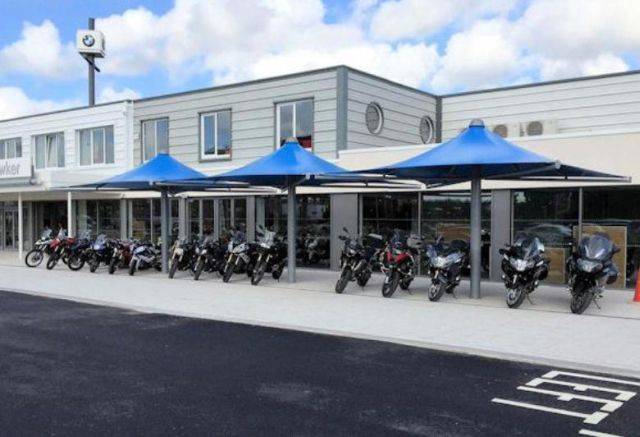

Canopy constructed from waterproof tensile material providing a permanent tough structure in the shape of an umbrella which is supported by a tubular steel post. The design offers excellent cover from the weather as it can span up to 6 x 6 m. This design is perfectly suited for outdoor seating or dining areas and looks stunning in natural and urban landscapes.

General information
Color

www.ablecanopies.co.uk/Tensile-Fabric-Colour-Options.html

WarrantyDescription

5 years (fabric)

Uniclass 2015 Open sided shelters (Pr_20_65_78_58)
Specification data
Product Reference

Ulverston Umbrella

Size -
Width

Insert requirement, available up to 6 m.

Length

Insert requirement, available up to 6 m.

Height

Insert requirement.

Roof fabric colour

White

Standard.

Special order

Insert requirement, 39 additional colours available.

Framework -
Finish

Galvanized

Galvanized and powder coated

Powder coated

Standard.

Colour

Not applicable

For galvanized only.

RAL 3000 Flame Red

RAL 5005 Signal Blue

RAL 5010 Gentian Blue

RAL 5012 Light Blue

RAL 6001 Emerald Green

RAL 6005 Moss Green

RAL 7001 Silver Grey

RAL 7016 Anthracite Grey

RAL 8007 Fawn Brown

RAL 9003 Signal White

Standard.

RAL 9005 Jet Black

RAL 9006 White Aluminium

Special order

Insert requirement.

Accessories

None

Post pads

Standard product features

Roof fabric:

590 g/m² waterproof tensile fabric, 252/250 daN/5 cm strength.

Framework:

  • Main frame: Constructed from 168 x 6 mm steel tube section.
  • Roof bars: Constructed from 78 x 4 mm steel tube section.

Weather resistance:

The tensile fabric is UV stabilized offering the highest UV protection. It blocks up to 99% of the sun's harmful UV rays. It will not absorb moisture and is designed to perform well in all normal weather conditions.

Guarantee:

The tensile fabric offers a guarantee of up to five years and the framework has a life expectancy of 25 years.

Fire performance:

Tensile fabric tested to BS 7837.

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 4 2.1
Revit
- 4 2.1
