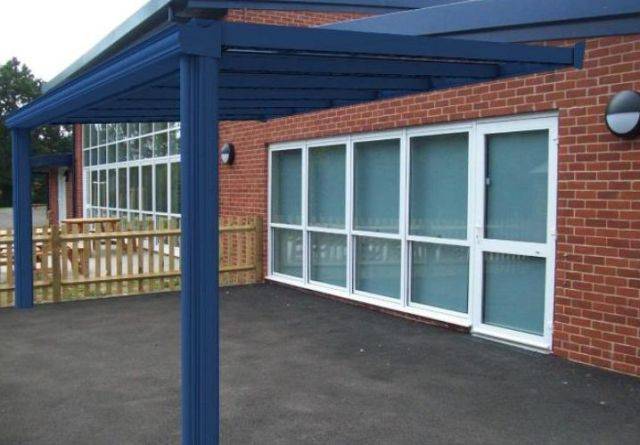

Ashton Canopy

Name: Ashton Canopy
Brand: Able Canopies Ltd
SKU: 3TcYkeNXsizvY1b54A8dTe

Verified by manufacturer 4 months ago

Able Canopies Ltd

Third party certifications:

Health & Safety Accreditation
Certificate type
BS EN 1090-1
Certificate type
Constructionline
Certificate type
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type

An aluminium frame canopy covered with glass roof panels. Can be either wall mounted or free standing using a rear post support.

Jump to:

BOS

0800 389 9072 Website

Application

A high quality, fully aluminium system (expect when used with rear goal post) with a big span of 6m between front posts and a maximum projection of 6m.

The Ashton is the ideal solution for those that require a large span between posts (6m) and projection in a commercial settings, such as covering loading bays or where protection from the elements is required, such as walkways between buildings. it is also ideal or creating outdoor waiting or dining areas within hotels and residential settings. It is perfect for the leisure and hospitality sector due to its high-class appearance and ability to cover large areas.

You can add sides and lockable sliding glass doors creating glass room which can be used to extend dining spaces all year round, hold leisure activities outside such as exercise yoga and relaxation classes. It would be perfect for use as an enclosed garden room within care homes and hospitals for patients in rehabilitation who can go to relax, unwind and recover. Heating and lighting can also be added to make use during the colder months.

Description

Aluminium framed canopy with an unlimited length and a maximum projection of 6 metres. Supplied with a 10 year guarantee. The Ashton is the ideal solution for those that require a large span and projection within a commercial setting. it is ideal for many uses such as an outdoor dining canopy, a relaxation canopy with hotels and residential settings. It is perfect for the leisure and hospitality sector due to its high-class appearance and ability to cover large areas with a big span of up to 6m and unlimited length.

The Ashton is supplied powder coated in Anthracite Grey (RAL 7016) as standard, however it can be powder coated to any RAL colour for an additional cost The Ashton has a life expectancy of 25 years.

The ornate profiles create a stylish appearance and all cabling for additional extras such as heating and lighting can be hidden from view within the profiles so not to disrupt the aesthetics of this attractive canopy.

The roof is glazed with 8mm toughened glass which is extremely durable and class 0 fire rated.

If you would like to enclose your wall mounted glass canopy, you can do so with glass side panels. Sliding lockable doors can also be added to transform the Ashton into a glass room which can be used to extend you dining space all year round, hold leisure activities outside such as exercise, yoga and relaxation classes. It would also be perfect for use a an enclosed garden room within care homes and hospitals for patients that are in rehabilitation, providing a place where they can relax, unwind and recover. Infrared heating and lighting can be incorporated as well,

Wall plate:

Extruded aluminium profile which fixes to the wall or steel goal post.

Weather resistance:

During the manufacture of the polycarbonate panels, a layer of UV absorber is co-extruded on both sides which forms a barrier, providing high UV protection from the sun.

Fire performance:

Polycarbonate roof panels: Tested to most European standards; Class 1 to BS 476-7 and B-S1, d0 to BS EN 13501.
Glass roof panels: Class 0.

General information

Color	Clear Guidance for specification option: Clear glass Polycarbonate available in clear or Opal Beige Black Blue Brown Cream Green Grey Ivory Orange Pink Purple Red White Yellow Other Show more Manufacturer guidance Anthracite Grey - RAL 7016 - standard Other RAL colours available at additional cost.
Finish	Powder-coated Guidance for specification option: Anthracite Grey - RAL 7016 standard Any other RAL at additional cost Galvanized
Material	Aluminium Steel Guidance for specification option: Rear steel goal post - powdercoated and thermal galvanised to any RAL colour Glass Manufacturer guidance Roof - 5mm solid polycarbonate or 16mm structured polycarbonate
Shape	Rectangle Square
Length	Bespoke Guidance for specification option: Unlimited.
Width	Bespoke Guidance for specification option: Maximum.
Height	Bespoke Guidance for specification option: Insert requirement.
Warranty description	25 year Guidance for specification option: Life expectancy of 25 years.

Uniclass	Pr_20_65_78_58 Open-sided sheltersPrimary
CAWS	B91/330 Canopy

Product range	Canopies

Specification data - Open-sided shelters

Shelter description	Wall mounted canopy.
Dimensions	-
Plan size	[-]. Guidance for specification option: Insert requirement, available in unlimited lengths and projection up to 6 m. Maximum 6 m span between posts at any projection.
Height	[-]. Guidance for specification option: Insert requirement.
Frame	-
Material	Aluminium. Guidance for specification option: T6 grade structural, 150 x 150 x 2.5 mm box section.
Finish	Powder coated.
Colour	RAL 3000 Flame Red. RAL 5005 Signal Blue. RAL 5010 Gentian Blue. RAL 5012 Light Blue. RAL 6001 Emerald Green. RAL 6005 Moss Green. RAL 7001 Silver Grey. RAL 7016 Anthracite Grey. RAL 8007 Fawn Brown. RAL 9003 Signal White. Guidance for specification option: Standard. RAL 9005 Jet Black. RAL 9006 White Aluminium. Special order. Guidance for specification option: Insert requirement.
Roof covering	Toughened glass, 8 mm thick.
Rainwater drainage	Integral aluminium guttering.
Accessories	None. Cladding profiles. Guidance for specification option: Ornate clip-in aluminium cladding profiles used to conceal power/ audio/ data cables or rainwater downpipes. Glass sides and doors. Infrared heaters. Infrared lighting. Post pads. Safety barriers. Seating. Side fills. Signage.

Colour	Not applicable. Guidance for specification option: For toughened glass. Clear. Guidance for specification option: For polycarbonate only, 64% light transmission. Opal. Guidance for specification option: For polycarbonate only, 33% light transmission.
