Coniston Canopy – Includes Internal and External Corners - Canopy

Verified by manufacturer 10 days ago

Able Canopies Ltd Third party certifications:
  • Health & Safety Accreditation

    Health & Safety Accreditation

    Certificate type

  • BS EN 1090-1

    BS EN 1090-1

    Certificate type

  • Constructionline

    Constructionline

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

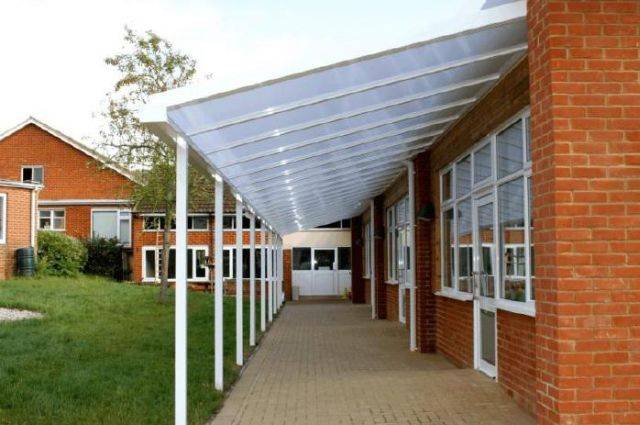

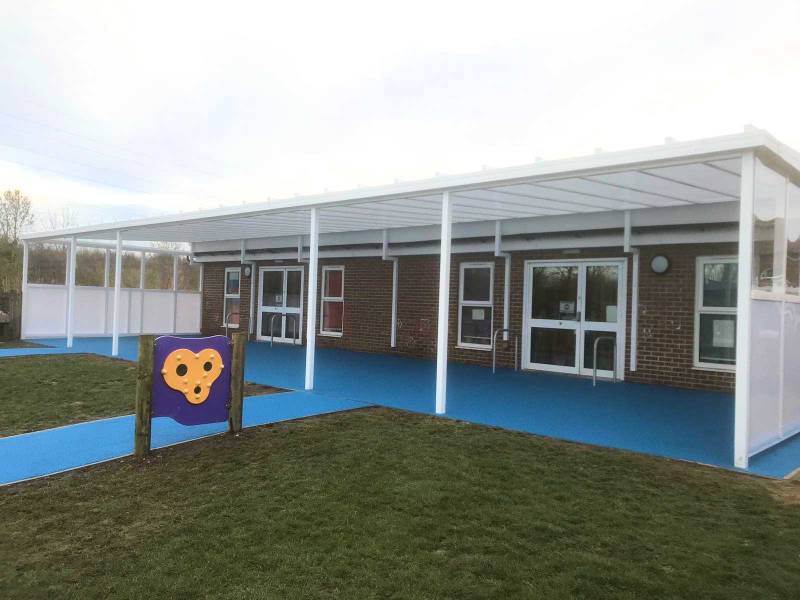

A versatile wall mounted or freestanding canopy that can be adapted to suit the shape of the building that it is installed to.

Jump to:
BOS
0800 389 9072 Website

Application

Designed for use within commercial settings, hospitals, restaurants and factories. Suitable for early years' settings and primary schools as it allows year-round free-flow play and outdoor learning.

Description

An aluminium framed canopy, with a 35 mm structured polycarbonate roof system, which creates shelter from rain and snow and shade from the sun with high UV protection; it also helps to keep the building's interior cool by shading windows and deterring unwanted heat and glare indoors during the bright or sunny weather.


As it is a wall mounted canopy, it offers uninterrupted cover from inside to outside with an unlimited length and a max. projection of 6 metres. The product's life expectancy is 25 years.


Wall plate:

Extruded aluminium profile which fixes to the wall or steel bracket.


Weather resistance:

During the manufacture of the polycarbonate panels, a layer of UV absorber is co-extruded on both sides which forms a barrier, providing high UV protection from the sun.


Fire performance:

The polycarbonate sheets have been tested to most European standards; Class 1 to BS 476-7 and B-S1, d0 to BS EN 13501.

General information

Color

Beige

Black

Blue

Brown

Cream

Show more

Manufacturer guidance

Standard Colour:

  • RAL9910 - Hipca White


Also available in any RAL Colour

Finish

Powder-coated

Material

Aluminium

Polycarbonate

Shape

Square

Rectangle

Length

Bespoke

Width

Bespoke

Guidance for specification option:

Maximum.

Height

Bespoke

Guidance for specification option:

Insert requirement, minimum height to underside of gutter is 2.1 m with minimum roof pitch at 2.5°.

Warranty description

Ten year

Uniclass

Pr_20_65_78_58 Open-sided sheltersPrimary

CAWS

B91/330 Canopy

Product range

Canopies

Specification data - Open-sided shelters

Description

Aluminium framed canopy, with a 35 mm structured polycarbonate roof system.

Manufacturer

Able Canopies Ltd.

Shelter description

Wall mounted canopy.

Dimensions

-

Plan size

[-].

Guidance for specification option:

Insert requirement, projection available up to 6 m, variable roof pitch angle 2.5–44°. Length available unlimited, maximum 3.5 m span between posts for projections up to 3 m, reducing to 3 m for projections greater than 3 m.

Height

[-].

Guidance for specification option:

Insert requirement, minimum height to underside of gutter is 2.1 m with minimum roof pitch at 2.5°.

Frame

-

Material

Aluminium.

Guidance for specification option:

80 x 80 x 4 mm box section.

Finish

Powder coated.

Colour

RAL 3000 Flame Red.

RAL 5005 Signal Blue.

RAL 5010 Gentian Blue.

RAL 5012 Light Blue.

RAL 6001 Emerald Green.

RAL 6005 Moss Green.

RAL 7001 Silver Grey.

RAL 7016 Anthracite Grey.

RAL 8007 Fawn Brown.

RAL 9003 Signal White.

Guidance for specification option:

Standard.

RAL 9005 Jet Black.

RAL 9006 White Aluminium.

Special order.

Guidance for specification option:

Insert requirement.

Roof covering

35 mm thick structured polycarbonate.

Guidance for specification option:

UV protection, 1.2 W/mK.

Rainwater drainage

Integral aluminium guttering.

Accessories

None.

Post pads.

Rainbow package.

Safety barriers.

Seating.

Side fills.

Signage.

Victorian upgrade.

Guidance for specification option:

Victorian style post coverings.

Colour

Clear.

Guidance for specification option:

64% light transmission.

Opal.

Guidance for specification option:

33% light transmission.

Corners

Not required.

External corner hip.

Internal corner valley.

Flashing

Not required.

Flashband.

Lead folded aluminium (sectional).

Ubiflex.

Sustainability data

Contains Red List materials

No

Country of material origin

Spain

Country of product manufacture

United Kingdom

Material

Aluminium

Polycarbonate

Recyclability

50%
