Able Shade Sail - UV Protection Sail with Steel Posts

Verified by manufacturer 3 months ago

Able Canopies Ltd Third party certifications:
  • Constructionline

    Constructionline

    Certificate type

  • Health & Safety Accreditation

    Health & Safety Accreditation

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

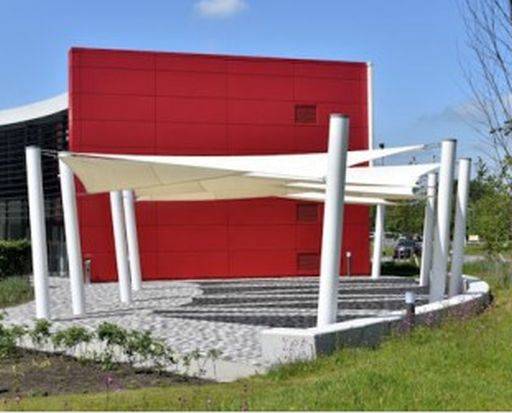

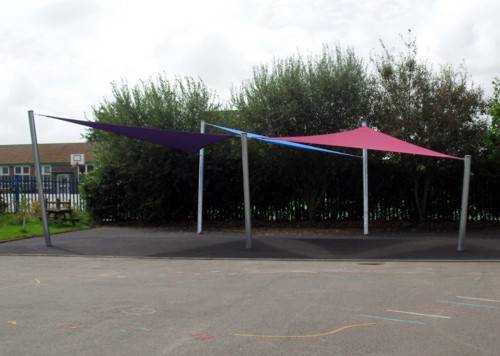

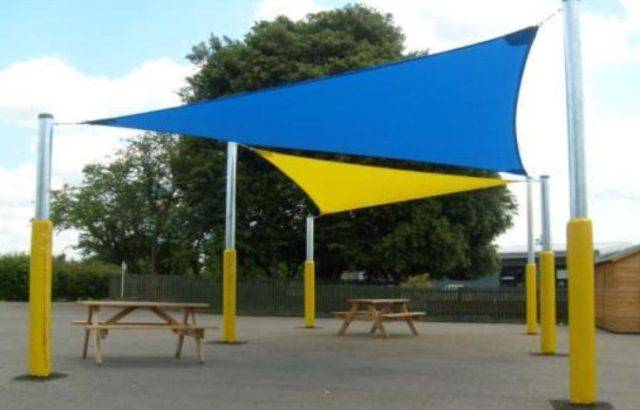

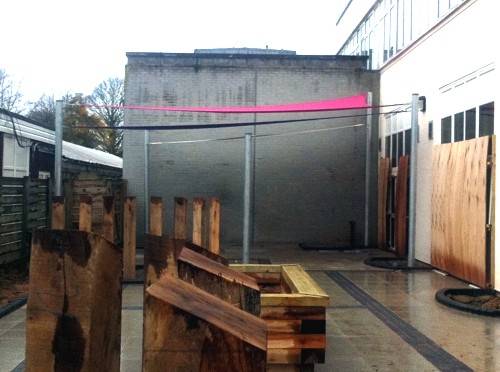

A high quality UV protection sail that uses knitted polyethylene fabric and supported by strong galvanised steel posts.

Jump to:
BOS
0800 389 9072 Website

Application

Suitable for use as an external shade sail canopy within education, hospitality, leisure and commercial sectors. Creating visually stunning aesthetics whilst enhancing the comfort and safety of customers and staff.

Description

Versatile, practical and easily maintained, fabric sail canopy offering extremely high levels of UV protection combined with strength and durability. The fabric is available in 15 contemporary colours, allowing you to create colourful designs to complement or contrast with your surroundings.


Weather resistance:

The shade sail material is UV stabilized offering the highest UV protection. It blocks up to 99% of the sun's harmful UV rays.


Fire performance:

Shade sails have an extremely high ignition point, low flammability and are treated with a fire retardant during manufacture to give a temperature range from -30 to +75°C.


Sail material:

High strength fabric - 340 dqm (350 gsm for dual colours) knitted UV stabilized HDPE which will not rot or absorb moisture.

High tear strength - 194 N in warp and 282 N in weft.


Sail fabric is lock stitched using advanced technology to allow for more air movement and better channelling of cooling breezes. The fabric is 100% lead and Phthalate free for a healthier environment.


The fabric blocks up to 96.5% of UV rays depending on the colour of fabric chosen.

General information

Color

Beige

Black

Blue

Brown

Cream

Show more

Manufacturer guidance

Shade sail material available:

  • Aquatic blue
  • Navy blue
  • Turquoise
  • Royal Purple
  • Deep Ochre
  • Cayenne
  • Cherry red
  • Orange
  • Brown
  • Cedar
  • Desert Sand
  • Yellow
  • Brunswick Green
  • Rivergum
  • Steel Grey
  • Bright Green
  • Black
  • Charcoal
  • Gun Metal
  • Natural
  • Desert Sand
  • White


Dual Colours available (different colour each side)

  • Chameleon
  • Citrus
  • Macaw
  • Sunburst
  • Topaz
  • Capri
  • Maldives
  • Santorini
  • Amazonia
  • Cobblestone
  • Goldrush
  • Savanna

Finish

Galvanized

Material

Fabric

Steel

Length

Bespoke

Guidance for specification option:

Insert requirement.

Width

Bespoke

Guidance for specification option:

Insert requirement.

Height

Bespoke

Guidance for specification option:

Maximum. Insert post height requirement.

Warranty description

Ten year

Guidance for specification option:

Shade sail fabric guarantee against UV degradation and has a life expectancy of 25 years.

Galvanised steel posts - life expectancy of 25 years

Uniclass

Pr_20_65_78_58 Open-sided sheltersPrimary

CAWS

B91/330 Canopy

Product range

Shade Sails

Specification data - Open-sided shelters

Shelter description

Shade sail.

Dimensions

-

Plan size

Guidance for specification option:

Insert requirements.

Height

Guidance for specification option:

Insert post height requirement, available up to 6 m.

Frame

-

Material

Carbon steel posts, 168.3 mm diameter angled back at 10°.

Finish

Galvanized.

Colour

Silver.

Roof covering

Heavy duty, professional grade shade fabric constructed from 340 g/m² UV stabilized PE-HD monofilament and tape yarn.

Guidance for specification option:

Specialized lock stitch knit for more air movement and better channelling of cooling breezeways.


Specify required sail shapes separately below.

Accessories

None.

Anti-climb cones.

Coloured posts.

Posts pads.

Sail fabric colour

Aquatic Blue.

Black.

Brunswick Green.

Cayenne.

Cherry Red.

Show more

Shape

Square.

Triangle.

Rectangle.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

United Kingdom

Material

Fabric

Steel

Recyclability

50%

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

4

IFC
-

4

Third party certifications

Constructionline

Constructionline

Constructionline Gold

Health & Safety Accreditation

Health & Safety Accreditation

ACCLAIM

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO9001

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

ISO45001
