Ultraglaze-NC3 - Insulated Metal-Faced Cladding Panel
Verified by manufacturer 4 months ago
Warringtonfire
Certificate type
A non-combustible insulated aluminium-faced cladding/ architectural panel with 6 mm A1 non-combustible fibre cement board core.
Application
Insulated aluminium-faced cladding panel for use in external cladding and façade systems for applications requiring both fire performance and a high-quality architectural finish.
Description
UltraGlaze-NC3 Panels have been tested at Exova Warrington Fire and have achieved a fire classification of A2 s1 d0 in accordance with EN 13501-1. The faces are aluminium (1.2 mm to 3 mm).
Features and benefits:
- Aluminium facings, 1.2–3 mm, any grade.
- Nine-stage chromate pre-treatment. (Chromate free option available)
- Various polyester powder-coated finishes.
- Insulating core of 6 mm A1 non-combustible fibre cement board.
- One-part moisture-curing polyurethane adhesive, 100% solids, spray-applied.
- Vacuum-bonded panel construction.
- Temperature resistance –40°C to +130°C.
- Fire rating Euroclass A2-s1,d0 to EN 13501-1:2007+A1:2009 (Exova Warrington Test WF417193).
- Core material certified A1 non-combustible to EN 13501-1.
- High fire safety and compliance with stringent building regulations.
- Non-combustible core ensures excellent fire protection.
- Durable aluminium facings with protective powder coating for long-term performance.
- Lightweight construction simplifies handling and installation.
- Resistant to temperature extremes, suitable for exposed façades.
- Reliable bonding ensures panel integrity and structural stability.
General information
Color | Beige Black Blue Brown Green |
Finish | Powder-coated |
Material | Aluminium Fibre cement |
Shape | Rectangle Square Parallelogram Rhombus Trapezium |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year Guidance for specification option: Panel construction: ten years against manufacturing defects with a life expectancy of over 25 years. 25 year Guidance for specification option: Powder-coating: up to 25 years dependent upon location. |
Uniclass | |
CAWS | H43/120 Metal insulating sandwich panel H43/10 Metal insulating sandwich panel |
Specification data - Aluminium insulating sandwich panels
Classification data | |
Panels | Factory-assembled insulating sandwich panels. |
Panel construction | |
Panel external face | |
Material | Aluminium. |
Grade | Manufacturer guidanceAvailable in any grade aluminium. Consult manufacturer and insert requirements. |
Thickness | Manufacturer guidanceInsert requirements between 1.2 to 3 mm. |
Panel internal face | |
Material | Aluminium. |
Grade | Manufacturer guidanceAvailable in any grade aluminium. Consult manufacturer and insert requirements. |
Thickness | Manufacturer guidanceInsert requirements between 1.2 to 3 mm. |
Core insulation | A1 non-combustible fibre cement board. Guidance for specification option: 6 mm thick. |
Panel dimensions | |
Length | Manufacturer guidanceConsult manufacturer and insert requirements. |
Cover width | Manufacturer guidanceConsult manufacturer and insert requirements. |
Thickness | Manufacturer guidanceConsult manufacturer and insert requirements. |
Finish as delivered | |
Outer skin | |
Material | Syntha pulvin polyester powder-coating. Interpon D polyester powder-coating. |
Thickness | Manufacturer guidanceCoating thicknesses vary with manufacturers. Consult manufacturer and insert appropriate μm value. |
Colour | Manufacturer guidanceConsult manufacturer and insert requirements. |
Inner skin | |
Material | Syntha pulvin polyester powder-coating. Interpon D polyester powder-coating. |
Thickness | Manufacturer guidanceCoating thicknesses vary with manufacturers. Consult manufacturer and insert appropriate μm value. |
Colour | Manufacturer guidanceConsult manufacturer and insert requirements. |
Fire performance | |
Reaction to fire | |
Core | To EN13501-1, Class A1. |
Panel external face | To BS EN 13501-1, Class A2-s1, d0. |
Panel internal face | To BS EN 13501-1, Class A2-s1, d0. |
Surface treatment | Nine stage chromate pre-treatment. |
Adhesive | One-part moisture-curing polyurethane. Guidance for specification option: 100% solids, spray-applied. |
Service temperature range | -40℃ to +130℃. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Aluminium Fibre cement |
Expected Life | 25 year |

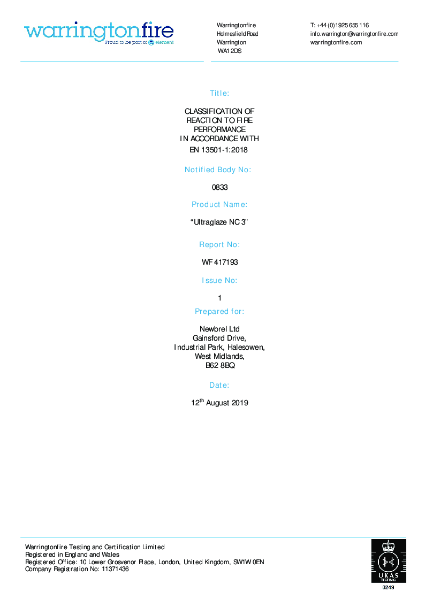

Product certifications
Warringtonfire
Ultraglaze-NC3 - Warringtonfire
Literature
Literature type
UltraGlaze-NC Panels
Wind performance testing of 2 mm Composite panels for Newbrel Limited - N950-25-18939
Wind performance testing of 3 mm Composite panels for Newbrel Limited - N950-25-18940
