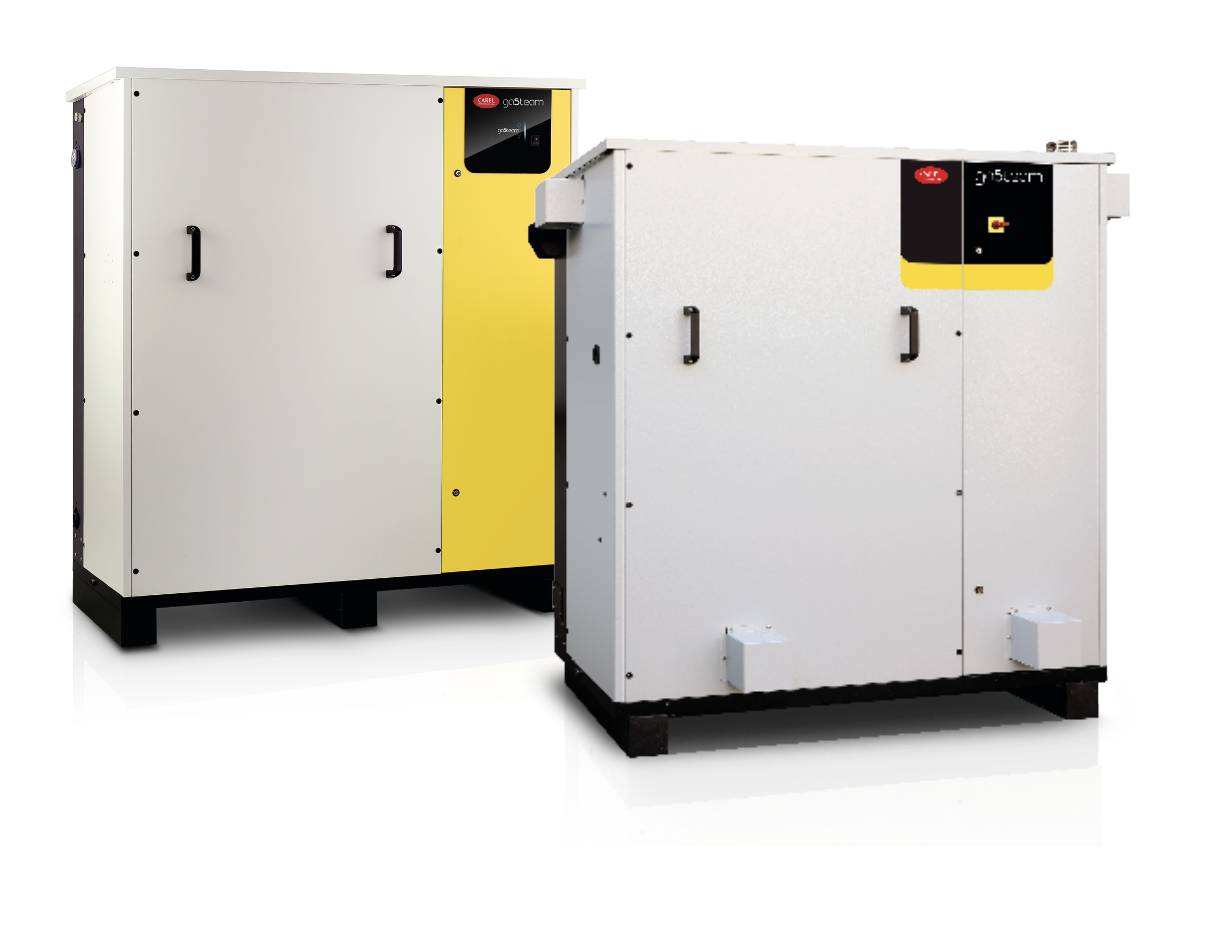

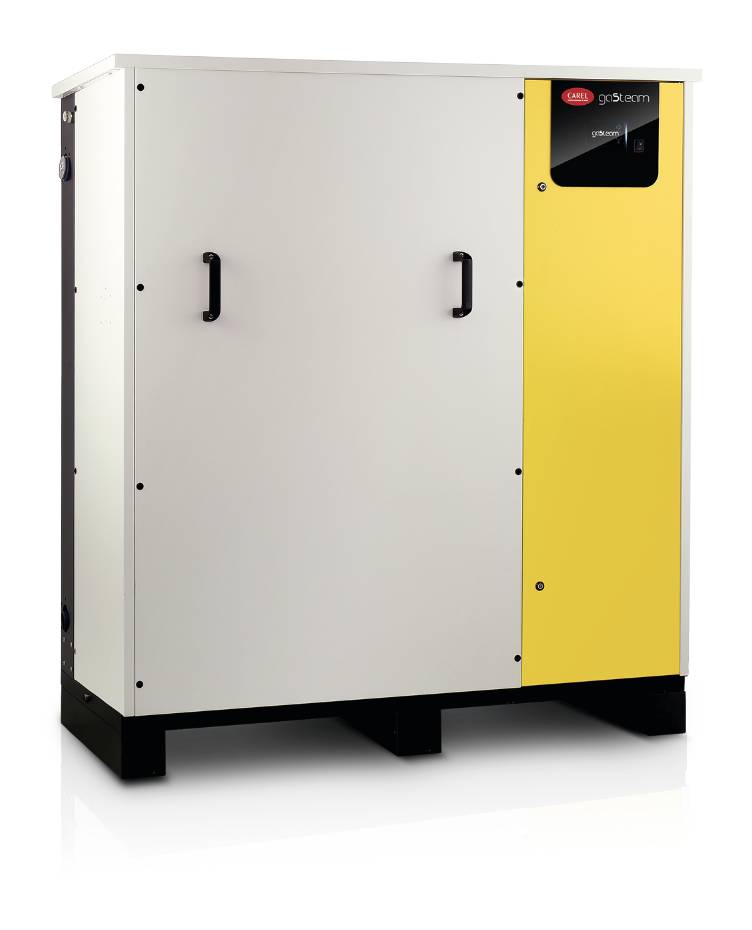

UG - gaSteam - Gas-Fired Steam Humidifier Range

Range of humidifiers running on natural gas, a clean, sustainable and economical source of energy. It produces steam from both drinkable mains water and demineralized water.

Available in the indoor and outdoor versions. The outdoor version, designed to eliminate the risk of having a gas source inside the building and allow it to be used when no equipment room is available, produces steam even in the most critical situations and without the need for outdoor cabinets or compartments.

Features and benefits:

• Exceptional relative humidity control performance (±2%).
• Wide range of models with steam production from 45 to 450 kg/h.
• Outdoor version for critical temperatures and when no equipment room or compartment is available.
• The gaSteam outdoor version has been designed to withstand both high temperatures and especially climates or environments where the temperatures are very low (-40 to 45°C).
• Minimum installation space.
• Built-in remote supervision available.
• Hygiene: If there is no demand for humidity for more than three consecutive days, the water is automatically drained to ensure maximum hygiene.
• Fuel supply: Can be supplied with natural gas or LPG. The gas is selected directly in the pre-mix burner calibration software.

Control features:

• Configuration wizard.
• Advanced control.
• Modulating limit probe.
• Backup and rotation.
• Active room and duct probes: 0–1 V, 0–10 V; 2–10 V; 0–20 mA; 4–20 mA.
• Modulating limit probe with 0–1 V; 0–10 V; 2–10 V; 0–20 mA; 4–20 mA signals.
• Signals: 0–1 V, 0–10 V; 2–10 V; 0–20 mA; 4–20 mA and ON/OFF.
• Wireless probes.
• Alarm relay for lights/ audible signals.
• Built-in USB port.

Features common to both models:

• Raised base to avoid damage due to water stagnation.
• Smallest possible footprint.
• The boiler can be opened and inspected both from the top, with complete and rapid removal of the cover, and from the bottom for cleaning and removing any scale.
• Possibility to access the unit from all sides.
• Flame control: control system connected to the electrical panel that detects the flame and automatically reignites.
• Temperature control system: system for controlling and managing the unit parameters, protecting the outdoor humidifier.
• The exclusive design of the heat exchanger ensures high efficiency (94–96%) and easy maintenance.
• Pre-heating: this function keeps the water in the boiler at a temperature that can be set by the user for an immediate response.
• 4.3” touchscreen display.

Certifications:

CE, ETL (UL998), TÜV and AGA

In addition for the outdoor version: ETL in accordance with IAS standard (No. 12-94) for outdoor installations.
